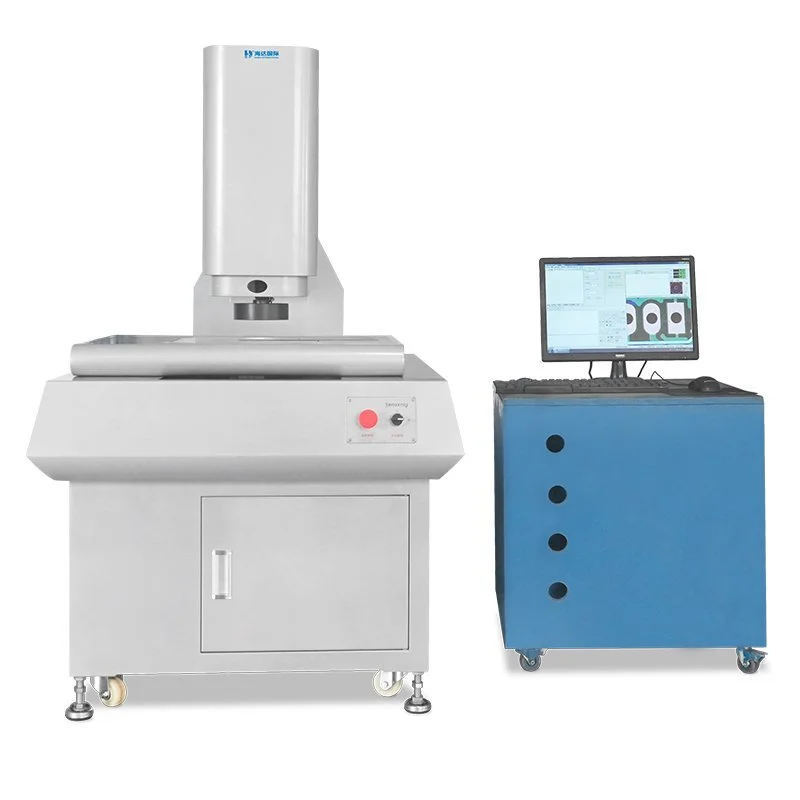

3D CNC Video Optical Measuring Machine 1

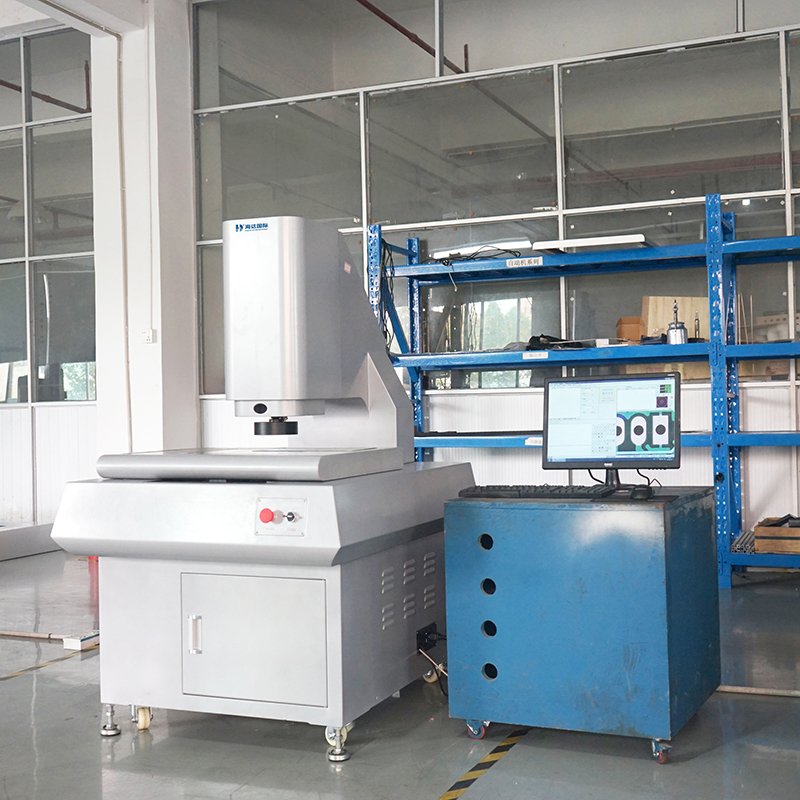

3D CNC Video Optical Measuring Machine 2

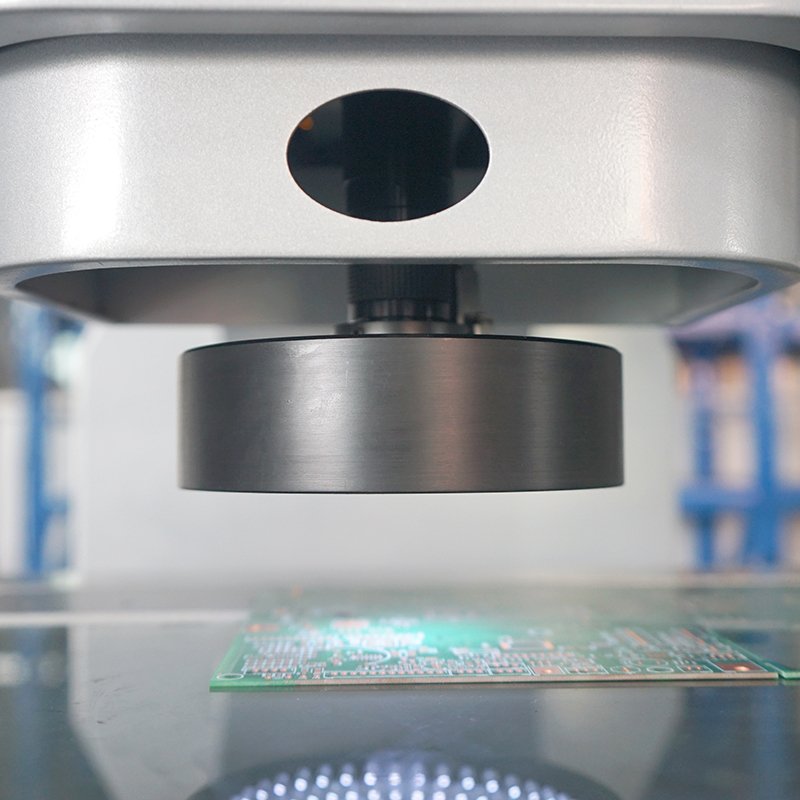

3D CNC Video Optical Measuring Machine 3

3D CNC Video Optical Measuring Machine

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

3D CNC Video Measuring Machine, Optical Measuring Machine

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Haida
Model Number:	VMCP-3020
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time:

15 days after order confirmed

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability:

300 Sets per Month Haida

VMC-P Characteristics:

● Creative modern-shape-design;
● Fashionable auto-painting-craftwork;
● Steady granite base;
● Stable imported V-shape guide;
● Precise metal and glass worktable;
● High-speed 3-axis CNC driven motor;
● Adjustable USB 40-division ring LED illumination;
● Advanced Pomeas 0.7～4.5X Zoom lens;
● Wonderful SONY 1/2`` Color CCD camera;
● Powerful 3D measuring software QuickMeasuring 4.1 version.

VMC-P Specifications:

Mode	Vexus VMC3020P	Vexus VMC3030P	Vexus VMC4030P	Vexus VMC5030P
Order#	526-301	526-331	526-401	526-501
Metal table size	450x350mm	450x450mm	550x450mm	650x450mm
Glass table size	350x250mm	350x350mm	450x350mm	550x350mm
Travel: X,Y	300x200mm	300x300mm	400x300mm	500x300mm
Z-axis Travel	200mm	200mm	200mm	200mm
Resolution	0.0005mm	0.0005mm	0.0005mm	0.0005mm
Renishaw touch probe	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)
X,Y-axis accuracy	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um
Measuring software	QM4.2	QM4.2	QM4.2	QM4.2
Nte weight	300kg	320kg	460kg	540kg
Dimension(mm)	700x600x900	760x600x900	950x590x1000	950x700x1100

VMC-P Standard Delivery:

Standard Delivery	Order#	Standard Delivery	Order#	Standard Delivery	Order#
Measuring Software	QM4.2	CCD Camera MC3	484-123	Pomeas detent zoom lens	421-101
Calibration Block	581-801	Capture Card 7130	527-130	LED Lightsource	425-400
Scale Transfer U3	564-301	Renishaw Probe MCP-K2	581-721	Dell PC System

VMC-P Optional Accessories:

Optional Accessories	Order#	Optional Accessories	Order#	Optional Accessories	Order#
Renishaw Probe MCP-K1	581-711	Pomeas motor zoom lens	421-001	Operation Joystick	581-542
Renishaw Probe MCP-K3	581-731	Pomeas Coaxial zoom lens	421*001	Working Cupboard ST03	581-631

High Precision Image Measuring Instrument

3D CNC Video Optical Measuring Machine 6

The usage:

Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.
● Graph function key is black.
● Graph constructive key is red.
● Visual tool function key is black and green.

The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
