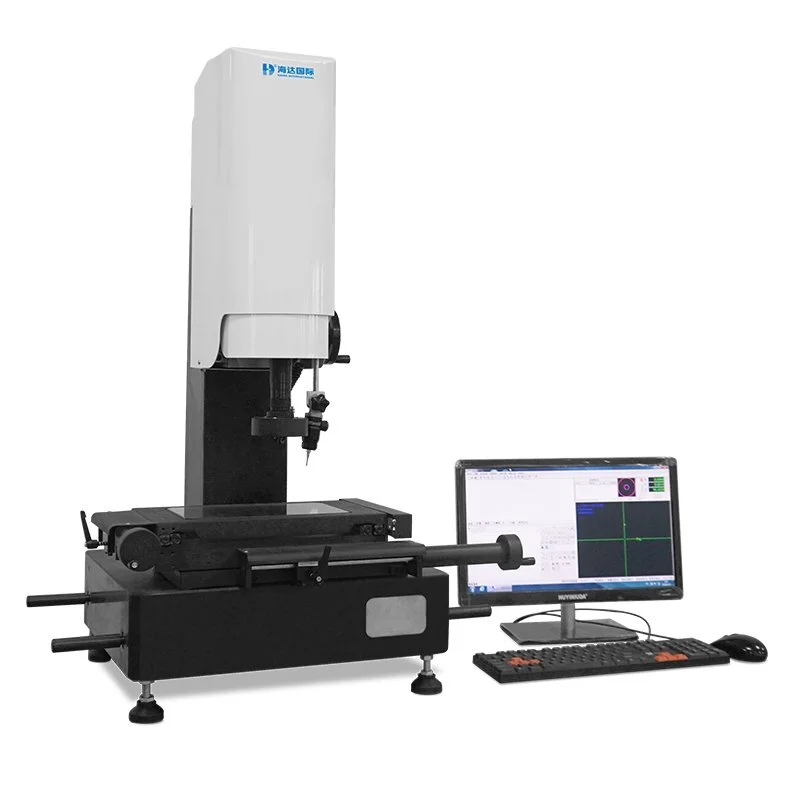

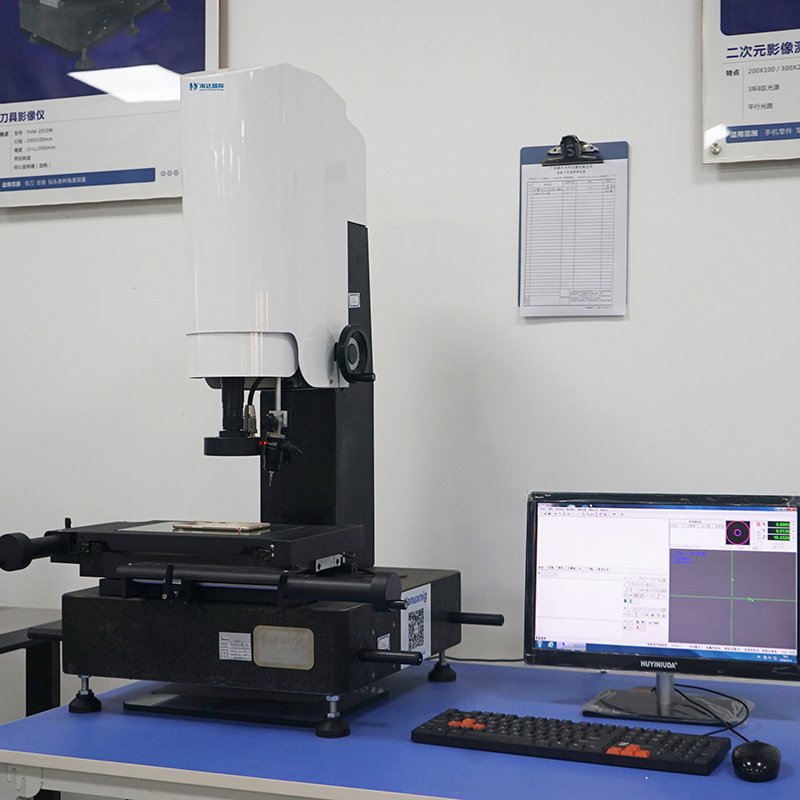

High-speed 3-axis CNC driven motor video measuring machine

video measuring machine is based on the CCD digital image, based on the spatial geometry based on the software module operation, and instantly get the desired results; and generate graphics on the screen for the operator to control the image, which can intuitive To-earth resolution of the measurement results.

VMC-P Characteristics:

● Creative modern-shape-design;
● Fashionable auto-painting-craftwork;
● Steady granite base;
● Stable imported V-shape guide;
● Precise metal and glass worktable;
● High-speed 3-axis CNC driven motor;

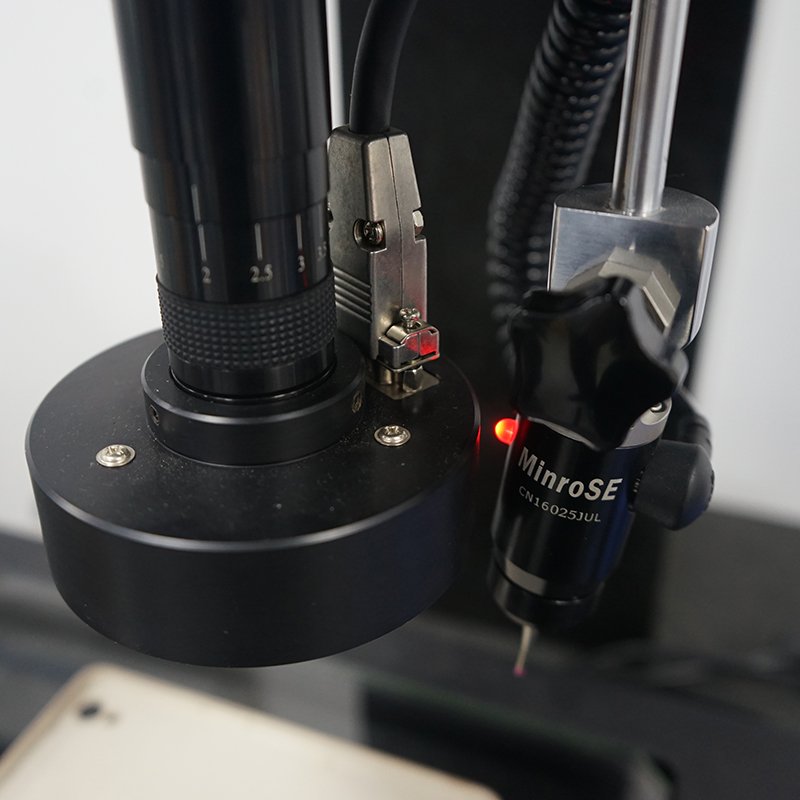

● Adjustable USB 40-division ring LED illumination;
● Advanced Pomeas 0.7～4.5X Zoom lens;
● Wonderful SONY 1/2`` Color CCD camera;
● Powerful 3D measuring software QuickMeasuring 4.1 version.

VMC-P Specifications:

Mode	Vexus VMC3020P	Vexus VMC3030P	Vexus VMC4030P	Vexus VMC5030P
Order#	526-301	526-331	526-401	526-501
Metal table size	450x350mm	450x450mm	550x450mm	650x450mm
Glass table size	350x250mm	350x350mm	450x350mm	550x350mm
Travel: X,Y	300x200mm	300x300mm	400x300mm	500x300mm
Z-axis Travel	200mm	200mm	200mm	200mm
Resolution	0.0005mm	0.0005mm	0.0005mm	0.0005mm
Renishaw touch probe	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)
X,Y-axis accuracy	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um
Measuring software	QM4.2	QM4.2	QM4.2	QM4.2
Nte weight	300kg	320kg	460kg	540kg
Dimension(mm)	700x600x900	760x600x900	950x590x1000	950x700x1100

VMC-P Standard Delivery:

Standard Delivery	Order#	Standard Delivery	Order#	Standard Delivery	Order#
Measuring Software	QM4.2	CCD Camera MC3	484-123	Pomeas detent zoom lens	421-101
Calibration Block	581-801	Capture Card 7130	527-130	LED Lightsource	425-400
Scale Transfer U3	564-301	Renishaw Probe MCP-K2	581-721	Dell PC System

VMC-P Optional Accessories:

Optional Accessories	Order#	Optional Accessories	Order#	Optional Accessories	Order#
Renishaw Probe MCP-K1	581-711	Pomeas motor zoom lens	421-001	Operation Joystick	581-542
Renishaw Probe MCP-K3	581-731	Pomeas Coaxial zoom lens	421*001	Working Cupboard ST03	581-631

Instrument characteristics

Using color CCD camera;
A zoom objective lens and a cross line generator as a measurement aiming system;
From the two-dimensional flat table, grating and data boxes composed of digital measurement and data processing system;
The instrument has a variety of data processing, display, input and output functions, especially the workpiece is placed very positive function;
With the computer connection, the use of specialized measurement software can measure the graphics processing
