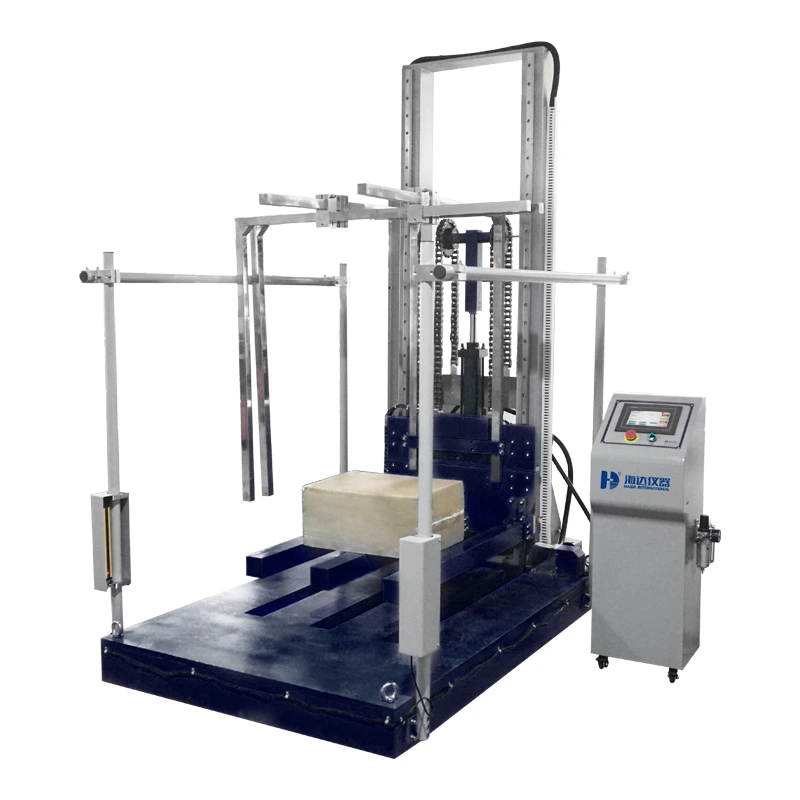

Paper Packaging Zero Drop Test Machine
Applications:
Zero Drop Tester is mainly used to evaluate the damage by drop impact on the package during actual transportation, loading and unloading, and to assess the impact strength of the package and the rationality of the package design during the transportation process., especially for drop test of larger packages.
HD-A520-3 Drop Tester is mainly used to test angles, faces and corners of package.
This machine can freely set the drop height, which can make the sample fall freely instantly.
![HD-A520-3 Paper Packaging Zero Drop Test Machine1 5]()
Loading
Simulate the degree of drop impact during loading
![HD-A520-3 Paper Packaging Zero Drop Test Machine1 6]()
Transport
Simulating the effect of falling impact in the process of automobile transportation
![HD-A520-3 Paper Packaging Zero Drop Test Machine1 7]()
Handling
Simulating the impact strength of the package in the process of handling
Design Standatd:
ISTA, ISO 2248-1985, GBT 4857.5-92
Packaging Dimensions: (WxDxH) 2460*1620*2150mm
Power supply source: Three-phase, 380V±10%, 50/60Hz (can be appointed)
Gross Weight: 1440kg
![HD-A520-3 Paper Packaging Zero Drop Test Machine1 8]()
Hardware features
1. The whole is composed of thickened square pass, channel steel and solid steel to avoid impact displacement during the test process and ensure the stability of the machine;
2. The appearance of the machine adopts the paint spraying process, with high anti-rust ability and beautiful appearance;
3. The load-bearing E-shaped bracket is strong, up to 500kg;
4.Use the cable displacement encoder to feed back the height in real time to ensure the accuracy of the data; and using hydraulic cylinder and air cylinder, with high efficiency;
5. After the E-shaped bracket of the load falls to the bottom plate, there is an anti-secondary impact impact device on the bottom plate to ensure the accuracy of the data.
6. Data indicators: load ≤500kg, drop height 0~1000mm
Software Features
1. Adopt touch screen PLC program control, easy to operate;
2. Intelligent design such as limit protection, overload protection and automatic return to ensure safe operation;
3. Abnormal fault alarm prompt to ensure safe operation.
Item | Description |
Sample max. load | 500KG |
Sampl type | Applicable to all kinds of packaging materials/ refrigerators/ tables and chairs/cases/etc |
Control mode | Touch Screen |
Max.sample size for face | 1200*1200*1200mm (L*W*H) |
Max.sample size for Edge&Corner | 800*800*800mm (L*W*H) |
Drop height | 0 -1000mm (Adjustable) |
Test speed | 2m/min |
E-shaped bracket interval | 220mm |
Drop test | Corners, edges , faces of sample |
Drive mode | Hydraulic cylinder and Air cylinder |
Hydraulic unit combination | 1.5kW (2HP) 40L fuel tank |
Protection device | Induction type protection device |
Panel material | 45# steel, solid steel plate |
Arm material | 45# steel |
Operate mode | Circuit board control |
Drop method | Electromagnetic and pneumatic comprehensive support |
Package Weight | 1380KG |
Power | Three- Phase, AC380V, 50/60Hz,1.6KW |
Outside dimension (L*W*H) | 2300*1490*1950mm |
Air source | ≥0.6MPa (User-supplied) |
Oil source | 40L (User-supplied) |
