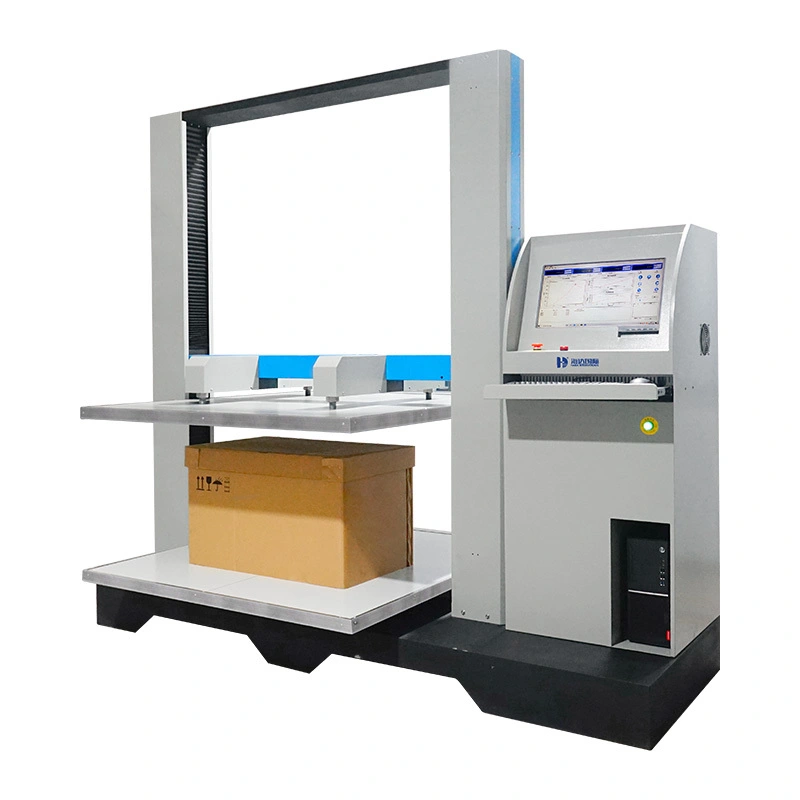

Package Box Compression Tester
Applications:
Box Compression Tester is specialized for testing the compression performance of cartons. It is suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.
![Package Box Compression Tester 7]()
![Package Box Compression Tester 8]()
![Package Box Compression Tester 9]()
![Package Box Compression Tester 10]()
![Package Box Compression Tester 11]()
![Package Box Compression Tester 12]()
Design Standard:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
1. Clear software interface with obvious icons, can real-time display of each test data and can monitor the test process at any time
2. Multi-purpose - customer can choose compression test or stacking test as per their requirements
3. Double Ball guide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency. Low failure, long life and low noise
4.Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault prompts to ensure the safety of users' operations
5. Chinese-English bilingual test system to meet more needs;
Model | HD-A505S-1200 | HD-A505S-1500 |
Capacity | 20kN | 50kN |
Test Space (L*W*H) | 1000*1200*1500 mm | 1300*1500*1500 mm |
Resolution | 1/250,000 | 1/250,000 |
Power | AC 220V, 50 Hz, 1.5kW | AC 220V, 50 Hz, 1.5kW |
Item | Description |
Max. Force | 5000kg(50KN) |
Load cell | 4 load cell for highest accuracy |
Control system | Windows 10, RS-232 interface |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Load cell Resolution | 1/250,000 |
Load Precision | within ±0.5% |
Effective test area | 1300*1500*1500mm |
Test speed | 0.01~200mm/min |
Software | Mtest HD-002-A(Independent R&D) |
Data display | Load, displacement, speed, loading rate and elapsed time |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
This instrument can make compression tests of packages (boxes) or packing and determine their piling up resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).
The Compression Testers can operate in five ways:
1.Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates
2.Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates
3.Maximum load: test the maximum load of various corrugated cartons and beehive crates
4.Stacking test: stack test of various corrugated cartons and beehive crates
5.Cyclic test: dynamic strain according to strength & stroke
