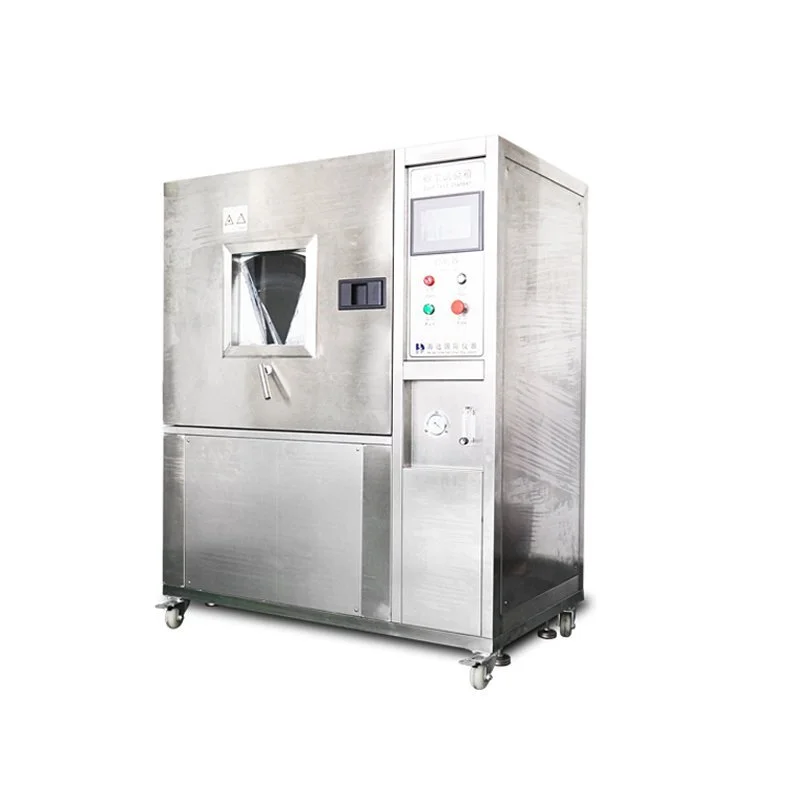

car seat belt dust proof test chamber
car seat belt dust proof test chamber
product description:
car seat belt dust proof test chamber can simulate a sand or dust environment for car safe belt which need to detect dust performance as a QC / QA ways.this type dust test chamber has a large inner chamber size(1000*1000*1000mm). in addition to the spacious space to meet the different types of seat belts can also be used to detect dustproof performance of other auto parts products.
Standard Features：
|
Item |
Specification |
|
Inner chamber size (L*W*H) |
1000*1000*1000mm |
|
External chamber size (L*W*H) |
1200*1650*1900mm |
|
Packaging dimensions (L*W*H) |
1500*1850*2100mm |
|
Testing time |
0.1s～999hr, adjustable |
|
Dust concentration |
2kg/m3~5kg/m3, should be replaced in every 20 tests |
|
Dust type |
Powdered cement, talcum powder |
|
Blower |
Centrifugal fan |
|
Internal chamber material |
SUS#304 stainless steel |
|
External chamber material |
Stainless steel |
|
Door material |
tempering glass |
|
Controller |
PLC controller, touch screen a. Blowing dust time (Stop/Blow) h/m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~ 999h99m99s d. Specimen opening: off – on - off |
|
Power supply |
single-phase, 220V±10%, 50/60Hz (can be appointed) |
|
Vacuum system |
Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
|
Vacuum pump |
60~600L/h |
|
Power socket inside chamber |
Dust proof power socket for specimen opening |
|
Test criteria |
IEC 60529 – IP5X & 6X |
Chamber Design Features：
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
