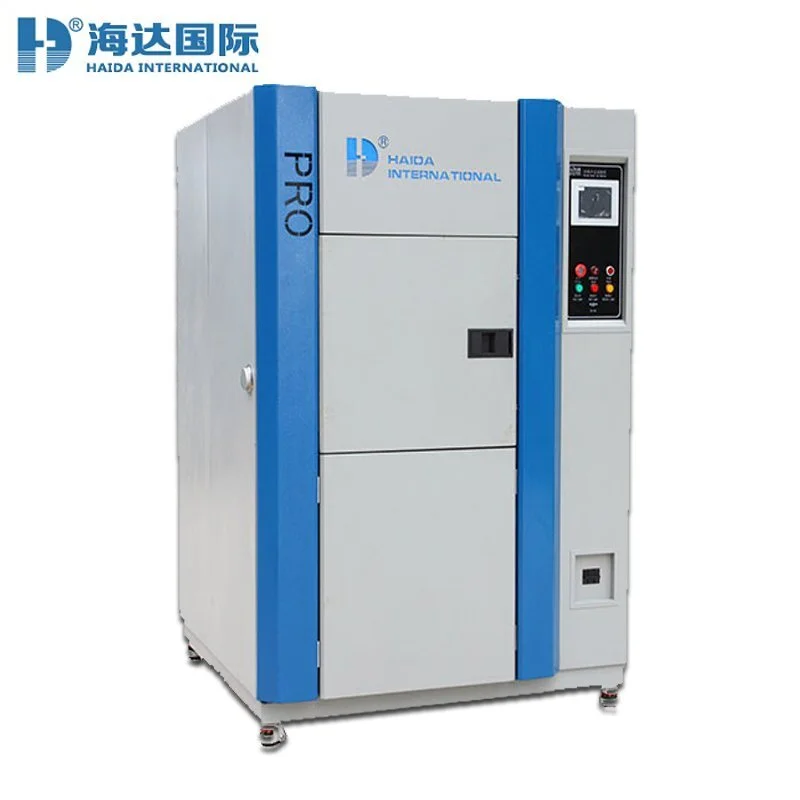

High low temperature test chamber for car seat belt

High low temperature test chamber for car seat belt

High low temperature test chamber for car seat belt can do high temperature testing , low temperature testing , rapid exchange of high and low temperature testing for car seat belt and other materials.
High temperature testing chamber range ～+175℃,and in the high temperature test, the test temperature can be raised ～+175℃ in just a few minutes,in the low temperature test, the test temperature ~ -50 ℃ only a few minutes.and the key point is that the high and low temperature range can be customized.

Usage:
High low temperature test chambe is application to automotive seat belt metal, plastic, rubber, electronic etc materials and can be used for product improvement’s reference.

Standard:

MTL, IEC, JIS, GJB etc

Main parameters:

Operation interface: 6” Windows-based color touch screen with English version

Program’s memory capacity: 100 group user program (adjustable)

Set index range: Time: 1min~ 99h59min, cycling: 1~999times

resolution ratio: Temperature: 0.01 ℃, time 1 min

Input: T type thermocouple

Controlling method: PID control

Safety device:
ground fault circuit interrupters, the chambers temperature is too high, lower protector, air evacuation valve, Sample power control terminals (contact capacity: AC 250V, 6Am), over-temperature protector switch for hot & cold chamber, over-temperature protector switch for hot & cold chamber( inside controller), compressor overpressure, over-heating protector,  ventilator relay, temperature switch of electromotor, prevent relay of electromotor, pressure switch for air compressor, fuse, external alarming terminals (contact capacity: AC 250V, 2Am)
