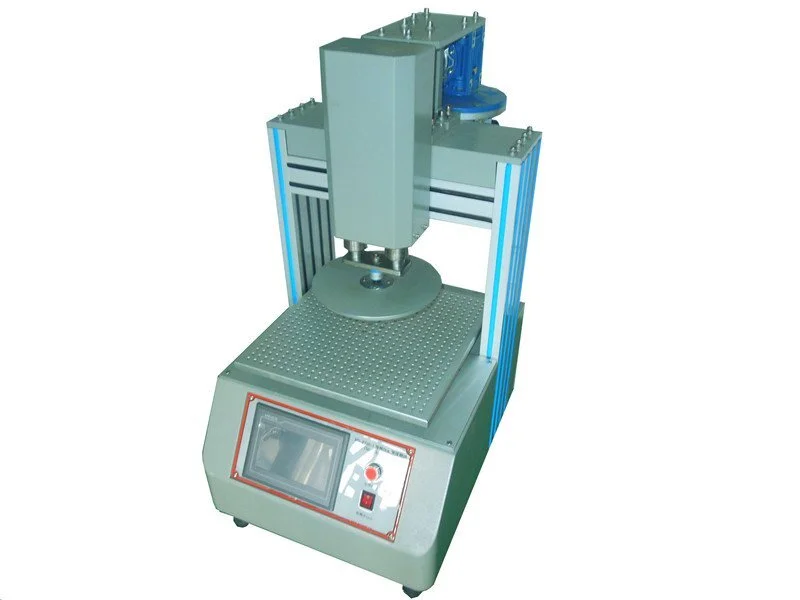

Furniture Compression Foam Testing Machine

Specifications

Furniture Compression Foam Testing Machine
1. Control and display by computer
2.Capacity: 200kg or Custom
3. 2 year guarantee

The usage

Furniture Compression Foam Testing Machine is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic.

Principle: Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, Furniture Compression Foam Testing Machine processing and display, then measure the indentation hardness of sponge, foam and other materials.

Technical parameters:

Compression Foam Testing Machine

1.Control:computer control and display

2.Induction way: Precision load
3. Capacity:200kg
4.Unit:Kg,N,LB
5.Up plate: diameter 200mm,bottom fillet R1mm;Low plate:420×420mm,holes diameter 6mm,space 20mm
6.Max stroke:200mm
7.Test speed: 100±20mm/min
8.Motor:AC Inverter motor
9.Transmission:Precision screw

10.Machine size:( L×W×H) about 1220×750×1260mm

11.Configuration: One computer and operate software
12.Weight:about 200kg
