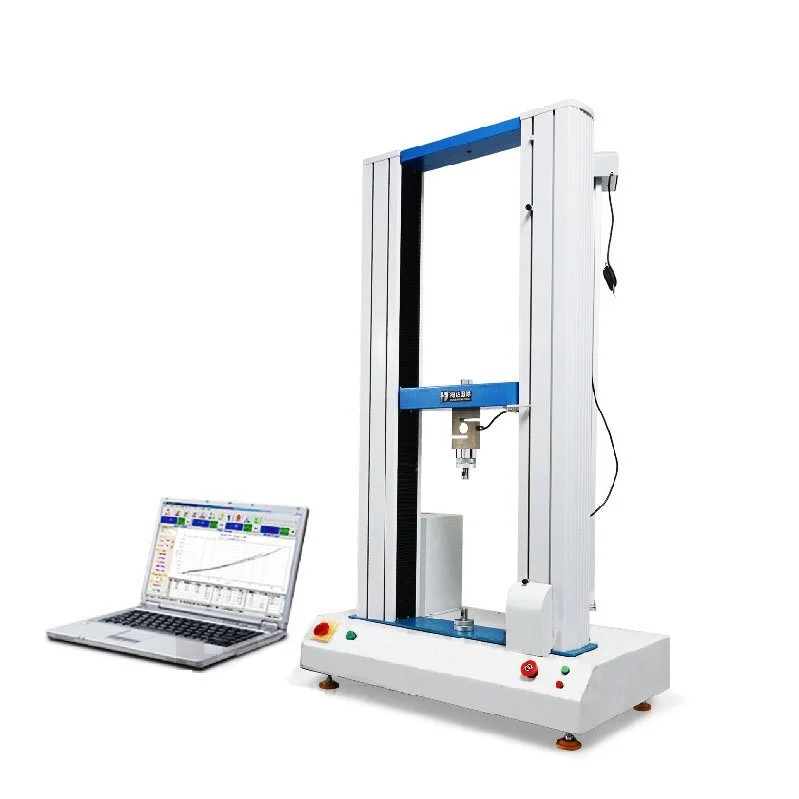

Automotive door lock performance load tester
Automotive door lock performance load tester
Product Overview：
Car door locks and door holder test method, according to the national standard GB 15086-2006 requirements, the need to test the mechanical properties of the door lock requirements, the need to use the tensile testing machine for testing, the need for tensile and longitudinal load test, respectively, and Respectively, to do semi-locking position and full locking position of the two states of the performance test。
usage:
Car door lock performance test machine is mainly used for door lock lock body and lock assembly in the semi-locking position of the largest vertical and horizontal bearing capacity
Standard Features：
|
Item |
Description |
|
Max. Force |
2000 kg (20KN) |
|
Load cell |
Germany brand load cell for high accuracy |
|
Control system |
PC with windows 7 system |
|
Motor |
Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
|
Force reading |
kgf, Ibf, N, KN, T etc |
|
Stoke |
1200mm including fixture |
|
Load cell Resolution |
1/250,000 |
|
Load Precision |
≤0.5% |
|
Test speed |
0.1~500mm/min (adjustable by PC) |
|
Test width |
≤400mm |
|
Software |
TM 2101 |
|
Curves display |
Load- elongation, Elongation-time, Time-elongation, Stress-strain |
|
Data display |
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
|
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
