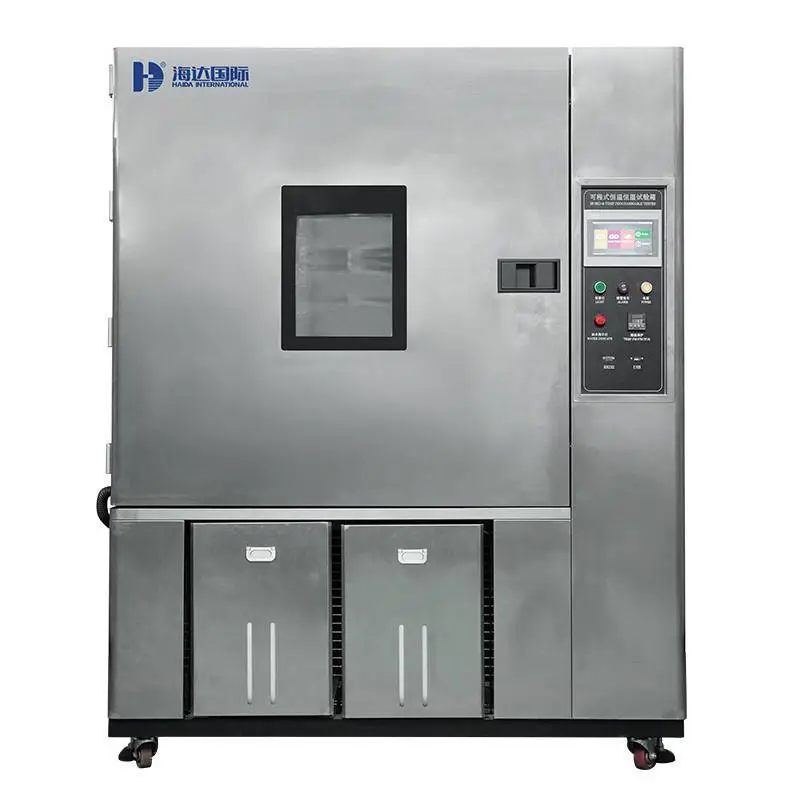

    Stainless Steel Constant Temperature And Humidity Test Chamber 1000L


    Stainless Steel Constant Temperature And Humidity Test Chamber 7
    Applications:

    Stainless Steel Constant Temperature And Humidity Test Chamber EN 14511 can simulation temperature humidity nature environmental conditions accurately.-40~+150℃ temperature range, 20~98%R.H humidity range. environment chamber is equipped with programmable PIC control system can be a short time to accurately control the instrument to achieve different environmental conditions indicators. can simulate a wide range of environmental climates, while the size of the chamber and the simulated climate climate values can be customized.


    Programmable environmental temperature humidity test chamber is used to test and determine the electrical and electronic and other products and materials for high temperature, low temperature, alternating wet heat or constant temperature and environmental testing of the parameters and performance.

    Stainless Steel Constant Temperature And Humidity Test Chamber 8   Stainless Steel Constant Temperature And Humidity Test Chamber 9   Stainless Steel Constant Temperature And Humidity Test Chamber 10   Stainless Steel Constant Temperature And Humidity Test Chamber 11

      Stainless Steel Constant Temperature And Humidity Test Chamber 12   Stainless Steel Constant Temperature And Humidity Test Chamber 13





    Feature:

    1. High performance and quiet operation (68 dBA)

    2. Space-saving designed for flush installation to wall

    3. Full thermal break around doorframe

    4. One 50mm diameter cable port o left, with flexible silicone plug

    5. Direct water supply connection for continuous operation

    6. Accurate wet/dry-bulb humidity measurement system for easy mantain


    Programmable Controller:

    PIC controller for test chamber

    Step types include: ramp, soak, jump, auto-start, and end

    RS-232 interface to connect computer for output


    Meet the standard EN 14511 :

    GB11158 high-temperature test chamber technical conditions

    GB10589-89 low-temperature test chamber technical conditions

    GB10592-89 high and low temperature test chamber technical conditions

    GB / T10586-89 damp heat test chamber technical conditions

    GB / T2423.1-2008 low-temperature test chamber test method

    GB / T2423.2-2008 high-temperature test chamber test methods

    GB / T2423.3-2006 test method of damp heat chamber

    GB / T2423.4-2008 alternating heat and humidity test method

    GB / T2423.22-2002 temperature change test method

    IEC60068-2-1.1990 low-temperature test chamber test method

    IEC60068-2-2.1974 high-temperature test chamber test method

    GJB150.3 high temperature test

    GJB150.4 low temperature test

    GJB150.9 damp heat test




    Specifications:

    Model

    HD-E702-100

    HD-E702-150

    HD-E702-225

    HD-E702-408

    HD-E702-1000

    Internal dimension

    400*500*500mm

    500*500*600mm

    500*600*750mm

    600*800*850mm

    1000*1000*1000mm

    External dimension

    900*1070*1400mm

    1000*1070*1500mm

    1000*1170*1650mm

    1100*1370*1750mm

    1500*1380*1900mm

    Voltage(V)

    Sigle Phase 220V

    Sigle Phase 220V

    Sigle Phase 220V

    Three Phase 380V

    Three Phase 380V

    Temperature range

    -20℃,-40℃,-70℃~150℃

    Temp.& Humi.Adjust Way

    Balanced Temperature Humidity Control System(BTHC),Intelligent PID Regulation

    Temperature fluctuations

    ≤±0.7℃ without load and temperature stable

    Internal Chamber Material

    Stainless Steel 304

    External Chamber Material

    Stainless steel or paint spray

    Temperature uniformity

    ≤±0.7℃    without load and temperature stable

    Temperature deviation

    ≤±1.0℃/ ±2.0℃  without load and temperature stable

    Heating rate

    3℃/min in average

    Cooling rate

    1℃/min in average

    Humidity range

     20%98%RH

    Humidity deviation

    1 ≥75%RH≤±3%RH 2 ≤75%RH ≤±7%RH

    Cooling Method

    Single-stage compression,Second-stage Compression;

    Refrigerator

    Hermertically Sealed France Tecumseh Compressor or Semi-hermetic BOCK Compressor

    Cooling Method

    Air-cooled










                  Structure



    Stainless Steel Constant Temperature And Humidity Test Chamber 14

    Control Pannel

    LCD Touch Screen, Automatic, Intelligent And Humanized Control System

    Stainless Steel Constant Temperature And Humidity Test Chamber 15

    Water Tank

    Automatic Water Replenishment, Water Purification, Circulating Water Recovery, Water Shortage Alarm

    Stainless Steel Constant Temperature And Humidity Test Chamber 16

    Internal Box

    SSUS304 Stainless Steel Plate, Corrosion Resistant, Easy Cleaning

    Stainless Steel Constant Temperature And Humidity Test Chamber 17

    Test Hole

    Lead Wire Design, Electrified Sample and Signal
