HD-F779 Mattress Compression Hardness Testing Machine
Mattress Compression Hardness Testing Machine
Mattress Compression Hardness Tester Video
Mattress Compression Hardness Tester pdf
Introduction:

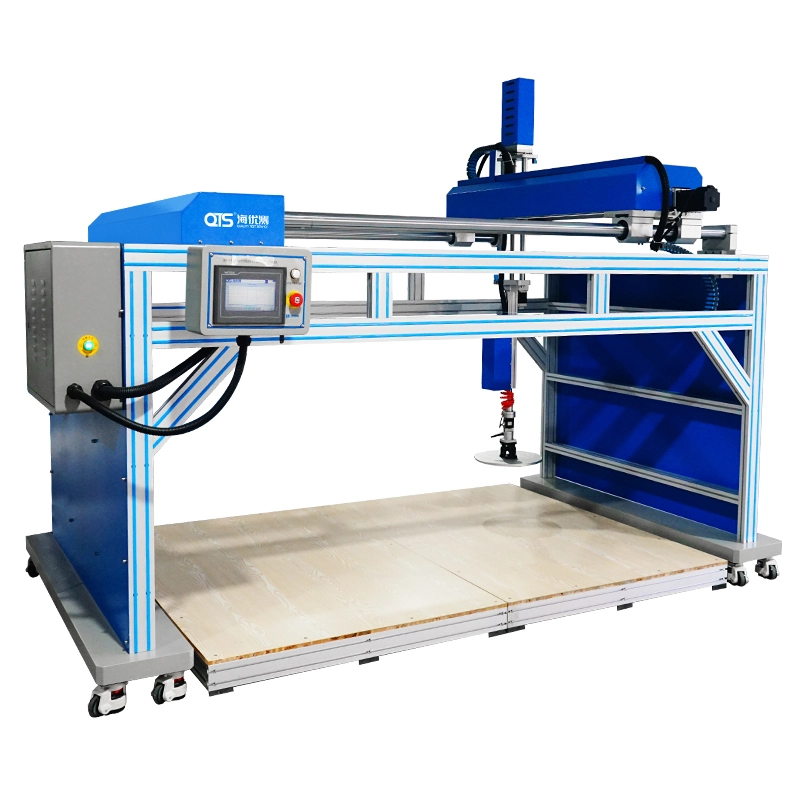

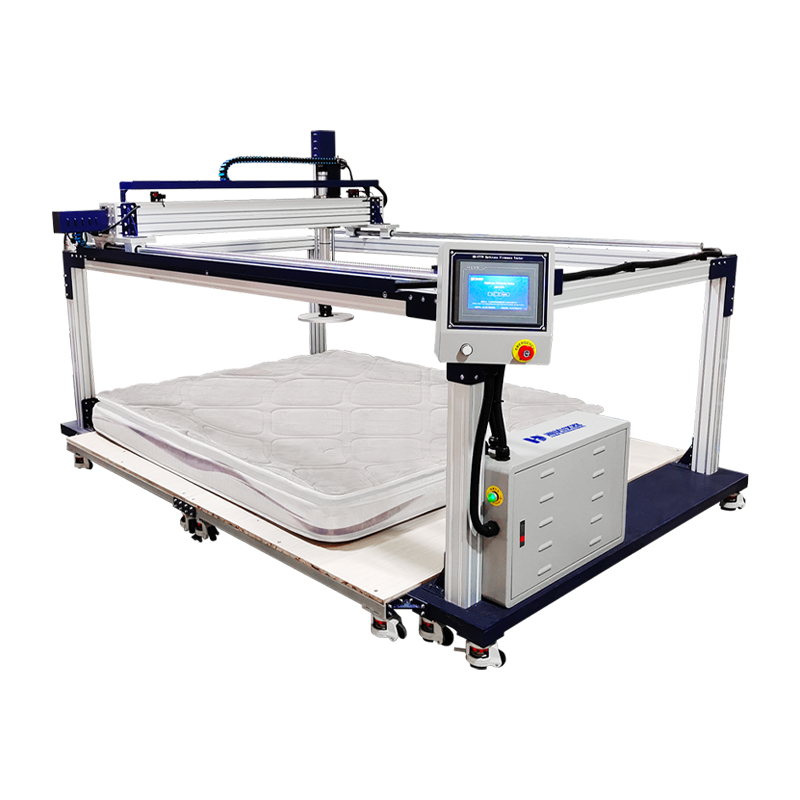

Mattress Compression Hardness Testing Machine with a bottom convex spherical, rigid plate circular loading, recording the loading curve force - displacement analysis data, to assess the mattress hardness and hardness level.
This Mattress Compression Hardness Tester is made by aluminum, beautiful appearance. Control system adopts special high precision intelligent ARAM controller, with special test software, can be run under the windows system, the whole software, the software interface is clear, easy to operate.
Main technical parameters:
the loading block | 355 mm diameter, spherical curvature radius 800mm front edge curvature radius 20mm |
the loading speed | 20 ~ 300mm/min |
test run | 500mm |
capacity | 200kg |
the loading wheel position adjustment | About 300mm |
can test the mattress maximum size (L * W * H) | 2200 x 2200 x 400mm |
Design standards | ASTM F1566,QB/T 1952.2-2011, EN1957 |
