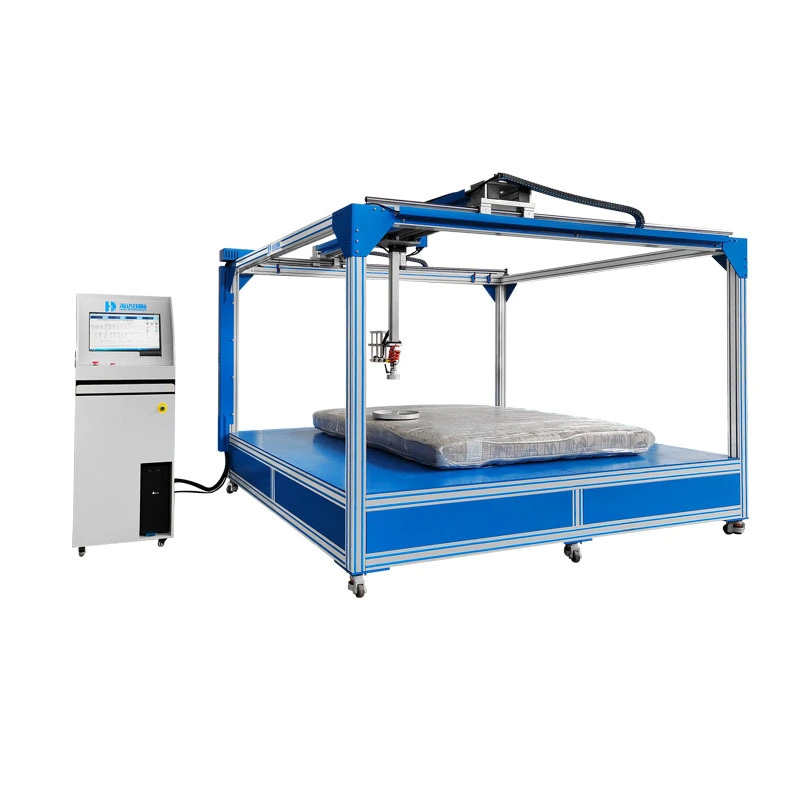

HD-F701 Mattress Fitness and Hardness Tester
Machine Instruction:
The mattress fitness and hardness tester is used to test the finished products of spring soft mattress and foam mattress used in home, hotel, etc., and test the hardness, lagging loss rate and fit of mattress. After the test, the grade of sample is evaluated according to the test.
Machine Three Functions:
1. Test Whole Mattress Hardness
2. Test Mattress Surface Hardnessm Core Hardness, Bottom Hardness and Hysteresis Loss Rate
3. Test Mattres Fitness
Testing Standards:
T-SZFA 2003.1-2019 Ergonomic evaluation of mattress – Part 1: Test and evaluation method of mattress hardness classification and distribution
l6.1 method A—— determination of mattress hardness rate
l6.2 method B—— determination of hardness of each layer of mattress
T-SZFA 2003.2-2019 Ergonomic evaluation of mattress, quantitative and evaluation method of mattress fitness
QBT 1952.2-2011 Soft spring mattress for upholstered furniture
QBT 4839-2015 Foamed mattress for upholstered furniture
Machine Advantage:
1. Automatic software operation procedure, no need to move mattress or reset software during test
2. Self developed software, can update accordingly to standard updates
3. No need to measure mattress size in advance, there is steel rule on machine test base can read mattress lenght and width and software can measure mattress thickness
4. Three Panasonic laser displacement sensors, high test accuracy
Technical Parameters:
Indicator | Parameter |
load Cell Capacity | 200KG imported load cell |
Load Cell Accuracy | ≤0.5% |
Electric Actuator Stroke | 500mm |
Motor | Panasonic servo motor |
Driver | 400W Panasonic servo driver |
Screw Rod | ball screw |
Display | computer control, windows operation |
Control Mode | Self developed circuit board and software, closed loop control |
Test Speed | 0.1-250mm/s (adjustable) |
Position Measuring Device | Panasonic laser displacement sensor（3 sets） |
Displacement Measuring Accuracy | ±1mm |
Test Result Display | automatic digital and curve display |
Test Times | 1～999,999 adjustable |
Shutdown Mode | Reach the set number of times, travel limit, test completed, automatic stop |
Max sample size | 2200*2000*400（L*W*H） |
Machine Weight | Around 1000kg |
