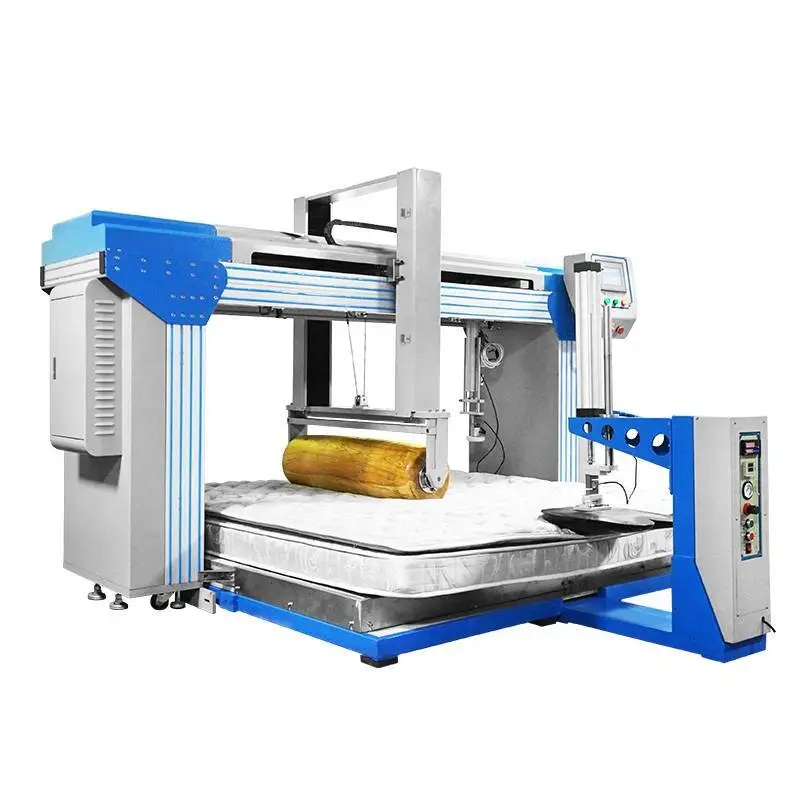

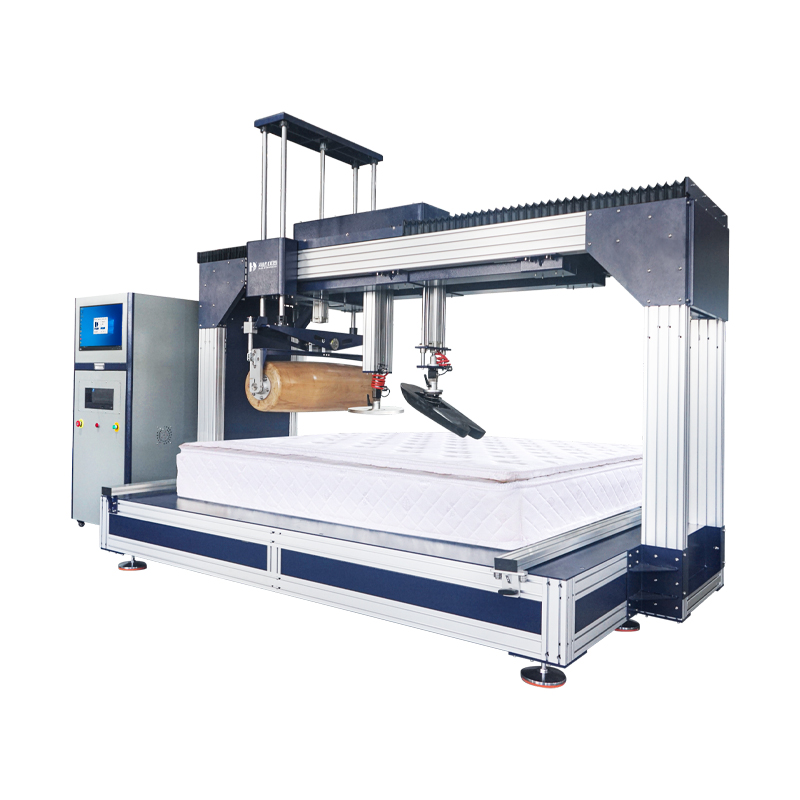

Mattress Rolling & Firmness Durability Tester

Mattress Rolling & Firmness Durability Tester

Applications:

Mattress Rolling & Firmness Durability Tester determines the durability of all types of mattress. Including Boxspring, Innerspring, Latex or Polyurethane mattress. It does this by simulating long-term use conditions. The testing procedure involves a specific weight load rolling over the mattress. The roller traverses from side to side across the mattress simulating a realistic sleeping action. It then identifies changes in its dimensions. For example, thickness and firmness. Thus, it helps in quality testing of mattress, especially, on the durability dimension.



Strong spring Mattress



Common spring Mattress



Foam Mattress



Brown fiber elastic Mattress

Machine Three Functions:

1.Test Whole Mattress Hardness

2.Test Mattress Surface Hardnessm Core Hardness, Bottom Hardness and Hysteresis Loss Rate

3.Test Mattres Fitness

Testing Standards:

T-SZFA 2003.1-2019 Ergonomic evaluation of mattress – Part 1: Test and evaluation method of mattress hardness classification and distribution

l6.1 method A—— determination of mattress hardness rate

l6.2 method B—— determination of hardness of each layer of mattress

T-SZFA 2003.2-2019 Ergonomic evaluation of mattress, quantitative and evaluation method of mattress fitness

QBT 1952.2-2011 Soft spring mattress for upholstered furniture

QBT 4839-2015 Foamed mattress for upholstered furniture

Machine Advantage:

1.Automatic software operation procedure, no need to move mattress or reset software during test

2.Self developed software, can update accordingly to standard updates

3.No need to measure mattress size in advance, there is steel rule on machine test base can read mattress lenght and width and software can measure mattress thickness

4.Three Panasonic laser displacement sensors, high test accuracy



Control Panel

Functional interface is simple andn tive and easy to operate



Air Pressure Valve

Adopt purple copper core pressure precision, high pressure Stable and reliable, accurate filtration



Roller

Using a roller to simulate the constant rolling of human sleep



Solenoid Valve

Ultra-low power consumption micro valve, stable performance High accuracy can be achieved
