Automatic Wrap Reel For Textile

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-W807

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

Automatic Wrap Reel For Textile

Product description:

Automatic Wrap Reel ,also as a kind of textile testing equipment,is an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing. Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify)

Automatic Wrap Reel For Textile Usage

Automatic Wrap Reel For Textile To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.

Automatic Wrap Reel For Textile Testing standards

ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems

ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method

BS 2010 Method for determination of the linear density of yarns from packages

DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)

Automatic Wrap Reel For Textile Salient features

1. Wrap reels available in Metric and English system.

2. Digital control panel with resettable revolution counter.

3. Equipped with a yarn-tensioning device.

4. Speed from 20 up to 250 r.p.m.

5. Six Skeins (lea/hank) can be made together.

6. Complete with all accessories.

7. Supplied with inspection & calibration certificates.

Automatic Wrap Reel For Textile Technical parameter:

Number of leas made at a time	6
Spread of each lea	60 mm
Swift/wheel circumference	1.5 yards or 1 meter
Operating speed	100 ± 2 rpm (20-250rpm adjustable)
.Digital Counter (Preset Type)	0–9999,LED
Traverse motion	35 ± 0.5 mm
Pre-tension	0 -100 cN
Dimensions	780 x 660 x 480 mm
Power supply	220V,50Hz or 110V,60Hz
Weight	53 Kg

Automatic Wrap Reel For Textile Accessories

Main Unit	01 No.
Power Cord	01 No.
This User’s Manual	01 No.
Inspection & Conformance Certificate	01 No.

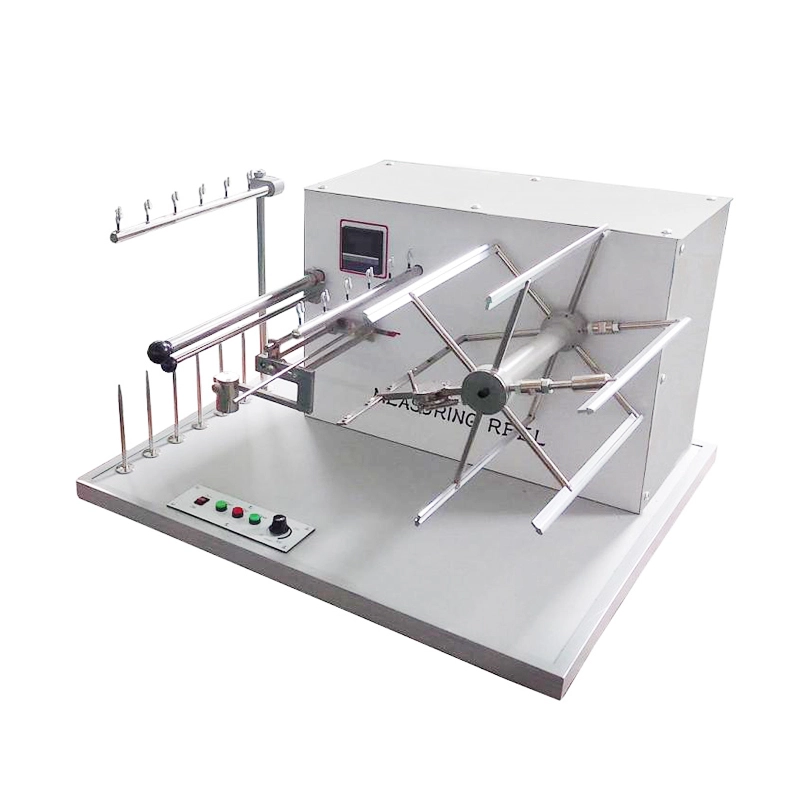

Automatic Wrap Reel For Textile view:
