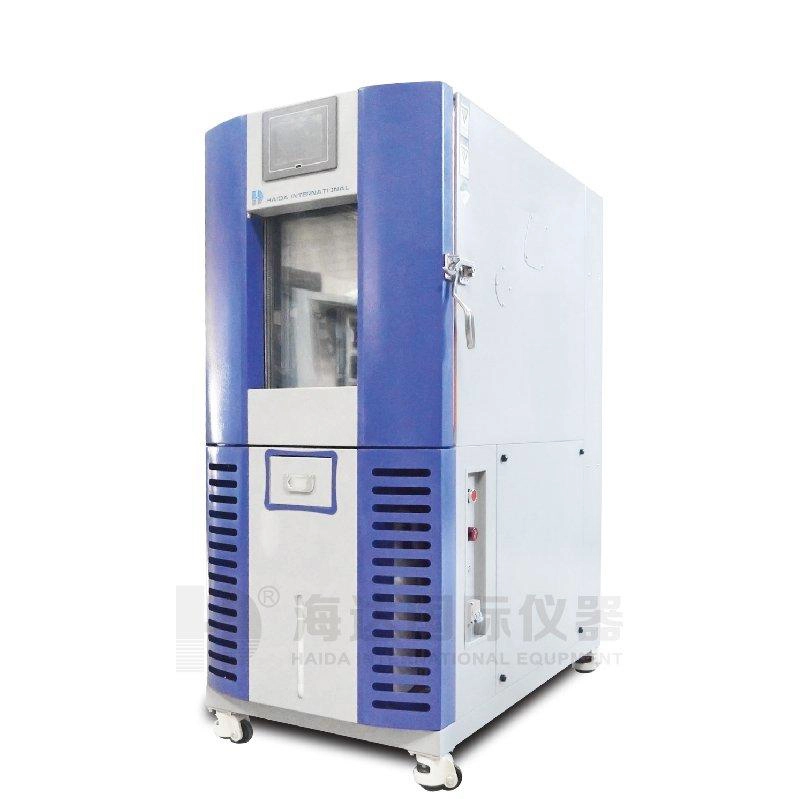

Textile Temperature and humidity test Chamber
Textile Temperature and humidity test Chamber
APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy maintain
PROGRAMMABLE CONTROLLER
1. PIC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
STANDARD FEATURES
Model | HD-E702-100-2 |
Internal dimension(W*D*H) | 400*500*500mm |
External dimension(W*D*H) | 900*1400*1070mm |
Temperature range | -20~+150℃ |
Temperature Accuracy | ±1℃ |
Humidity range | 20~98%R.H. (Refer Image below) |
Humidity accuracy | ±3%R.H |
Cooling speed | 1℃/min in average (without loading) |
Heating speed | 3℃/min in average (without loading) |
Internal chamber material | SUS#304 stainless steel, mirror finished |
External chamber material | Stainless steel with paint spray |
Cooling method | Air cooling |
Controller | Korea TEMI 880 controller LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
Insulation material | 50mm high density rigid Polyurethane foam |
Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
Compressor | France Tecumseh compressor |
Lighting | Heat resistance |
Temperature sensor | PT-100 dry and wet bulb sensor |
Observation window | Tempered glass |
Testing hole | Diameter 50mm, for cable routing |
Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
