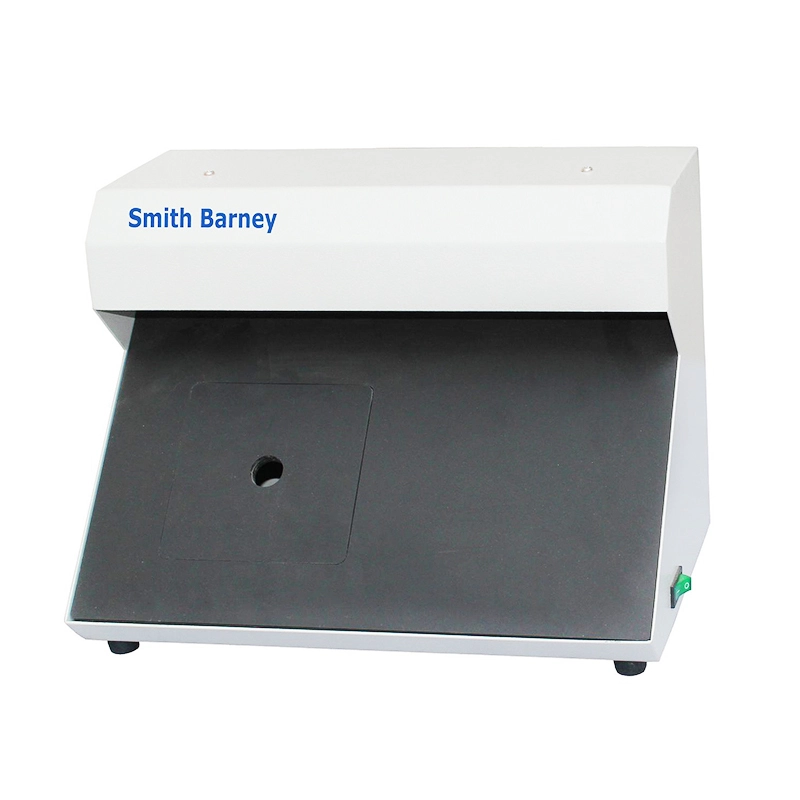

Pilli Scope

Pilli Scope

INTRODUCTION

The Pilling Assessment Viewer is a specialized viewing booth to undertake the assessment of pilling on fabrics against standard photographs. The unit can be used for assessing the pilling with Martindale pilling, random tumble pilling, ICI pilling samples etc.

USAGE

Suitable for all standards where the assessment of pilling on fabrics is necessary, whether against control fabrics or photographs.

TESTING STANDARDS

ISO 12945-1, ISO 12945-2, ISO 12945-3, BS 5811, ASTM D3512, ASTM D3514, ASTM D4970

Arcadia AG26, Next TM26, SN 198525, Woolmark TM196

SALIENT FEATURES

1.Specialized equipment to compare samples from ICI pilling tester or Martindale pilling tester with standard replicas.

2.CWF light at 45° angles with sample gives best assessment result.

3.Black background helps in error free assessment.

4.Portable in size, which can be kept in anywhere.

5.With sample holder to ease in fixing samples during assessment.

6.Supplied with inspection & Conformance certificates.

TECHNICAL DETAILS

1.Light: CWF Tube

2.Color Temperature: 4100°K - 4500°K

3.Viewing area: Painted black (Matte)

4.Viewing Angle: 45°

5.Dimensions:340 x 250 x 300 mm

6.Power supply:220V,50Hz or 110V,60Hz

7.Weight:10 Kg

ACCESSORIES SUPPLIED WITH THE INSTRUMENT

1.Main Unit:01 No.

2.Power Cord:01 No.

3.This User’s Manual:01 No.

4. Inspection & Conformance Certificate:01 No.
