Microscope
USAGE:

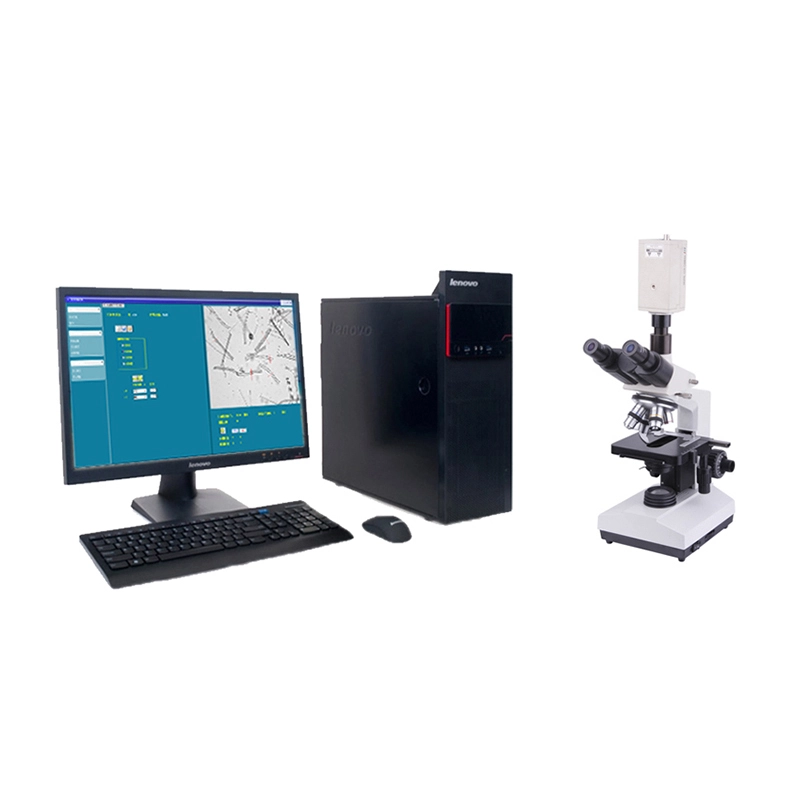

It is used for fiber fineness measurement and blended fiber blended content of the test, and it can shows the cross-sectional shape of the hollow fiber and the shaped fiber for observation.It collects the longitudinal and cross - sectional microscopic images of the fibers by a digital camera and the fiber longitudinal diameter data can be quickly realized by software assistant.It has fiber type labeling, statistical analysis, EXCEL output, electronic reports and other functions.
TESTING STANDARDS:
ISO 137, ISO 17751.
TECHNICAL PARAMETERS:
Test method | Fiber diameter test, blended content test |
Instrument structure | Lenovo commercial computer (Yang days A4600K-22); Analog camera (Panasonic WV-CP300); Biological microscope |
Test area | 2-200um |
Test resolution | 0.01um |
Power | AC220V 50Hz |
Outside dimension | 350×300×200mm |
Weight | 25kg |
Other configurations | 1 set fiber slicer; 1 box Slides and 1 box coverslips |
