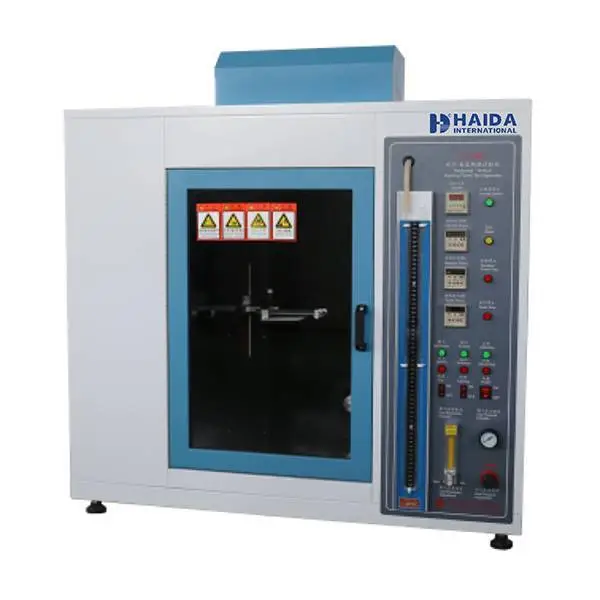

HD-R807-1 Horizontal - Vertical Burning Flame Test Apparatus
APPLICATION
This tester is suitable for testing and evaluating the combustion characteristics of solid materials. It is designed and manufactured according to the relevant clauses stipulated in the US UL94 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". Carry out horizontal and vertical flammability tests on solid materials and plastics of equipment and appliances. It is also equipped with a gas flow meter to adjust the size of the flame. The motor drive mode is adopted, and the operation is simple and safe.
STANDARD FEATURES
Burning Chamber Capacity | ≥0.75m³ with glass observation door |
Burning Angle | 20 。, 45 。, 90 。 (ie 0 。) adjustable |
Flame Time | 0 ~ 99 minutes 99 seconds can be set |
After Flame Time | 0 ~ 99 minutes 99 seconds can be set |
After Glow Time | 0 ~ 99 minutes 99 seconds can be set |
Burner Dimensions | The inner diameter of the nozzle is Ø9.5±0.3mm, the effective length of the nozzle is 100±10mm, and there is an air adjustment hole |
Combustion Gas | LPG gas (Customize) |
Flame Height | Adjustable from 20mm to 175mm as standard |
Features | It is also equipped with lighting device, air extraction device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-shaped pressure gauge and sample fixture |
Power | AC 220v 50HZ |
