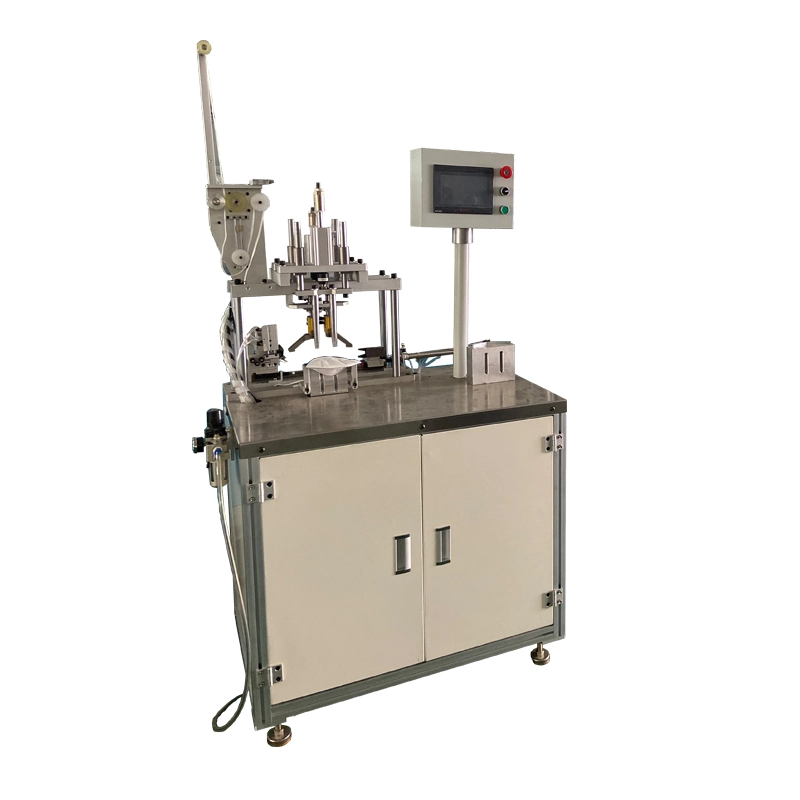

Mask Ear loop Welding Machine

Mask Ear loop Welding Machine

Description：

The mask ear loop welding machine has semi-automatic and automatic type, which is mainly used for welding the mask ear strap. The produced mask ear strap is strong, firm and not easy to fall off

Pareameter:

Control system power: 1 Phase 220V 50HZ

Air Pressure: 0.6Mpa

Power supply: 1 Phase 380V 50HZ

servo motor: Domestic quality

Control System: PLC

Sensor: Omron, Seak

Pneumatic Components :SMC Yadek

Operation screen: 10 inch capacitive screen

Bearing: NSK

Lead screw: Hiwin

Security: Safety light grid

equipment power: 2.5KW

equipment weight: about 300kg

Driven: Ordinary motor + servo

Number of applicable layers :3-5 layer

Applicable materials: PP, non-woven fabric, synthetic fiber

Processing methods: Ultrasonic welding

Finished product specifications: 175*95mm

Technical characteristics

1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.

2. The production line adopts the structure of 2ply, with high production efficiency

3. Nose clips and ear loop are automatically cut and welded by ultrasound

4. Automatic counting and palletizing after welding earbands

Advantages :

1. All electrical components of the equipment adopt international first-line brands to ensure the stability of the equipment to the greatest extent;

2. Adopt first-line brand ultrasonic welding machine, with high welding efficiency, good quality, stable and durable;

3. High-speed production with a production capacity of 100-110PSC per minute;

4. Modular design, convenient installation and maintenance;

5. Intelligent control, simple and convenient operation;

6. Automatic shutdown alarm for equipment abnormality, early warning of lack of materials, and intelligent guidance of human-machine interface for quick processing;

7. Appearance is made of food-grade stainless steel.
