Temperature Humidity Vibration Combined Test System

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

Temperature Humidity Vibration Combined Test System

produce introduce
Temperature Humidity Vibration Combined Test System is the closest to accelerate corrosion test of actual natural conditions, the natural environment more often meet the situation be modeled to harsh conditions in the natural environment of multiple tests are combined, such as salt spray, dry, wet, room temperature standing, low temperature environment to be combined, can be in any order or individually tested.

Temperature Humidity Vibration Combined Test System is tested against changes in the environment in a highly-use products, such as steam locomotive spare parts, aviation equipment, photographic equipment, building materials, paint and electrodeposition coating a metal such as electrical and electronic systems against anti-electrochemical corrosion resistance are applicable.

feature:
1. Using LCD color touch screen digital display temperature and humidity controller (Japan OYO U-8256P), temperature and humidity test curve can be fully documented. Control: temperature, humidity, temperature and humidity can do alternating control program.
2. Program Group Capacity: 140Pattern (group) 1400Step (above) each program can be set up to Repest99 segment. Each execution mode time can be arbitrarily set 0-999 hours and 59 minutes. Each group can be set back part of the cycle 1-999 or 1-999 back full circle.
3. With power and memory function, can be completed by the end of the trial to continue after power recovery.
4. Connect the RS232 interface with a computer.

standard:
GB / T 20854-2007 wet salt spray test
ISO14993-2001 wet salt spray test

Parameters

Brand	Haida
Type	Circular
Transmission Structure	Electromagnetic Shaker
Works	Electrodynamic Vibration
Shaft Number	Three
Supporting Device	Coil Spring
Customized	Customized
Rated Sine Force (N)	1000 to 3500000
Frequency Range (Hz)	3 to 3500
Rated Velocity(M/S)	1.2 to 1.8
Origin	Guangdong, China
Function	High Frequency Vibrating Screen
Usage	Experiments Shaker
Object	Electronic Parts
Running Track	Circular Vibrating Screen
Condition	New
Rated Random Force (N)	1000 to 3500000
Rated Acceleration(M/S2)	400 to 1000
Rated Displacement (P-P, mm)	25 to 91
Power	AC380V ,3 pH 3 Lines
Warranty	1 Year
Certificate	CE

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s 2 )	Rated Speed(m/s)	Rated Replacement (p-p)mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil(mm)
ES 1	1000	1000	3-3500	400	1.2	25	70	2.5	Φ 150
ES 2	2000	2000	3-3500	800	1.6	25	70	2.5	Φ 150
ES 2a	2000	2000	3-3500	300	1.6	40	70	8	Φ 230
ES 3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ 150
ES 3a	3000	3000	3-3500	400	1.6	40	120	9	Φ 230
ES 6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ 230
ES 6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ 230
ES 10	10000	10000	3-3000	1000	1.8	51	270	14	Φ 240
ES 20	20000	20000	3-3000	1000	1.8	51	300	30	Φ 320
ES 30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ 450
ES 40	40000	40000	3-2800	1000	1.8	51	500	50	Φ 450
ES 50	50000	50000	3-2700	1000	1.8	51	750	50	Φ 450
ES 60	60000	60000	3-2700	1000	1.8	51	750	60	Φ 450
ES 100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ 450
ES 120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ 500
ES 160	160000	160000	3-2100	1000	1.8	51	1500	150	Φ 600
ES 200	200000	200000	3-2000	1000	1.8	51	2500	200	Φ 650
ES 350	350000	350000	3-1700	1000	1.8	51	4500	300	Φ 870

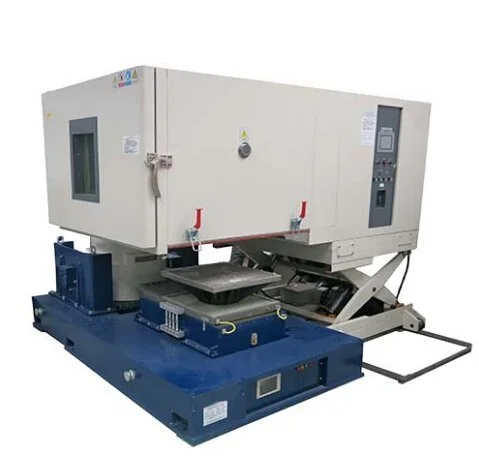

Temperature Humidity Vibration Combined Test System 2
