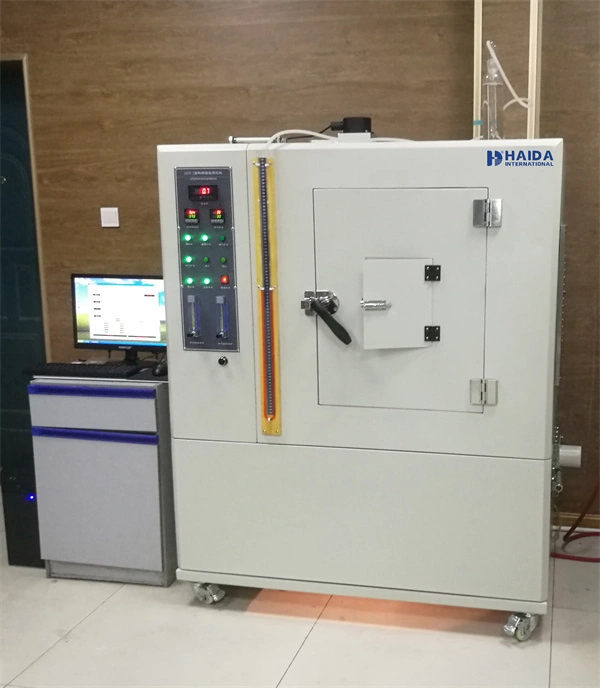

HD-G888 NBS SMOKE DENSITY CHAMBER
APPLICATION
The whole instrument consists of a closed test chamber, a photometer measurement system, a radiation cone, a combustion system, an igniter, a test box, a bracket, a temperature measuring instrument and a smoke density test software; the circuit is developed by a single-chip microcomputer, with high technical content and stable performance. This instrument is suitable for all solid materials, such as foam, rubber, textile coverings, painted surfaces, wood and other materials, and is widely used by production plants in the foam industry, solid material industries, and scientific research and testing units.
MAIN TECHNICAL INDICATORS AND WORKING CONDITIONS:
Inner Box Size | L914*W610*H914mm |
Equipment Size | L1110*W750*H2040mm |
Smoke Density) | 0-924 Six-speed automatic shift |
Measuring Range | 0.0001—100% |
Measurement Accuracy | ±3% |
Working Temperature | Room temperature—40℃ |
Relative Humidity | ≤85% |
Working Environment | When the instrument is running, it should avoid direct sunlight and no forced air flow. |
Measurement Software | It operates on the WINDOWS XP interface, and the main data that can be tested include smoke optical density, specific optical density, mass optical density, mass loss, mass loss rate, average smoke density, etc. It also has operation interfaces such as calibration, editing, testing, and parameter adjustment. |
Lab VIEW style. | Displays the transmittance versus time curve. |
Sample Size | 75×75mm |
Light Source Color Temperature | 2200K±100K |
Speed Of Light Diameter 51mm | The computer automatically records the specific optical density according to the light change. |
Filter | Amplifying filter, optical density 2.0; calibration filter, optical density 3.0; compensation filter, optical density 0.5, 3 pieces in total. |
Ring Heater | There is a ring heater in the lower aperture, so that the temperature on the light window is 50 。C-55 。C, which can minimize the smoke concentration on the surface. |
Heating Cone | Power 2600W Temperature control range: 0- 1000 。C, thermocouple temperature measurement, equipped with automatic cold junction compensation. |
Heat Flow Radiometer | The heat flow meter signal is collected and calculated by computer, equipped with water cooling pipeline. |
Auxiliary Heater | With a power of 500W, the internal temperature of the test chamber can be stabilized at 40 。C±10 。C or 55 。C±10 。C. |
Test Sample Weight Change | The balance weighs 2000g, the weighing accuracy is 0.1g, and the height of the weighing support rod is adjustable. |
Gas | For propane with a purity of more than 95%, the minimum pressure is 3.5kPa±kPa. |
Automation | Computer automatic control, acquisition, recording and settlement of results |
Size | 1.22M×0.68M×2M |
Weight | About 500Kg |
Power Supply | 220V, 50Hz, 4KW |
