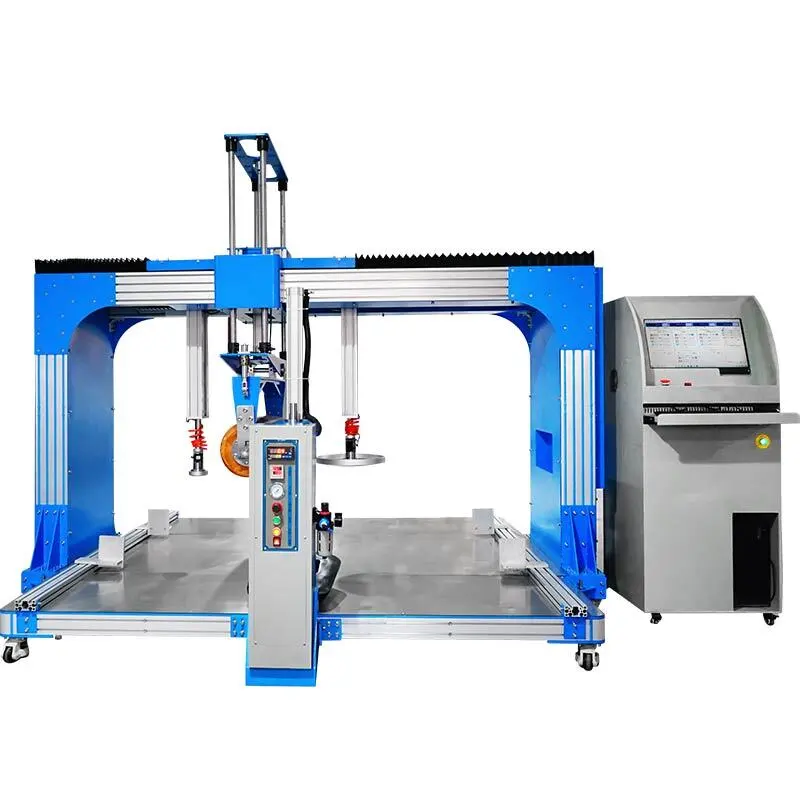

HD-F764 Integrated Mattress Test Machine1

APPLICATIONS & TEST PURPOSE:

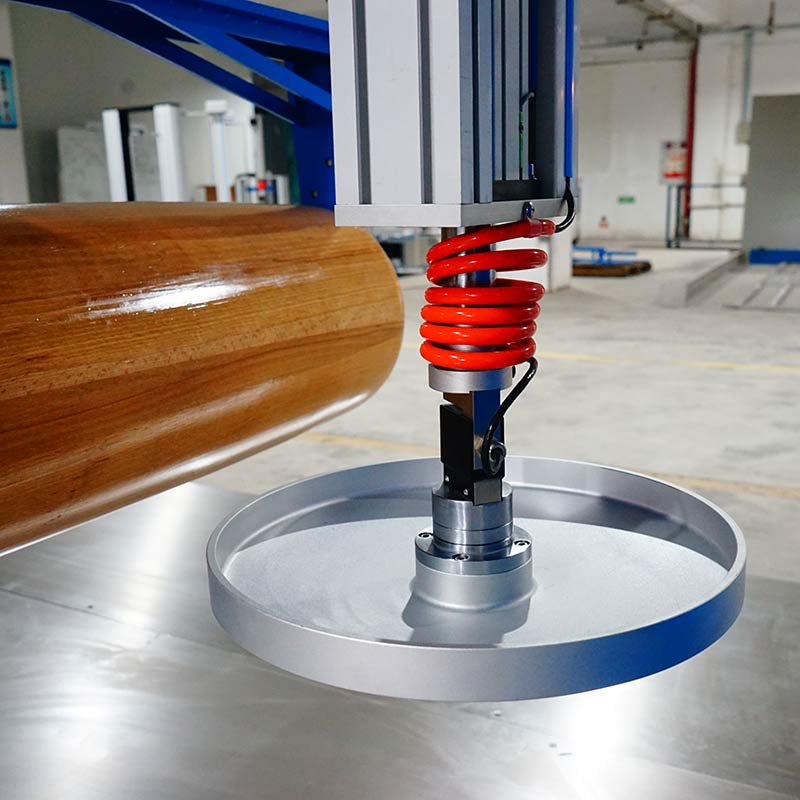

This machine is suitable for comprehensive mechanical testing of strong spring mattresses, ordinary spring mattresses, foam mattresses, and brown fiber elastic mattresses. A machine designed to simulate the constant rolling during human sleep. A rolling loading module is placed horizontally on the specified loading position of the mattress, rolling at a certain frequency, and reciprocating loading the mattress to test the long-term repetitive rolling load of the mattress. 's ability to bear. At the same time, it is equipped with tests including height measurement, soft hardness and rolling fatigue; it meets the requirements of national GB, EN, ASTM and other test standards.

STANDARD FAETURES:

CONFIGURATION:

(1)Hardware features

1. The tester adopts a combination of thickened aluminum profile frame and steel, which is generous and stable as a whole; the base adopts a split design, which is more convenient for transportation and movement;

2. The fixture adopts movable installation, and the whole machine adopts open design, which is convenient for installation, debugging and machine transportation;

3. Using the brand cylinder, the thrust is stable; the cylinder drives the lifting structure, which is stable and reliable, and has a long service life;

4. The whole machine adopts modular design, which is convenient for combination and quick replacement; it meets more test standards;

5. High-quality imported materials are used for key moving parts to ensure durability and stability.

(2) Features of the software

1. The control system adopts computer software, with powerful functional interface, intuitive algorithm data, and convenient operation;

2. Driven by Panasonic servo motor, the displacement, speed and thrust are precisely controlled, stable and reliable;

3. The machine can export the test data through the USB terminal, and can customize the test parameters, and the machine will automatically stop when the test is completed;

4. The software has fault alarm prompt, power-off memory function, and real-time monitoring function; it can basically realize unattended test, and the test will be automatically stopped after the test is completed, and the test results will be automatically retained at the same time;

5. The software is equipped with in-position detection, limit protection, overload protection and other designs to ensure safer operation.
