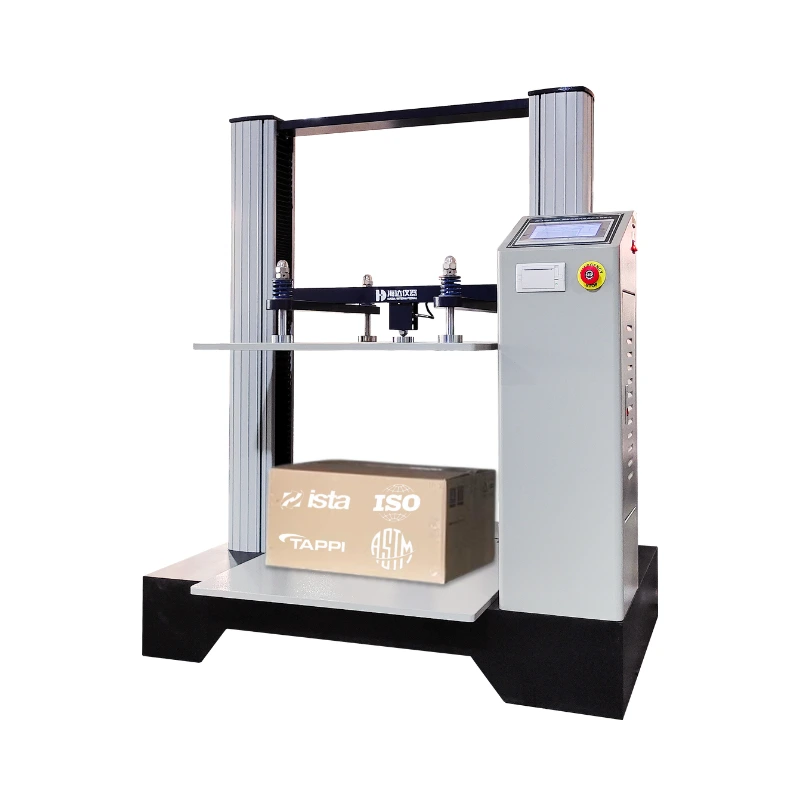

Corrugated Box Compression Tester
Product Description
HAIDA’s Box Compression Tester is a reliable and accurate machine which specialized for testing the compression performance of cartons.
It is suitable for compression test, deformation test and stacking test of the Corrugated cartons, honeycomb boxes an etc packages.
Also,it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.
Product Specifications
Our specialists can help you find the perfect Box Compression Tester.
| Item | HD-A502S-900 | HD-A502S-1200 | HD-A502S-1500 |
| Max. Force | 10KN(1000 kg ,2205lb) | 20KN(2000 kg, 4409lb) | 50KN(5000kg,11023lb) |
| Load cell | 1 load cell for highest accuracy | ||
| Control system | Dual control (Computer control with Windows mode+Touch screen control ) | ||
| Servo Motor | 400W | 750W | |
| Servo Driver | 400W | 750W | |
| Screws | Ball screws(Double ball guide rod design, high transmission accuracy, high transmission power efficiency) | ||
| Force reading | Gf, kgf, Ibf, N, KN, T etc | ||
| Load cell Resolution | 1/250,000 | ||
| Load Precision | within ±0.5% | ||
| Effective test area (L x W x H) | 700x900x900mm | 1000x1200x1000mm | 1300x1500x1500mm |
| Compression Stroke | 0~900mm | 0~1000mm | 0~1500mm |
| Lift speed | 0.1~200mm/min | ||
| Software | Mtest HD-002-A(Independent R&D) | ||
| Data display | Load, displacement, speed, loading rate and elapsed time | ||
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
||
| Report items | Serial number, peak value, average value, set pressure holding value, pressure holding time | ||
| Electrical Supply | 1phase, AC 220V, 500W, 50HZ | 1phase, AC 220V,550W,50HZ | 1phase, AC 220V,900W,50HZ |
| Overall Dimensions (L x W x H) | Approx.1510x1200x1645mm | Approx.1510x1200x1645mm | Approx.1865mmx1500mmx2235mm |
| Weight | Approx.350kg(772lb) | Approx.670kg(1477lb) | Approx. 1000kg(2205lb) |
| Operation Temperature and relative humidity | 10℃~40℃, 30~80% | ||
Products Advantages
Haida Box compression comply international Standards, such as ISO 12048, ISTA 6-Amazon,TAPPI T804 and so on. Designed to test the compression resistance of transportation packaging.
Product Characteristics
HAIDA’s Box Compression tester is a standardized method used to assess the strength and structural integrity of corrugated boxes and other types of packaging materials. It is a crucial quality control and performance evaluation tool in the packaging industry.
Product Details
The Box Compression Tester features key components such as a precision load cell, sturdy compression plates, and an advanced control system, ensuring high accuracy, durability, and consistent testing performance.
HAIDA HD-002-A Test Software
Contain variety of test methods of BCT All test parameter settings, working status control, data collection and analysis processing, and result display can be completed on Haida Software.
Product Application
Ensure your packaging strength with the Box Compression Tester perfect for avoiding transit damages and ensuring product safety. Boost efficiency, cut costs, and build customer trust today!
