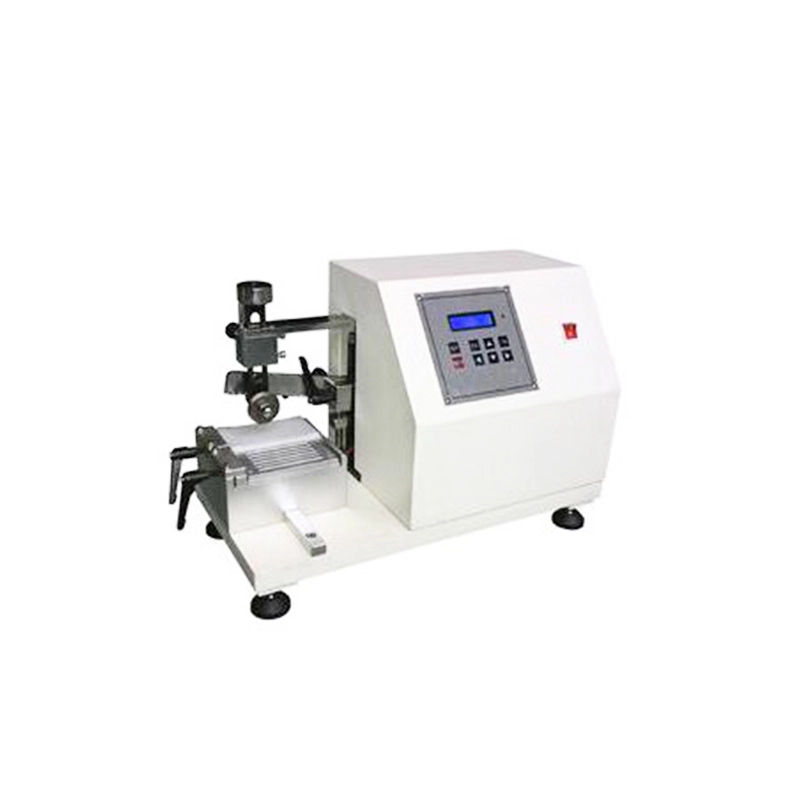

Glove Cut Resistance Tester
Glove Cut Resistance Tester
Glove Cut Resistance Tester Video
Product description:
This Cut Resistance Test Machine is used to test the blade cut resistance of safety gloves, leather, coated fabrics and other materials, but it's not applied to hard gloves.
Working principle:
A rotating circular blade cutting near placed in special sample device, blade move under the provision of load , automatic number, it will automatic stop when the test end, contrast before and after the test, and then can get test results.
Main technical parameters
Horizontal travel: | 50mm |
Weight on blade: | 5±0.05N |
Cutting speed: | 10cm/s |
Diameter of round blade: | 45±0.5mm |
Thickness of blade(accessories) | 0.3±0.03mm (Japan OLFA's 45mm REF OLFA RB Blade-10pcs) |
Sharp scissors(accessories) | For cutting sample-1pc |
Cutting angle: | 30~35 degree |
Hardness of blade: | 740~800HV tungsten steel |
Specimen size: | 100x80mm, 5pcs can be tested |
Counter: | LED, 6 digits |
Machine size: | 550×450×300mm(L×W×H) |
Weight: | 60kg |
Power supply: | AC220V, 50/60Hz, single phase |
Test standard | EN388.6.2, ISO20344.6.1 |
