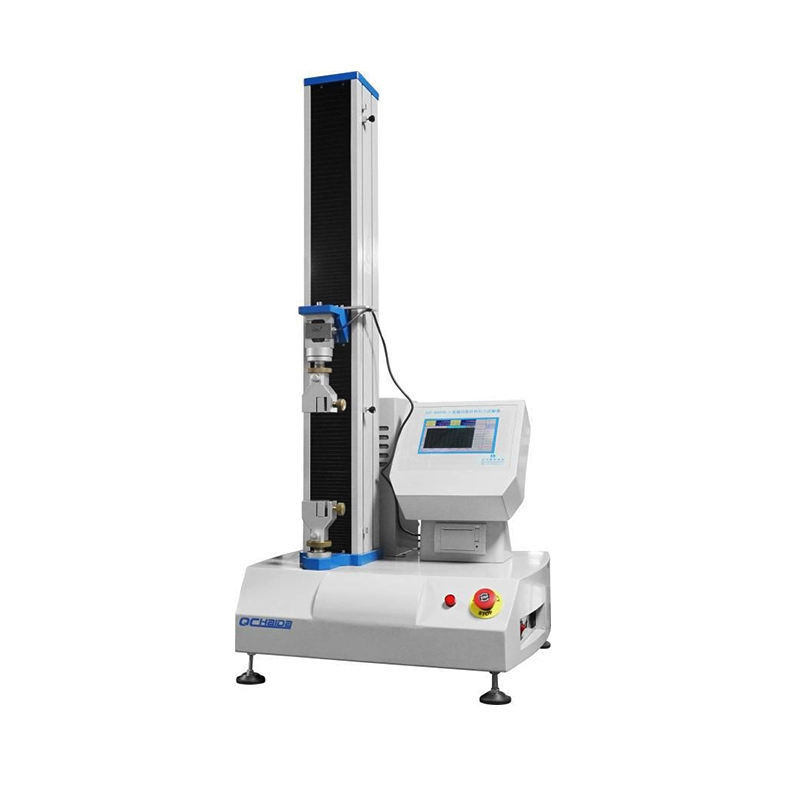

Fabric Tensile Strength Tester
Application
Used for cotton, wool, linen, silk, wool fiber fabric, non-woven fabric, paper, ribbon and nonwoven fabric yarn tensile breaking strength and breaking elongation of determination
Test standard
GB/T 3923.1、GB/T 3923.2、GB/T 3917.2、GB/T 19976、ISO 13934.1、ISO 13934.2
ISO 13935.1、ISO 13935.2、ASTM D5035、ASTM D2261,ASTM D 5034
Feature
1, All computer operation, report, curve, as a result, the integration of graphics intuitive and clear.
2, Panasonic AC servo driver, ball screw, as a wide range of speed setting, suitable for all kinds of material mechanical properties testing.
3, Imported sensors, force measurement precision is higher than 0.2% f. S.
4, Equipped with online interface, are professional development materials strength detection software, not only can print, save the test sample report, also can provide material analysis test with the test data.
5, According to customer needs, can provide various standard test function, also can customize according to customer's requirements.
Technical parameters
Working mode | CRE principle, microcomputer control |
Load capacity | 5-200kg |
Load cell brand | Germany brand TECSIS load cell |
Motor | 400w Panasonic servo motor |
Driver | 400w Panasonic servo driver |
Screw | High precision ball screw |
Control way | Panel control (touch screen), connected to computer |
Adjustable speed | 0.1-500mm/min |
Vertical test space | 900mm (including clamp) |
Load resolution | 1/250,000 |
Load accuracy | ≤0.5% |
Unit switching | gf/kgf/N//kN/LBf/T |
Dimension | （L*W*H）520*515*1250mm |
Suttle weight | About 70KG |
Power | AC 220V |
