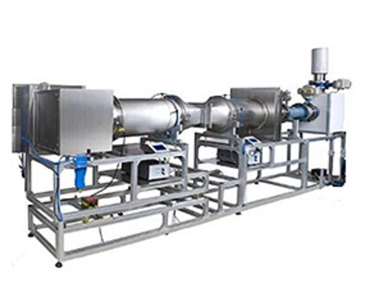

DOLOMITE DUST CLOGGING TEST
Application
It is mainly used to test the amount of dust collected on the filter when the airflow passes through the filter by way of inhalation in a certain dust environment to test the respiratory resistance and filter penetration of the sample when a certain respiratory resistance is reached force.
Standard
EN149—8.10, EN143
Features
1. Equip with humidifier and heater to control exhalation temperature and humidity;
2. Touch screen control, simple and convenient operation;
3. Equipped with a dust generator, which can automatically control dust concentration, flow and linear velocity;
4. A variety of fixtures can be used together, suitable for testing most respirators and masks.
Technical Parameters
Cross section of dust test chamber | 650*650mm |
Test cabin airflow | 60m3/h, |
linear velocity | 4cm/s |
Dust concentration | 400+100mg/m3 |
Dust concentration sampling rate | 2L/min |
Breath simulator displacement | 2L(adjustable) |
Respiratory simulator frequency | 15times/min(adjustable) |
Vacuum pump air flow | 95L/min(adjustable) |
Dust medium | dolomite powder |
Exhalation temperature in the mask | 37+2℃ |
Relative humidity | 95% |
Dimensions | 4000*820*1060mm |
Power | AC 220V 50Hz |
