Battery Pack Short Circuit Tester1

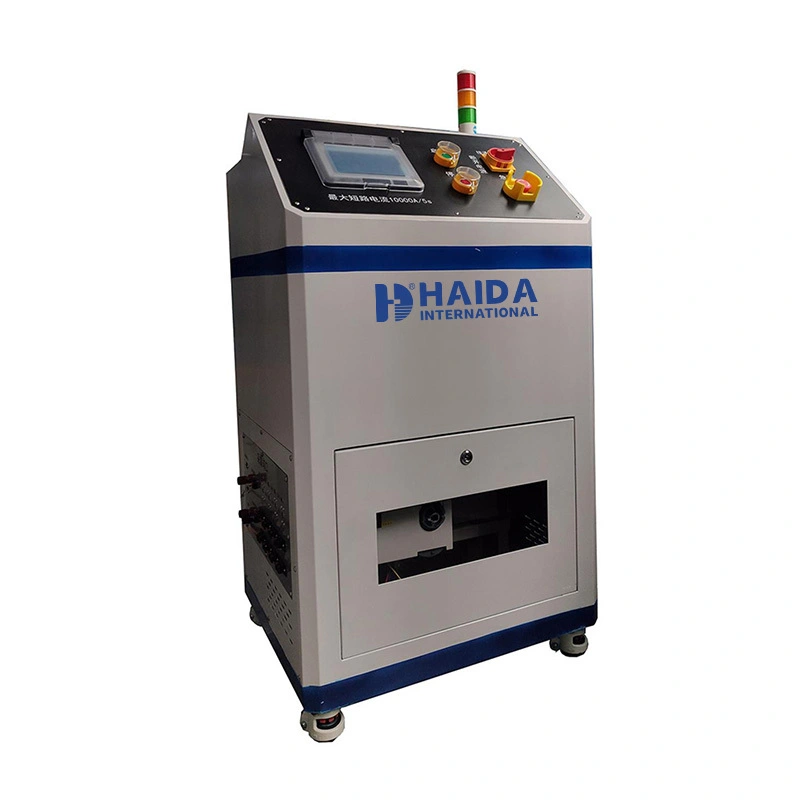

Battery Pack Short Circuit Tester
FEATURES
1. The device has three relatively independent control modes: remote PC+ on-site touch screen + remote control. The parameters such as current, voltage and temperature can display the record.
2. There are total voltage, cell voltage, temperature, data record and data curve, etc.
3. High current short circuit switch power is small, energy saving and environmental protection, with double protection system, and intelligent temperature protection, arc extinguishing and rust prevention
4. Remote control monitoring system All control parameter settings, data acquisition, video recording can be operated by a computer with a distance of >30m;
5. The equipment can be tested with domestic and foreign standards such as GB31241, GB/T31485, GB/T314673, IEC62660-2018.
STANDARD FEATURES
Model | HD-H201-1 | |
External dimension(W*D*H) | 780*880*1400mm | |
Short circuit way | Ambient temperature | |
Short circuit current | 16000A | |
Control cabinet internal resistance | <1mΩ | |
Resistance box (optional) | Resistance range | 5-100mΩ adjustable |
External dimension | 1600W*1500D*1800Hmm | |
Control way | Touch screen + remote PC control | |
Current | Precision | ±0.5%FS |
Sampling period | 0.1-100ms | |
Power supply | AC220V | |
Arc extinguishing device | Vacuum arc extinguishing (high current short circuit switch) | |
300,000 times | ||
Electrical life | Resistive load 50,000 times | |
Heat dissipation method | Air cooled | |
Observation port | Have | |
Voltage acquisition | Voltage | 0-10V; 0-100V; 0-1000V |
Number of channels | Standard 8 Road (according to customer needs) | |
Precision | 0-10V: 0.15%F5; 0-100V: 0.3%FS; 0-1000V: 0.3%FS; | |
Temperature collection | Temperature range | 0-1300℃ |
Number of channels | Standard 8 Road (according to customer needs) | |
Precision | ±2.5℃ | |
