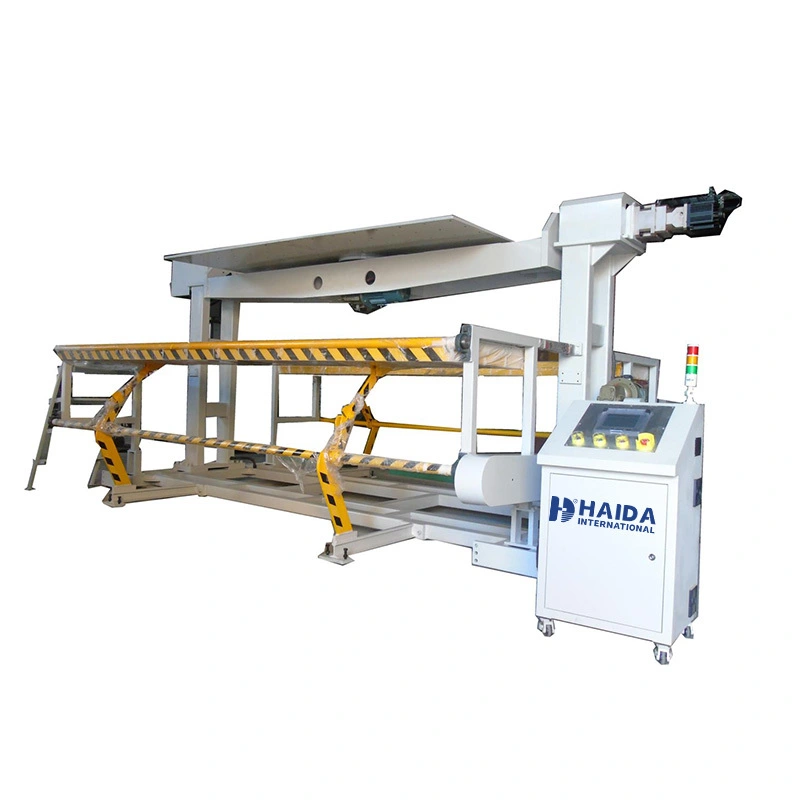

Battery Pack and Module Flip Tester
Battery Pack and Module Flip Tester
APPLICATION
Can be completed the flip test of various power batteries for automobiles, including lead acid, nickel hydrogen, lithium ion, zinc air, super capacitor, etc.
STANDARD
Meet the requirements of GB/T31467.3, ISO12405 and other standard battery pack flip test.
STANDARD PARAMETERS
Model | HD-H212 |
Maximum test weight | 2000KG |
Internal Size (W*D*H) | 2500*1500*1000mm |
External Size (W*D*H) | 4500*2500*2400mm |
Rotation angle | 0-360° |
Control precision | 0.5° |
Spinning speed | Adjustable from 1°/s to 12°/s, default 6°/s |
Speed control accuracy | 0.5°/s |
Direction of rotation | X-axis, Y-axis, free to switch |
Control way | On-site touch screen (independent control cabinet) + remote PC control |
Flip platform size | 2500*1500*100mm (can be customized) |
Equipment structure | open type |
Alarm function | Foldable three-color lamp, abnormal operation alarm |
Protective function | Upper and lower limit protection, foolproof function, safety fence, ladder |
Equipment material | Channel steel + cold-rolled steel plate, painted, color is standard warm gray 1C (color can be customized) |
Ground bearing | Requires solid ground, bearing 1T/m3 |
Power supply | AC380V |
