Battery Cell Fire Tester1

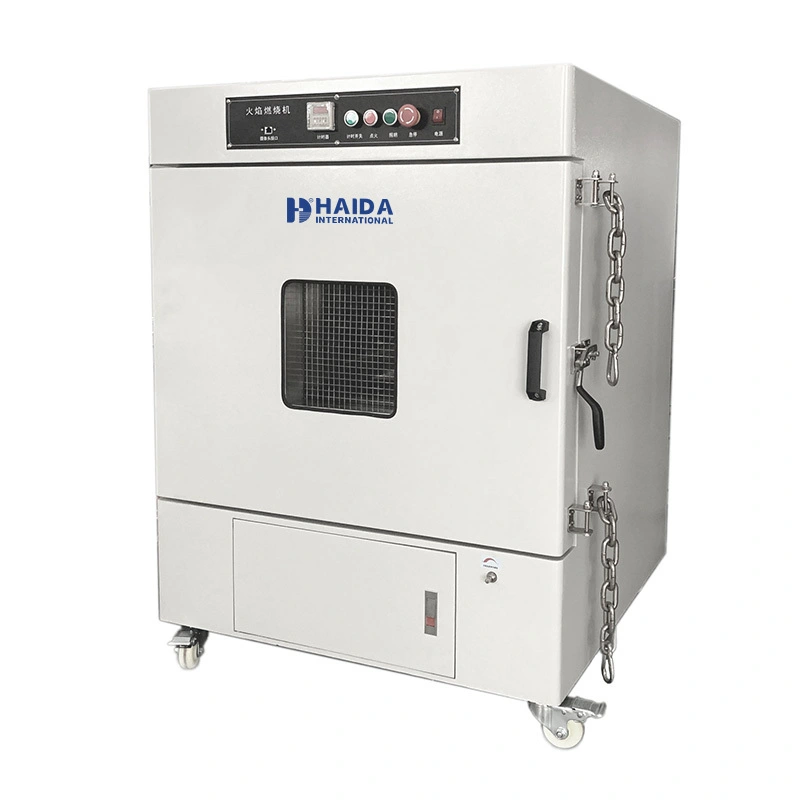

Battery Cell Fire Tester
APPLICATION
According to the temperature required for firing the battery, there are 3 intervals: 300-600℃; 600-900℃; 900-1200℃, the overall design of the combustion equipment for the first selected temperature point in the three intervals for locked combustion.
STANDARD PARAMETERS
Model | HD-H214 | |
Temperature range | Interval A | 300-600℃ |
Interval B | 600-900℃ | |
Interval C | 900-1200℃ | |
Precision | ±20℃ | |
External Size (W*D*H) | 900*1140*1200mm | |
Console size (W*D*H) | 600*400*1200mm | |
Applicable battery specifications | EV steel shell | |
Compatible product range (W*D*H) | 400*400*200mm | |
Battery weight | ≤20KG | |
Burning time | 1s-60000s | |
Flame height | 100-150mm | |
Equipment structure | Open front and rear | |
Lighter | Automatic high pressure package ignition | |
Air supply method | Automatic air supply to meet different oxygen levels | |
Insulation material | High temperature resistant fire rock wool | |
Wind speed | Automatic control | |
Alarm function | Foldable three-color lamp, abnormal operation alarm | |
Protective function | Limit protection, foolproof function, safety protection | |
Equipment material | Aluminum profile + cold rolled steel plate, painted, color is standard warm gray 1C (color can be customized) | |
Combustion gas | gas | |
Ground bearing | Requires solid ground, bearing 1T/m3 | |
Power supply | AC220V | |
