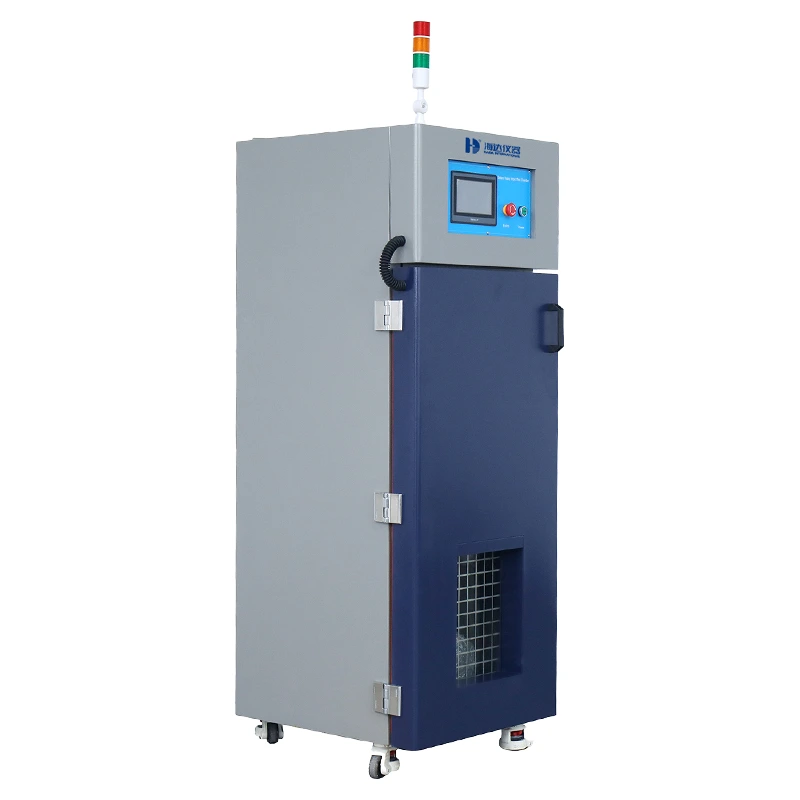

Battery Impact Test Chamber

Weight weight

9.1kg and 10kg;

Impact height

0-1000mm (can be set);

Height display

LED meter display;

Displacement accuracy

≤±5mm;

Impact method

free fall;

Control mode

PLC touch screen control;

Impact floor material

No. 45 steel, thickness 30 password;

Metal rod

15.8±0.2mm (5/8 inch) steel rod;

Internal material

SUS#304 stainless steel plate, thickness 1.2mm; Teflon melt adhesive tape is applied to 1/3 of the place, high temperature resistance, corrosion resistance, insulation and easy to clean.

External material

Cold-rolled sheet baking varnish treatment, thickness 1.5mm;

Pressure relief door size

200x200mm;

Smoke exhaust pipe

Diameter φ100mm, located at the back of the box;

Box door

A single door opens to the left, and an explosion-proof chain is installed on the side of the box door;

The maximum size of the battery tested

200x200x200mm (width x depth x height);

Inner box size

490x520x1430mm (width x depth x height);

Dimensions

700x1000x1720mm (width x depth x height, including door lock);

Impact method

Lift the falling ball to a certain height and release it, and the falling ball falls freely in the vertical direction, without tilting or shaking;
