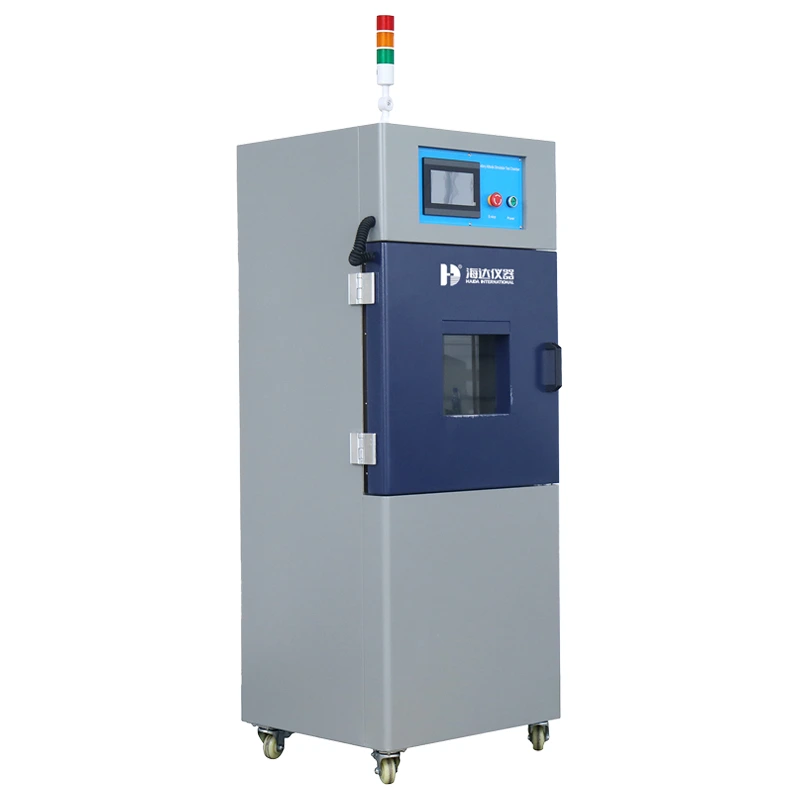

Battery High Altitude Low Pressure Simulation Test Chamber

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-H204

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

Battery High Altitude Low Pressure Simulation Test Chamber

Description

The test chassis is designed for UL, EN, IEC and other standard test requirements to achieve the low pressure storage state of the sample in a short period of time, can automatically control the test cycle, the whole process of monitoring the change of air pressure in the box, to achieve the automatic termination of the test. Simulate the battery and battery pack in the pressure is equal to or less than 11.6kPa and the ambient temperature is (20 ± 5) ℃ storage conditions for 6 hours, the battery to not explode and not fire as qualified.

Standard:GB/T 31485-2015.GB/T 31241-2014.UN 38.3.IEC 62133.UL 1642:2012

Product Features

Indicators	Parameters
Inner box size	400400400mm (WDH)
Equipment size	6306201130mm (WDH)
Inner box material	SUS304 stainless steel plate, 3.0mm thick
Outer box material	Cold-rolled steel plate baking paint treatment, 1.5mm thick
Viewing Window	Size 250*250mm two layers of tempered glass, transparent window with stainless steel mesh
Equipment Mobility	The bottom of the equipment has four universal casters, which can be moved freely
Pressure range	0.5-100kPa, commonly used test air pressure 11.6 kPa
Vacuum level display	SMC meter digital display type
Control method	Push-button control
Timer	LED digital display, free setting within 0-9999h
Pressure fluctuations	≤5%
Box door	Single door with left opening and explosion-proof chain on the side of the door
Storage tray	2
Equipment weight	120kg
Power supply	AC220V
Power	1kW
