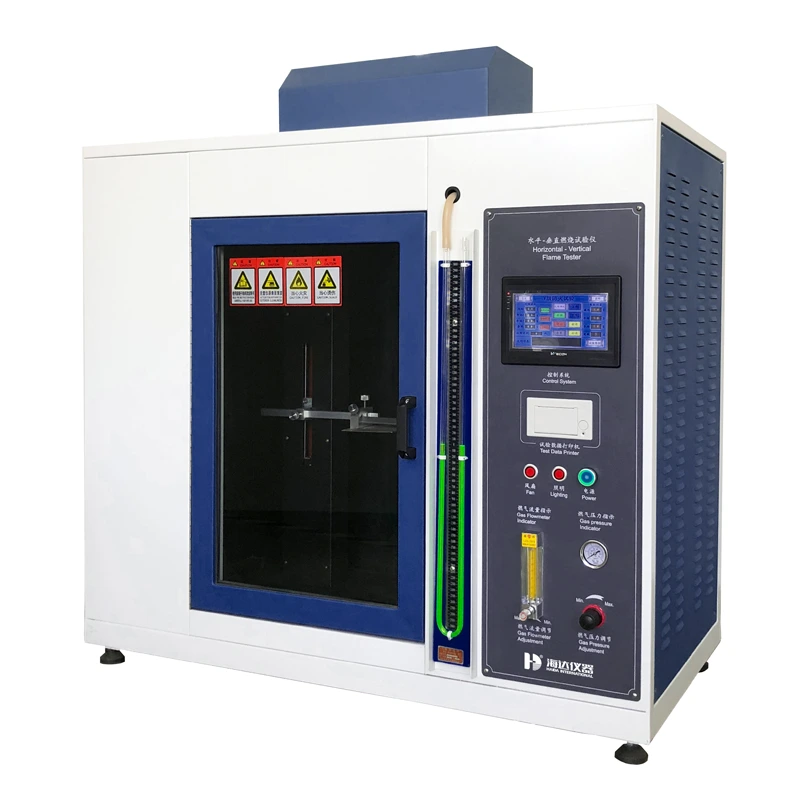

PLC Control Horizontal <000000> Vertical Burning Test Apparatus
This apparatus is designed to evaluate the burning characteristics of plastic materials in accordance with UL 94 (Flammability of Plastic Materials for Parts in Devices and Appliances).
وصف المنتج
This apparatus is designed to evaluate the burning characteristics of plastic materials in accordance with UL 94 (Flammability of Plastic Materials for Parts in Devices and Appliances). It conducts horizontal and vertical flammability tests on plastic components, featuring:
Motorized operation for safety and ease of use.
PLC + 7-inch color LCD touchscreen for intuitive control.
Built-in printer to record test conditions and results.
Compliance Standards:
UL 94, GB/T 2408, IEC 60695-11-4, GB/T 5169.22, IEC 60695-11-3, GB/T 5169.15, IEC 60695-11-10, GB/T 5169.16, UL 60065
منتج تحديد
| نموذج | 6018-HD |
| نظام التحكم | 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with test data printer. |
| نظام العرض | Real-time monitoring of ignition time, flame application time, afterflame time, afterglow time, and test cycles. Controls include fixture adjustment, gas supply, and ignition. |
| حجم الغرفة | ≥0.75 m³, with glass observation door |
| Test Timing | Adjustable: 0–99 minutes 99 seconds for: Flame application time, Afterflame time, Afterglow time |
| Burner Angle | Adjustable: 20°, 45°, 90° (vertical) |
| مواصفات الموقد | Nozzle inner diameter: Ø9.5±0.3mm; Effective length: 100±10mm; Equipped with air adjustment holes. |
| Fuel Gas | Industrial-grade methane (≥98% purity, user-provided). |
| ارتفاع اللهب | Adjustable: 20mm–175mm (standard-compliant) |
| الميزات الرئيسية | Integrated lighting, exhaust system, gas flow/pressure regulators, pressure gauge, U-tube manometer, and sample fixture. |
| مزود الطاقة | AC 220V, 50Hz |
