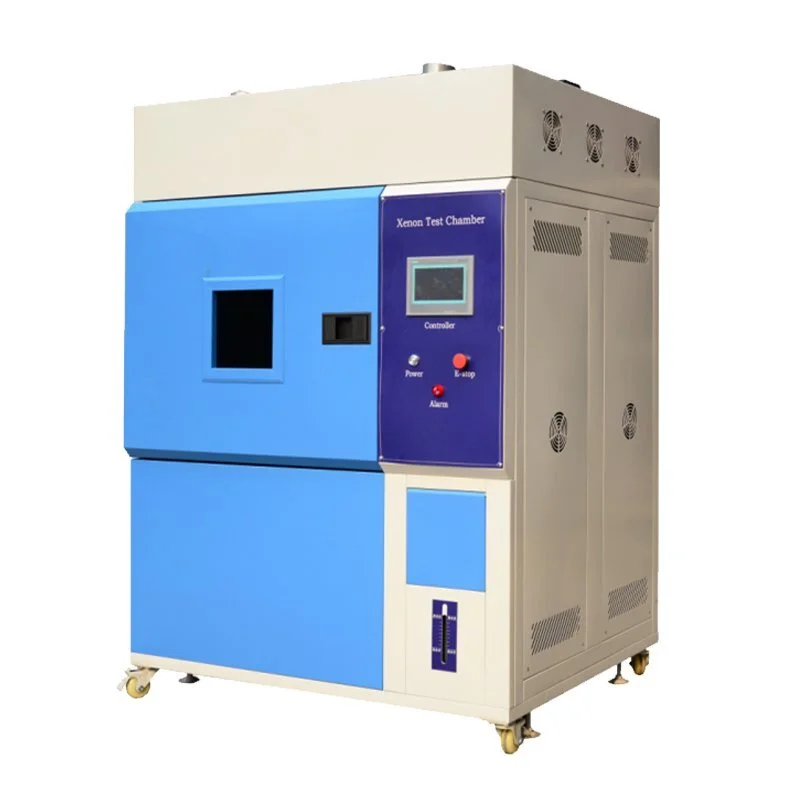

Xenon weather aging chamber

Xenon weather aging chamber

Xenon weathering aging chamber video                        Xenon weathering aging chamber pdf

Product Description;

Xenon weather aging chamber is a comprehensive climate test chamber, from light energy, temperature, the main climatic factors, such as rainfall, humidity or condensation, are simulated and intensified, and the product can provide environmental simulation and accelerated aging testing for research product development and quality control, and can be used in the selection of new materials, improving the durability of materials or evaluating material composition changes after testing.

Advantage:

1. Xenon lamp power: 1.8KW * 3pcs = 5.4KW
2. Irradiance strength: 0.51W/m²@340nm

3. Control system: LCD programmable controller
4. Filter: Window glass filter / daylight filter

5. Light source: Air cooled long arc xenon lamp
6. Internal Dimension (W*D*H): 700*500*600mm
7. Chamber humidity range: 55%~90% RH

8. Chamber temperature : 35℃~90℃

Main Feature:

1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system

2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.

3, Temperature sensor: PT100 platinum resistance thermocouple.

4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.

Main Parameter:

1. Internal Dimension (W*D*H): 700*500*600mm

2. External Dimension (W*D*H): 1350*1300*1850mm

3. Internal chamber material: SUS 304 # Stainless Steel, anti-rust

4. External chamber material: Cold-rolled steel with spray

5. Chamber humidity range: 55%~90% RH

6. Chamber temperature : 35℃~90℃

7. Black panel temperature: 45℃~95℃, adjustable

8. Temperature uniformity: ≤±3℃

9. Filter: Window glass filter / daylight filter

10. Light source: Air cooled long arc xenon lamp

11. Xenon lamp power: 1.8KW * 3pcs = 5.4KW

12. Irradiance strength: 0.51W/m²@340nm

13. Control system: LCD programmable controller

14. Auto display irradiance, capacity: 100 groups program, 99 cycles.

15. Illumination time: 1~999 hours, adjustable

16. Water spray system: Water spray time 999 minutes settable

17. Interval spray time, 1~240 minutes settable

18. Sample holder: Stainless steel, 1pc

19. holder to lamp : 250~300mm

20. Heating: Nickel-chromium alloy electric heater

21. Humidification power: Stainless steel surface evaporative humidifier

22. Insulation materials: Supper fine glass fiber

23. Temperature sensor: PT100 high precision sensor

24. Air circulation system: Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity

Controller system:

The Xenon weather aging chamber have a powerful intelligent aging test control system for operations and aging testing.automatic temperature and humidity controller with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

Standard accessories:

Xenon lamp x 3pcs;

Humidification cotton x 5pcs;

English user manual x 1pc;

Operation video x 1pc

Our Services：

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

1. Pre-service

   --24 Hours online service for your consult.

   --Help choose right model,and a series of service,person,advise.

2. Middle service

    --Give you best offer

    --Provide discount for many sets order

    --Do customer's request:

    --Choose payment term you convienent.

    --Promptly production and delivery,inform you in time.

    --Can provide invoice value as you like to decrease your tax.

3. After sale service ：

   --1 year warranty service and all life maintenance.

   --Technical Egineer are avalible for oversea trainning.

   --Free change for some parts

   --Remote control technical consult

   --Free installation DVD

   --Maintenance plan

4,Commitment:

   We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

5,Good Packaging:

  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
