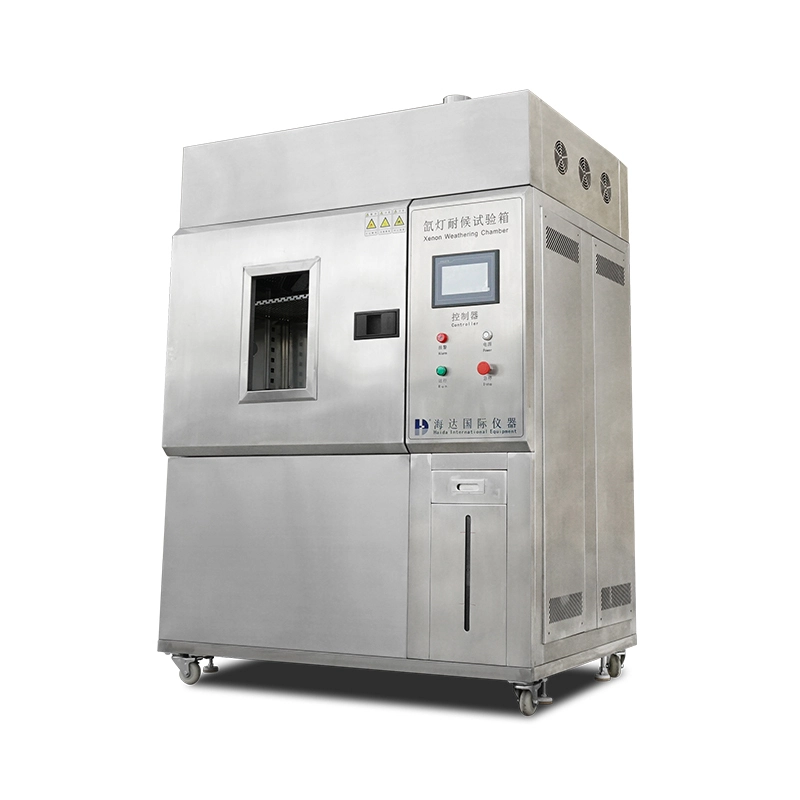

Xenon ARC Aging Chamber

Xenon ARC Aging Chamber

xenon aging chamber video                      xenon aging chamber pdf

Description:

Xenon ARC Aging Chamber is specifically for the product to do accelerated aging testing equipment.Xenon ARC Aging Chamber can simulate the full spectrum of sunlight and destructive light waves. It is especially suitable to detect the accelerated aging of outdoor products. And the device is configured with only control systems. Accurate control of the temperature, humidity, light intensity and so on, and can set up 999 cycles of testing. Simple operation, temperature, humidity and light intensity change fast. Save time.

Main Feature:

1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system

2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.

3, Temperature sensor: PT100 platinum resistance thermocouple.

4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.

Main Parameter:

1. Internal Dimension (W*D*H): 800*800*800mm

2. External Dimension (W*D*H): 1450*1500*2000mm

3. Inner chamber material: SUS 304 # Stainless Steel, Anti-rust, easy to clean

4. Outer chamber material: Stainless steel

5. Chamber Temperature: 40±3℃

6. Temperature Uniformity: ≤3℃

7. Blank panel temperature: 65±3℃

8. Humidity Range: 50%-90%

9. Irradiated intensity: 0.35±0.02w/m²at 340nm

10. Xenon lamp power: 6.5KW water-cooled xenon lamp x 1pc

11. Control system: PLC controller, touch screen

12. Distance from specimen to arc center: 250~300mm, Effective exposure area 6400cm2

13. Max. Sample dimension: 200*90mm Thickness＜20mm

14. Filter: Daylight filter

15. Door seal: Silicone rubber seal

16. Temperature sensor: PT100 high precision temperature sensor

17. Air circulation system: Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity

18. Cooling ventilator: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system

19. Cooling ventilator: France Tecumseh compressor

20. Power: AC380V, 50Hz, three phase

Test methods and parameters as per standard ASTM D 4355:

Safety Protection:

Over heat protection for fan,

Over load protection for cooling system,

Over pressure protection for cooling system,

Over temperature protection,

Over heat and over flow protection for water pump,

Leakage protection, Water shortage protection,

Auto stop after failure warning

Our Services：

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

1. Pre-service

   --24 Hours online service for your consult.

   --Help choose right model,and a series of service,person,advise.

2. Middle service

    --Give you best offer

    --Provide discount for many sets order

    --Do customer's request:

    --Choose payment term you convienent.

    --Promptly production and delivery,inform you in time.

    --Can provide invoice value as you like to decrease your tax.

3. After sale service ：

   --1 year warranty service and all life maintenance.

   --Technical Egineer are avalible for oversea trainning.

   --Free change for some parts

   --Remote control technical consult

   --Free installation DVD

   --Maintenance plan

4,Commitment:

   We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

5,Good Packaging:

  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
