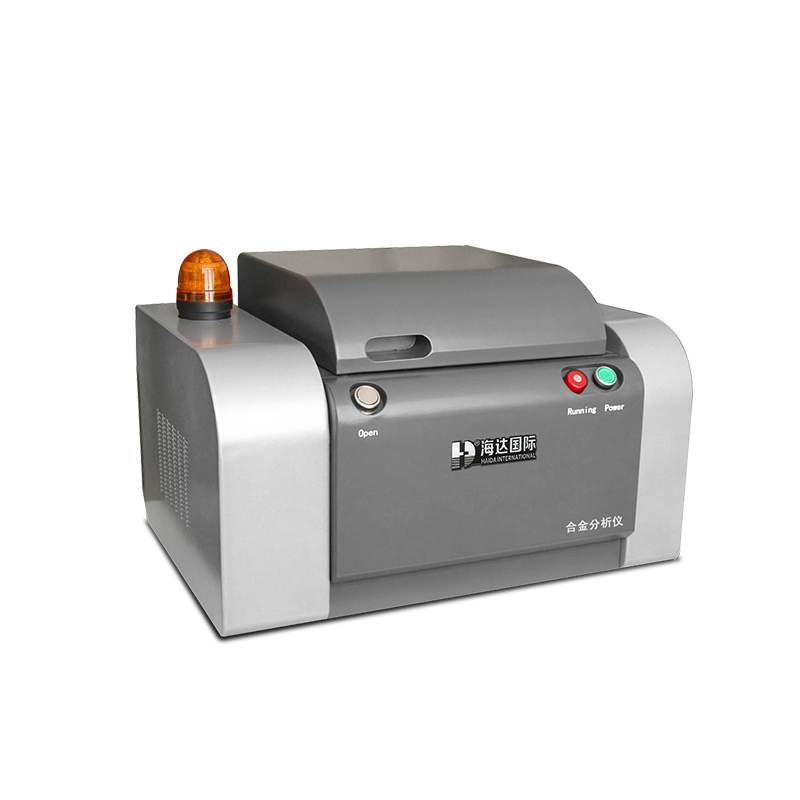

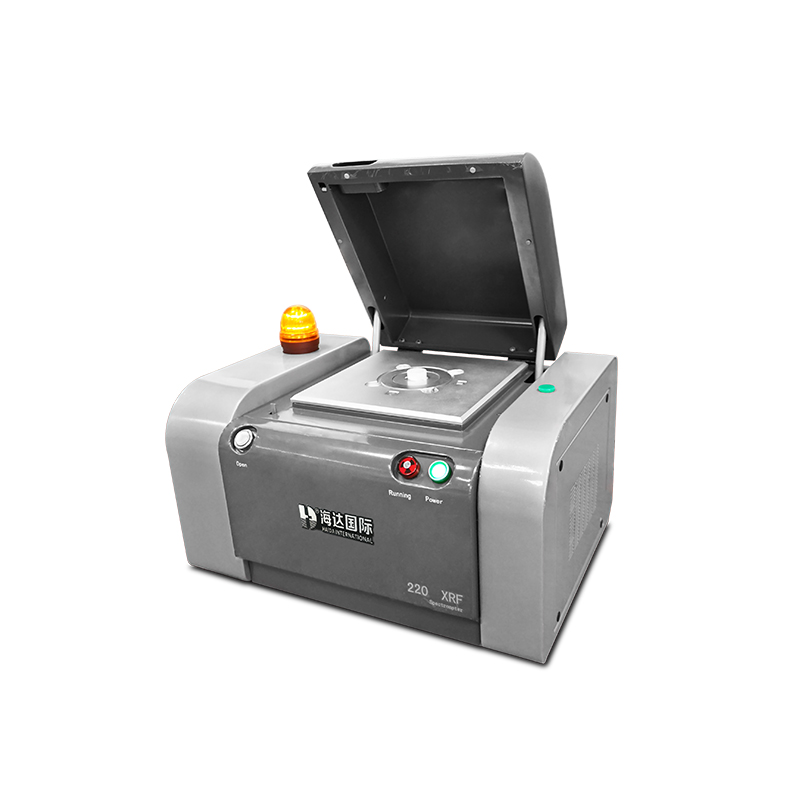

X-ray Testing RoHS Analyzer

xrf Analyzer

This machine has advantages of triple radiation protection system, humanized operation interface; comprehensive application of empirical coefficient method & fundamental parameter method V8.0 analysis software. Element measuring range is from Na to U, which can test Pb, Cd, Hg and PBB in the RoHS regulations; Br in PBDE; Cr in Cr6+; Cl and Br in the Halogen-free regulations. It can completely meet the control demand of RoHS/WEEE/Halogen-free. Our machine with spectrum comparison function is used for real time tracing material change and warning in time. It has the incomparable advantage for RoHS/Halogen-free control.

 xrf spectrometer xrf machine

XRF MACHINE'S STANDARD FEATURES xrf spectrometer xrf machine

 xrf spectrometer xrf machine

XRF MACHINE'S MAIN CONFIGURATION OF INSTRUMENT

 xrf spectrometer xrf machine

XRF MACHINE'S Sofaware

XRF MACHINE'S INSTRUMENT FEATURESxrf spectrometer xrf machinexrf spectrometer xrf machine

1. Triple radiation protection system (software, hardware, Labyrinth design) protect operator from radiation harm;

2. Adapting new design with optical path, which maximally solves negative effect of air optical path for Cl element measurement to guarantee Cl element stability;

3. The new optimized V8.0 analysis software can auto set the ray tube power according to the sample material, shape and size. It can prolong the life time of ray tube and also fully play detector’s function and increase measurement precision greatly;

4. Combined with series of advanced spectrum processing method including FFT, precise background deductive method, automatic peak search and Quasi-Newton optimize calculation etc;

5. International advanced XRF analysis software which combines with several traditional analysis method such as empirical coefficient method and the fundamental parameter method (FP method),  theoretical α coefficient method and so on, guarantees the precision of measuring data;

6. Software can issue report by format Excel, PDF;

Universal Testing Machine Series

Universal testing machine can be stretched, bending, compression, shearing, ring stiffness and other functions in one of the material testing machine, mainly used in metal, non-metallic materials mechanical Properties test, is the industrial and mining enterprises, scientific research units, tertiary institutions, engineering quality supervision stations and other departments of the ideal testing equipment
