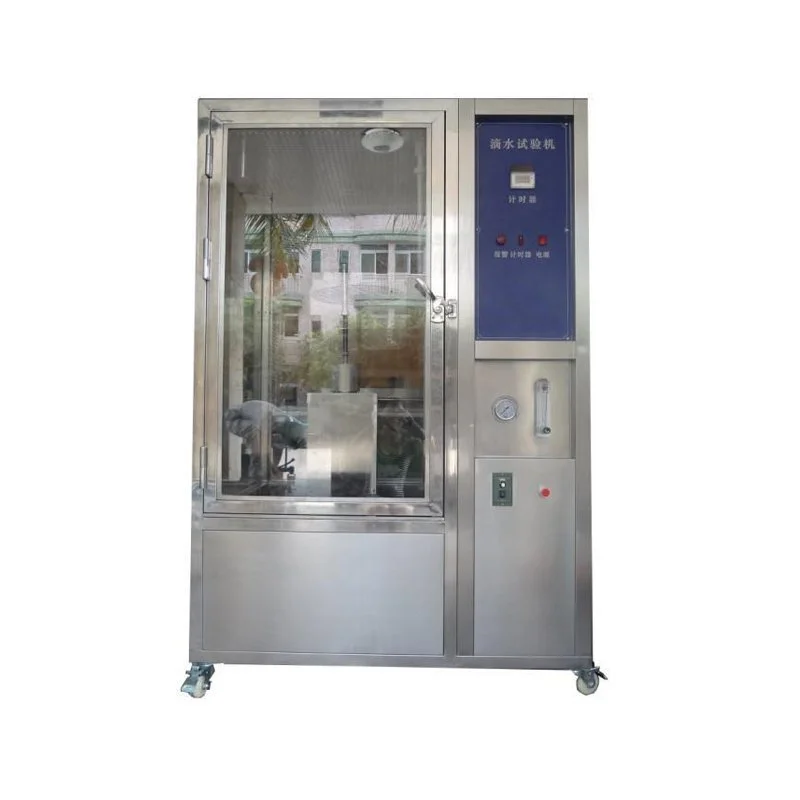

Water drip test chamber with ipx1 ipx2
Water drop test chamber with ipx1 ipx2
PRODUCTION INTRODUCE:
Water drip test chamber with ipx1 ipx2 for exterior lighting and signaling devices and automotive protective shell lamps, can provide realistic simulation of electronic products and Components during transport and use may be subject to various environmental and water spray sprinkler test. In order to achieve the waterproof performance testing of various products
Box structure:
Tank shell material made of high quality stainless steel hairline, Water drop test chamber liner material stainless steel light board. Large sight glass door for easy observation test cabinets test sample status.
Bottom of the chamber can be fixed with high quality PU wheels, user-friendly move.
It has a 270 degree swing pipe and 360-degree rotating rod Sprinklers.
Adjustable speed of the sample stage.
Control System:
Box-type rain chamber adopts imported inverter speed control to ensure the test standard.
Equipped with water filter
STANDARD FEATURES
Item | Specification |
Inner Chamber size(W*D*H) | 1000*1000*1000mm(can be customized) |
Internal Chamber size(W*D*H) | 1200*1400*2100mm |
Chamber material | Stainless steel #304, Waterproof Toughened glass observation window |
Sample turntable | Diameter 500mm |
Turntable rotation speed | 1~10r/min, height can be adjusted |
Water drop speed | 1 or 3mm/min, can be adjusted |
Drip box size | 400*400mm |
Distance from drip box to specimen surface | 200mm |
Water drop hole diameter | 0.4mm |
Distance from water drop hole | 20mm |
Test duration | 1~999,999min, adjustable |
Turntable angle for IPX2 | 15° inclined on either side of the vertical in two mutually perpendicular planes |
Safety protection device | Leakage, short circuit, motor over temperature… |
Controller
A programmable logic controller (liquid crystal display)
Pendulum tube angle
Drive stepper motor using PLC (arbitrarily set angle and display)
Flow display
Precision plexiglass flowmeter
Observation plane
A large area of visualizing glass door
water supply system
Storage tanks, booster pumps
