LED IPX5 Rain Test Chamber
LED IPX5 Rain Test Chamber
Product description:
LED IPX5 Rain Test Chamber is used to test the water resistance; which is mainly for electronic and electrical products. It can also provide references for product design and quality control.
Technical parameters:
Item | Specification |
Internal chamber size | 1200Wx1200Dx1200Hmm |
External chamber size | 1600Wx1400Dx3500Hmm |
Internal diameter of the nozzle | 6.3mm |
Delivery rate | 12.5l/min±5% |
Core of the substantial stream | Circle of approximately 40mm diameter at 2.5m distance from nozzle |
Chamber material | Internal: SUS304 stainless steel, external: stainless steel |
Test duration per square meter of enclosure surface area likely to be sprayed | 1 min |
Minimum test duration | 3 min |
Controller | PLC touch screen |
Distance from nozzle to enclosure surface | Between 2.5m and 3m |
Sample rotatory table | Diameter 500mm, rotation speed adjustable |
Power | AC380V, 50Hz, three phase |

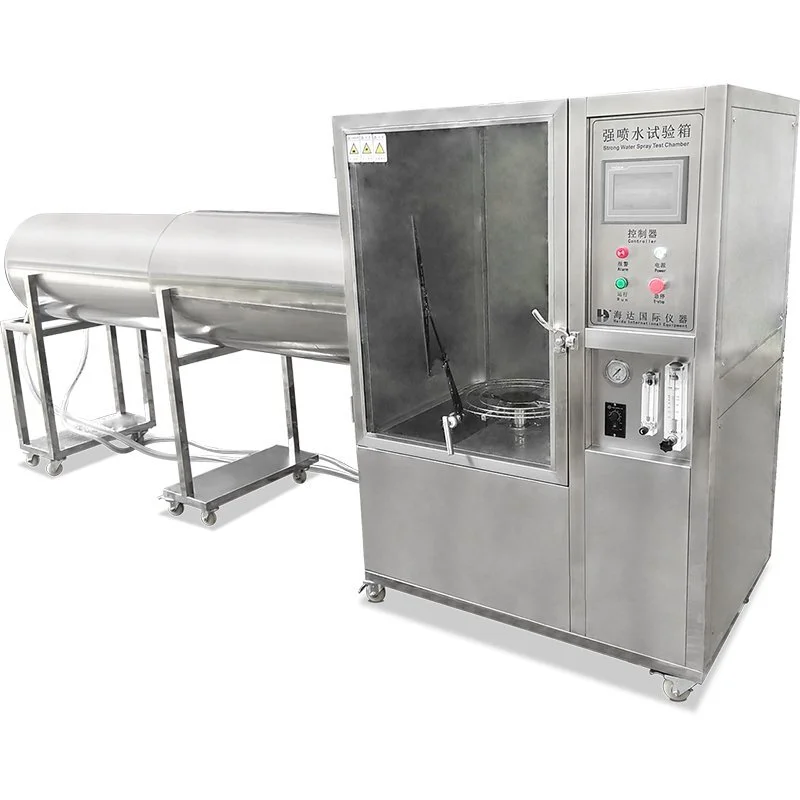

LED IPX5 Rain Test Chamber Image
