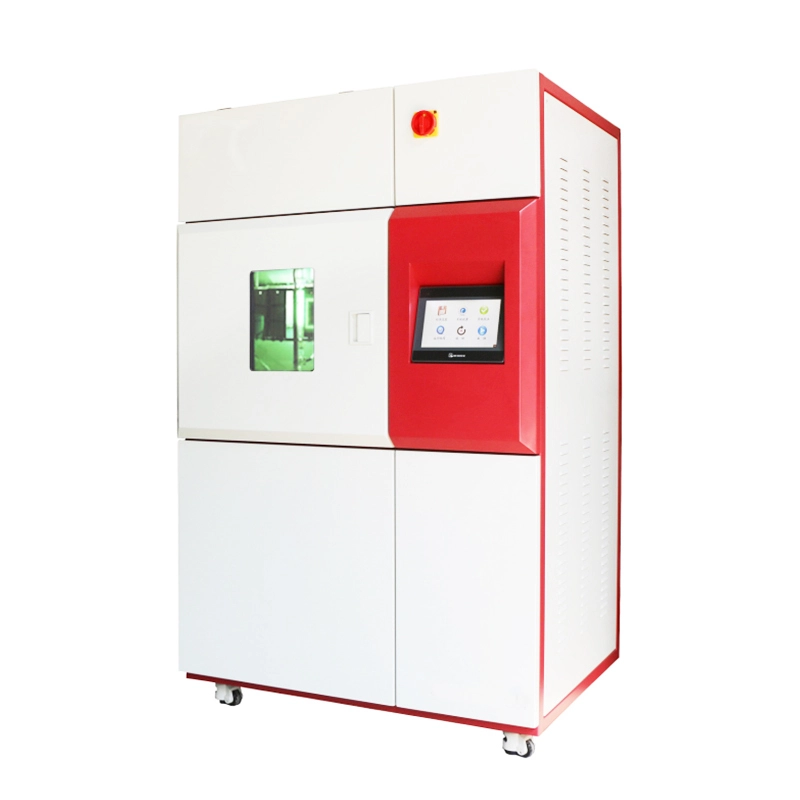

Water Cooling Light fastness tester (xenon arc)

Application

Used in rubber, plastics, paints, coatings, petrochemicals, automobiles, textiles and other industries and materials for solar radiation simulation of light color fastness, flashing color fastness and photoaging, through simulation of light, rain, spray The climatic conditions such as light and dark alternation, temperature and humidity, etc., to determine the fading, aging, fading, transmittance, peeling, hardening, softening and other performance changes of the material.

Testing standard

AATCC 16.3

EN ISO 105 B02

Features

1. It adopts 6000W water-cooled long-arc xenon lamp, which is the first in China to achieve high-efficiency electric energy and light energy conversion technology. It cooperates with high-transmittance filter system to achieve lower energy of irradiation energy xenon lamp, which makes the machine truly energy-saving and environmentally friendly.

2, Standard 420nm band, optional 340nm, 300-400nm, 280-800nm band monitoring, irradiance digital setting, real-time monitoring, automatic adjustment, to meet the stability requirements of different standards for test light source.

3. Irradiance uses optical fiber technology to guide light, 16-bit AD sampling, after 32-bit CPU processing, digital setting, AC variable frequency stepless adjustment xenon lamp, fully realize closed-loop stable automatic compensation.

4. The instrument uses the standard lamp to calibrate the patented technology, which can completely eliminate the aging of the irradiance acquisition system due to long-term test.

5. The blackboard thermometer (BPT), the standard blackboard thermometer (BST) and the sample station (isometric) are tested to reflect the measured condition of the sample.

6, Intelligent cycle adjustment system, ultrasonic and PTC dual humidification, circulating wind speed servo motor control, so that the test chamber temperature, humidity and blackboard temperature to achieve closed-loop control, to ensure that the test parameters for a long time stable output.

7. Cooling water is mixed with internal circulation and energy-efficient heat exchange system to save water consumption and reduce operating costs.

8, 10.4 inch touch screen display control, Chinese and English operation interface, a variety of experimental monitoring mode (animation, digital, chart), multi-segment operation mode programming, support online programming without downtime, easy to operate, intuitive and clear.

9. All sample holders can be timed separately, and the same time experiment can be carried out at different times of the sample, which is convenient for test monitoring, reducing operating cost, running time and separate timing can be powered off to prevent accidental power failure.

10,The instrument is equipped with a communication interface, can provide A4 Chinese printing (optional).

Products parameter:
