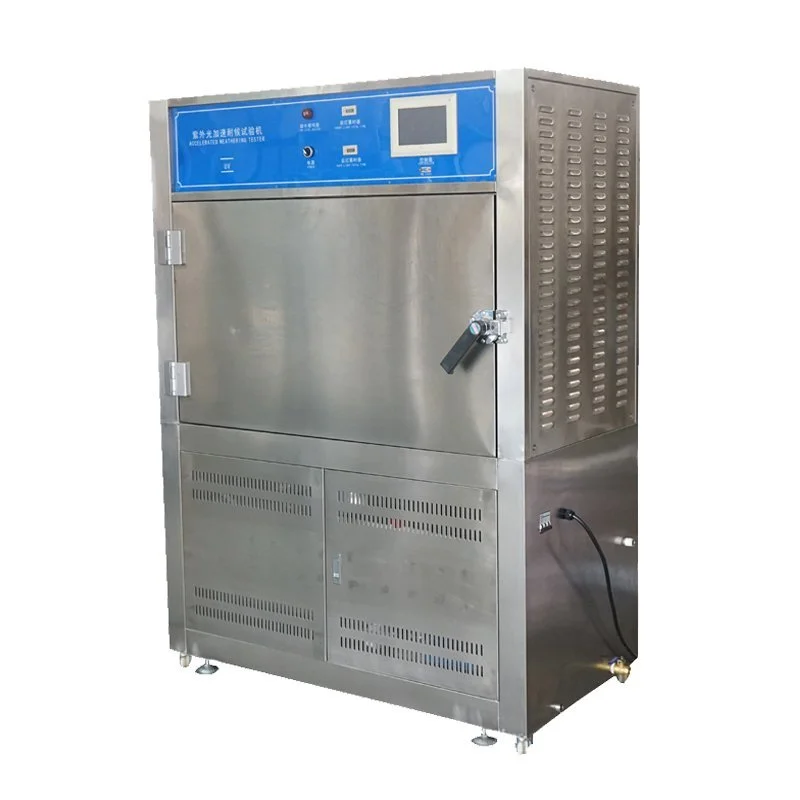

UV Aging Chamber UVA
UV Aging Chamber
The UV Chamber Description:
The aging test project refers to the process of strengthening the experiment in the condition that the products are related to the aging condition. The UV Aging chamber simulates the damaging effects of sunlight, moisture and temperature on the material, especially for testing the durability of outdoor products or materials.
The UV Aging chamber is able to perform accelerated aging tests on the strengthened UV environment. Imported Atlas 40w/piece UV lamp, UV: 315-400nm (8pcs, 1600h lifetime), test ambient temperature, humidity can be set in intelligent control system. The rate and capacity of water spraying can be set.
Application Industry (not limited to the following):
Paint ink paint
resin
plastic
Printing
packaging
aluminum
adhesives
Motorcycle industry
cosmetics
Metal
electronics
electroplating
medicine
Applications Details:
1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
Sell point:
1. Sample rack height adjustable, measured irregular shape of the sample
2. Shell liner are made of high quality stainless steel, the sample frame for the aluminum frame frame frame and extension of the spring composition
3. Programmable controller, LCD touch screen
4. Bilateral drainage system. To ensure that the box clean, not wet.
5. About four lamps, the sample put on both sides of the box
6. Intelligent protection system
7. Exposure, condensation and water spray test cycle is programmable
Test Criteria:
ISO 4892-3,ASTM G154...
Standard Features:
Item | Specification |
Internal dimension (W*D*H) | 1140*650*500mm |
External dimension (W*D*H) | 1340*700*1800mm |
Chamber material | SUS#304 stainless steel |
Temperature range | RT to 70℃ |
Temperature fluctuation | ≤±1.0℃ |
Temperature uniformity | 3℃ |
Humidity range: | ≥75%RH |
Controller | Programmable controller, LCD touch screen |
Control mode | Balance temperature humidity control (BTHC) |
Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
Water spray cycle | Spray 18mins in every 120mins / spray 12mins in every 60mins |
Water usage | 8L/day |
Distance from sample to lamp | 55±2mm |
Centre distance between lamps | 65~70mm |
Irradiance range | 0.45~0.90W/m2 |
UV lamps | Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime) |
Lamp power | 40W/Piece |
Specimen Size | Irregular sample |
Testing time | 0~999H, adjustable |
Protection system | Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection |
Protection system:
The UV aging test protection system can optimize the operation way, eliminate the test part risk, ensure the data is accurate, it is important to protect the sample and the use time of the UV aging chamber.The following several protection system features are we after 10 years of industry experience, and customers in a timely manner to communicate the latest UV aging chamber upgrade function. To provide customers with the latest and most personalized service.
1. Overload short circuit protection
2. Over temperature protection
3. Water lacking protection
4. Earth leakage protection
5. Auto shut off protection
Pictures Show:
