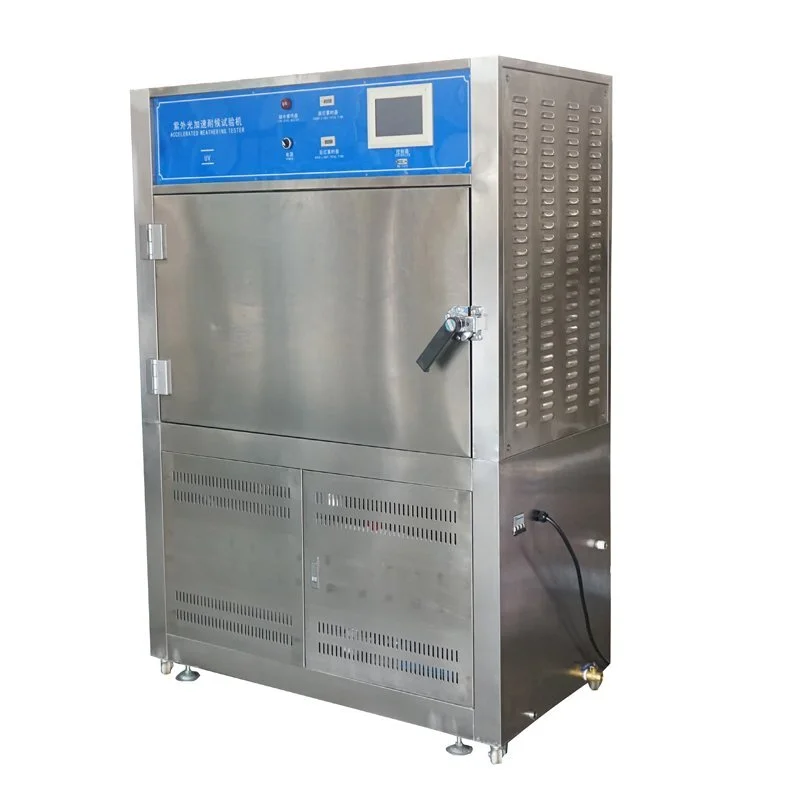

UV Aging Test Chamber
product overviews:
UV aging test chamber can be simulated by sunshine, rain and dew of the damage material, QUV used jade-like stone ultraviolet (UV) light lamp mimic the effects of the sun, the use of cold rain and dew moisture, the tested material is placed in a certain temperature under light and moisture test in alternate cycle program.for Solar lights, garden lights, buried lights, tunnel lights, car lights, fountain lights, the display and led lights series testing .
Application Details:
Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
Standard Features:
| Item | Specification |
| Outside dimension | 1300W×500D×1460Hmm |
| Chamber material | SUS#304 stainless steel |
| Temperature range | RT～70℃ |
| Temperature fluctuation | ±2℃ |
| Temperature control | PID SSR control |
| Humidity range: | ≥95%RH |
| Controller | Programmable controller, LCD touch screen |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
| Lamp power | 40W/Piece |
| Distance from sample to lamp | 50±2mm |
| Centre distance between the lamp | 70mm |
| Irradiance | 0.45~1.0W/m2 (optional) |
| UV lamps | Imported Atlas UV-B: 280-315nm (8pcs, 1600h lifetime) |
| Standard Specimen Size | 75×290mm (24pcs) or 75x150mm (48pcs), max. thickness 5mm |
| Testing time | 0～999H, adjustable |
| Protection system | Overload short circuit protection |
| Over temperature protection | |
| Water lacking protection | |
| Earth leakage protection | |
| Auto shut off protection |
Function
Meet Specifications
* Meet customer requirements
* Stay ahead of government regulations
Prevent Field Failures
* Improve quality and durability
* Enhance reputation
* Assure product performance
Gain a Competitive Edge
* Save on material costs
* Expand product lines
* Enter new markets
* Outrun the competition
