Rohs X-ray Fluorescence Machine

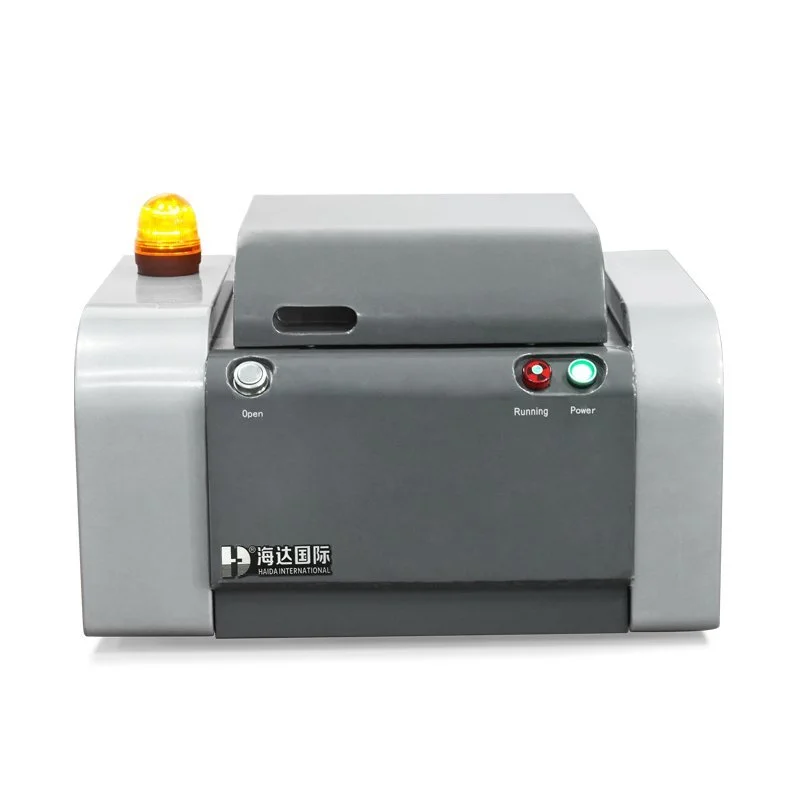

Unique Rohs Machine / Rohs X-ray Fluorescence Machine
Unique Rohs Machine is currently the world's smallest volume, identify the fastest, most functional, most accurate, RoHS and harmful elements of the reliability of identification (PMI) and validation of the multi-purpose X-ray fluorescence Analyzer.
The Rohs X-ray Fluorescence analyzer not only shortens the testing time, but also reduces the cost of analysis.
Unique Rohs Machine can complete the detection and analysis of harmful elements on site. Minimization brings about environmental pollution and health hazards. The analyzer ensures no radioactivity and a variety of selectable filters. Instant transmission and readings, the main components of which are a tiny X-ray tube and a high-resolution detector. In order to ensure the quality of analytical inspection, the test time can be completed in 20 seconds.
Usage
Lement measuring range is from Na to U, which can test Pb, Cd, Hg and PBB in the RoHS regulations; Br in PBDE; Cr in Cr6+; Cl and Br in the Halogen-free regulations. It can completely meet the control demand of RoHS/WEEE/Halogen-free.
Standard Features
|
Item |
Description |
|
Sample cavity size |
300*300*80mm |
|
Element range |
S-U |
|
Measuring scope |
1ppm-99.99% |
|
RoHS test limit |
Pb≤5ppm,Cd/Cr/Hg/Br≤2ppm,Cl≤50ppm |
|
Sample type |
Solid, powder and liquid |
|
Measuring time |
120-400s ( software auto adjustment ) |
|
Collimator |
Φ2mm,Φ5mm |
|
Filter sheet |
8 compound filter sheet switch automatically |
|
CCD observation |
1.30 Million pixel HD CCD |
|
Sample micro scope |
XY8mm |
|
Stability |
Repeatability error＜0.1% for multi-measurement |
|
Input power |
1-PH, AC220V～240V，50/60Hz |
|
Rated power |
350W |
|
Weight |
approx 48Kg |
|
Instrument size |
640(W)x450(D)x412(H)mm |
Application
RoHS Directive Control Products: Household Appliance/ Information Technology and Communications Equipment / Electric Tool /Toys and other equipment.
Halogen-free Directive Control Products: Products which use flame retardant containing Cl, Br and other elements as raw material.
RoHS Directive Control Software
