Environmental Stress Cracking Tester 1
Environmental Stress Cracking Tester 1

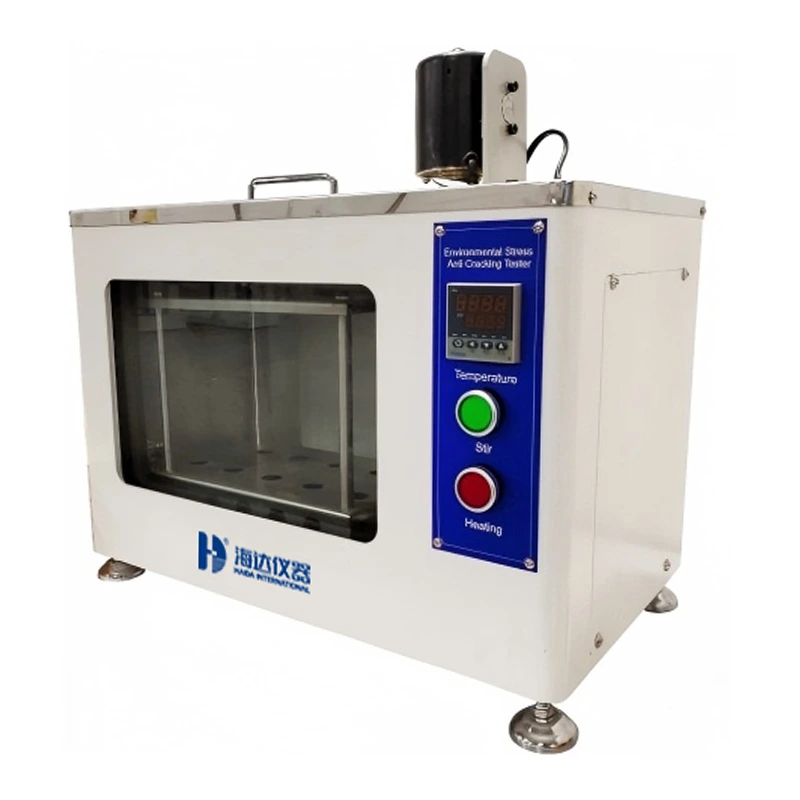

Environmental Stress Cracking Tester

It is used to determine of the susceptibility of ethylene plastics, as defined in terminology D883, to environmental stress-cracking when subjected to the conditions specified in ASTM D1693-01, under certain conditions of stress and in the presence of environments such as soaps, wetting agents, oils, or detergents, ethylene plastics may exhibit mechanical failure by cracking.

    oops...!

    no product data.

    Go to homepage

    Product Description

    Environmental Stress Cracking Tester is used to determine of the susceptibility of ethylene plastics, as defined in terminology D883, to environmental stress-cracking when subjected to the conditions specified in ASTM D1693-01, under certain conditions of stress and in the presence of environments such as soaps, wetting agents, oils, or detergents, ethylene plastics may exhibit mechanical failure by cracking.

    Bent specimens of the plastic, each having a controlled imperfection on one surface, are exposed to the action of a surface-active agent. The proportion of the total number of specimens that crack in a given time is observed.

    Environmental Stress Cracking Tester

    Product Specifications

    Model HD-R907
    Number of stations 50
    Volume 50L
    Constant temperature 50℃± 0.5℃ and 100℃± 0.5℃
    Sample size (38 × 13 × Thickness) mm
    Notch length 19±0.1
    Specimen holder Inner groove width 12mm
    Heat conducting medium Soft water (recommended below 90 ℃)
    Stator oil (above 90 ℃)
    Power  (220-15%-220+10%) VAC 50Hz 3kW
    Operating ambient temperature 10℃-35℃
    Host size(L*W*H) 900* 450*480mm
    Host weight  About 30kg
    Nicking device
    Blade length 19±0.1mm
    Blade thickness 0.23±0.03mm
    Blade angle 14°±2°
    Stroke of nicking device (0-13)mm
    Maximum depth of notch 3.5mm
    Unit size(L*W*H) 300*120*300mm
    Device weight About 12kg

    Products Advantages

    Environmental Stress Cracking Tester 3
    Best Quality
    We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.
    Environmental Stress Cracking Tester 4
    Reasonable Prices
    We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.
    Environmental Stress Cracking Tester 5
    QC Team
    We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.
    book
    High-End Look
    When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

    Product Characteristics

    1. High processing precision and fast speed.

    2. Process multiple splines at one time. For example, processing dumbbells, rectangles, and circles on the same piece of material can be done in one process.

    3. It has the function of material water cooling. For materials that generate heat and melt during processing, cooling water can be used for cooling.

    4. Processing compensation function. It can compensate for the errors caused by the thermal expansion of the material and the compression of the mechanical processing

    Fast and accurate: test can be completed in 10-160S
    This machine is applicable to specimens, whose hardness range is from 30 IRHD to 85 IRHD. Equipped with devices for elastic materials and foaming materials to meet different testing requirements.
    radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)
    It adopts an arc dial display with 100 equal parts, owning higher accuracy relative to vertical scale.
    radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)
    It can display the maximum rebound value and reset the pointer manually after the test is completed.
    yuandian
    The clamping thickness of the test piece is adjustable within the range, which is capable of clamping materials in different thicknesses.
    yuandian
    The Simple structure facilitates easy operation and convenient maintenance.
