Paper Colour Measurement Spectrophotometer
Benchtop spectrophotometers and portable spectrophotometers provide simple and accurate solutions for measuring the color of paper and paper products, enabling organizations to control and optimize production and improve product quality.
The Paper Colour Measurement Spectrophotometer is designed specifically for the pulp and paper industry to measure brightness, opacity, fluorescence, color, whiteness and hue in full compliance with multiple international and national standards such as ISO, SCAN, DIN, TAPPI, CPPA and AFNOR. Our team can help you specify the solution that best suits your needs and demonstrate fast and powerful templates for WI, YI, etc. to speed up and simplify reporting and analysis.

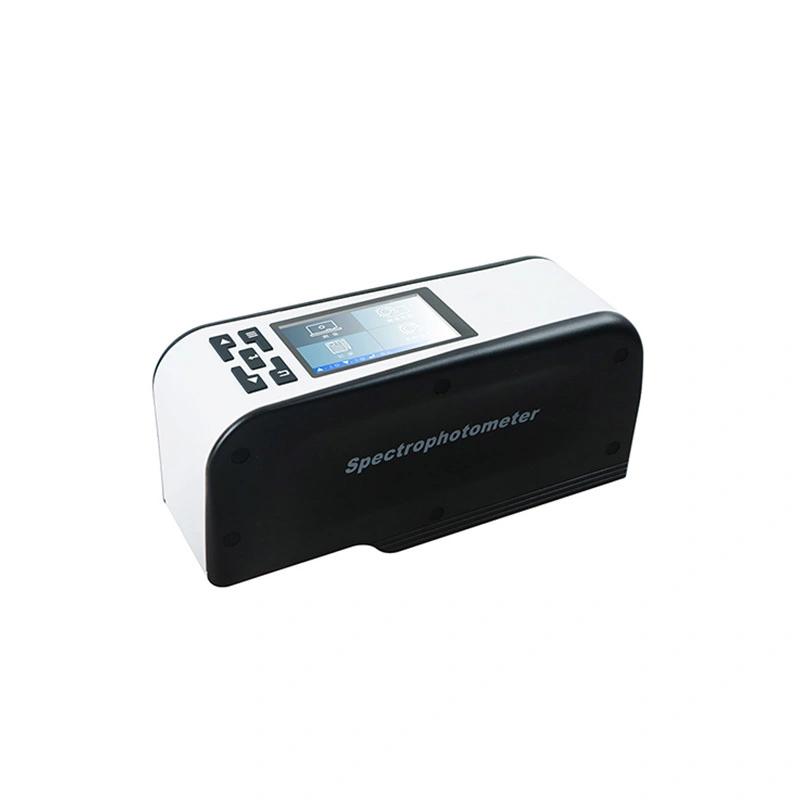

Spectrophotometer
Products description:
The spectrophotometer is based on the International Lighting Commission CIE relevant standards, the national standard R & D and production of professional spectrophotometer. Using a new import of key components, well-designed, with accurate and s operation, easy to understand, economical and practical and so on.
The spectrophotometer applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes,
leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc., as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc.
Technical parameters:
Model | Switchable Caliber |
Geometric Conditions | CIE Recommended lighting reception method : d/8 |
Color Space | CIEL*a*b*,CIEL*C*h,CIEL*u*v*,CIEXYZ,Yxy,Reflectivity,CMYK,YI,Yellowness,Ganz,R457 Whiteness,Taube,Whiteness,z Whiteness,sRGB |
Standard Light Source | A,C,D50,D65,D75,F1,F2(CWF),F3,F4,F5,F6,F7,F8,F9,F10,F11(TL84) F12(U30) |
Light Source | Combinatorial LED |
Color Diff. Formula | △E*ab,△E*Ch,△E*uv, △E*Hunter,△E*cmc(2:1),△E*cmc(1:1),△E*94,△E*00,△E*sRGB,△E*BFD,△E*FMCII |
Measuring Caliber | Facula 8mm(Caliber Φ11mm) / Facula 4mm(Caliber Φ6mm) Switchable、 Φ16mm optional |
SCI/SCE | SCI/SCE |
Sensor Array | Line array CMOS@256 pixels |
Spectral Way | Concave diffraction grating |
Observer | CIE10°(1964)、CIE2°(1931) |
Wavelength coverage | 400nm~700nm |
Wavelength interval | 10nm |
Measuring interval | 2.5 Second Reflectance range |
Reflectance range | 0%-200% |
Repeated accuracy | △E＜0.07 （take the deviation average after 30 times measuring the whiteboard， 10 Second interval） |
Table Difference | △E＜0.4(Measure the RAL 12-color blocks) |
Light source life | More than 50,000 hours |
Battery power | Measuring more than 10000 times |
Display screen | TFT true color 2.8inch@(16:9) |
Data storage capacity | Storage Standard 100 groups, Sample 16,000 groups |
Operating temperature temperature | 0℃-40℃(32℉-104℉) |
Storage temperature | -20℃-50℃(-4℉-122℉) |
Working humidity | Relative humidity less than 85%,without condensation |
Weight | 340g |
Size | 180x76x60mm |
Size of exterior package package | 400x240x340mm |
Standard accessories | Power adapter, standard white board, standard black cavity, lithium battery, specification, PC software |
Optional accessories | Software(Advanced Version), Micro printer, Locating block |
