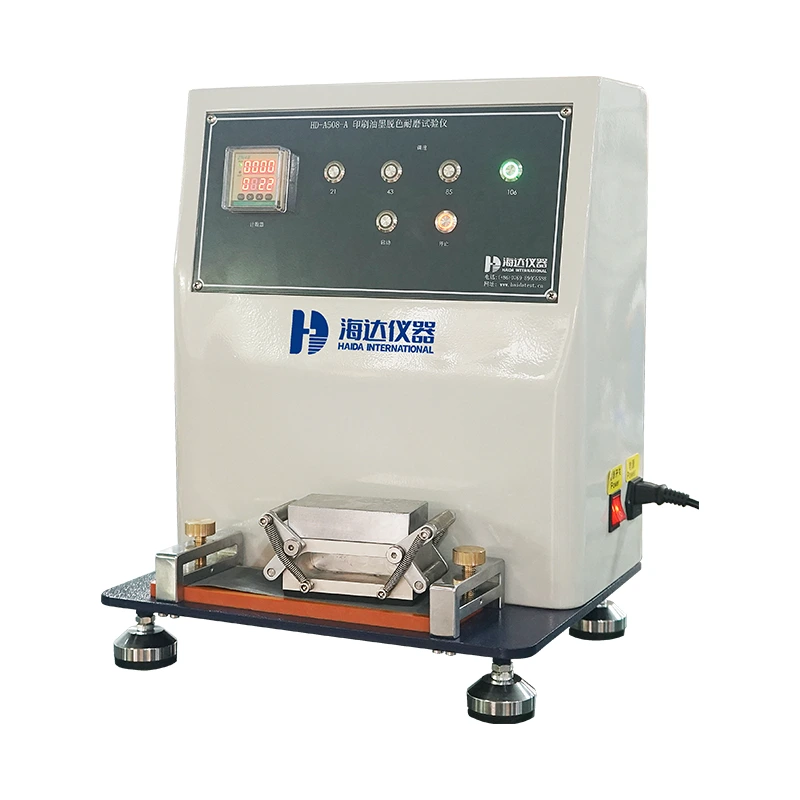

ASTM D5264/TAPPI T830 Ink rub resistance tester
1. Application:
HD-A508-A Ink rub resistance tester is is mainly applied to test the abrasion resistance of printing ink layer of printed matter. The standard size rubbing paper is wrapped in the rubbing head, and the surface of the specimen is rubbed with the specified speed and pressure, etc., and the ink layer of the specimen is observed to come off.
2. Design criteria: This test instrument conforms to the standard: ASTM D5264-98, TAPPI T830
3. Technical parameters:
Specifications | HD-A508-A |
Display | LED Display |
Test piece area | 250 x 80mm |
Rub Pressure | 908g (2lb);1810g (4lb) |
Rub Speed | (43±1) times/min ( 21,43,85, 106 times/min, adjustable) |
Rub Times | 0~9999 times, auto-shutdown |
Friction stroke | 55mm (displacement of friction body center) |
Friction area | 51x102mm (L*W) |
Power Supply | AC 220V 50/60HZ 60W |
Instrument Dimension(L*W*H) | 360*290*450mm |
Net Weight | 30 kg |
