Short Span Crush Test Manchine
5.0
Model:
HD-A841
Price:
FOB, CIF
Payment:
L/C, D/P, T/T
Package:
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery:
15 days after order.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

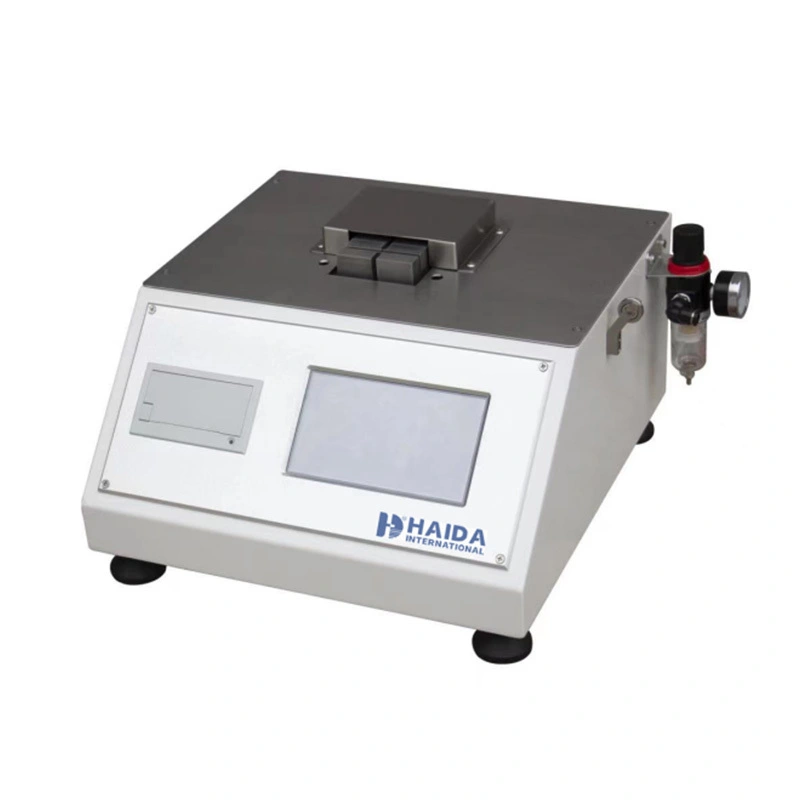

Short Span Crush Test Manchine
Specifications:
SCT Compressive Strength Tester measures the compressive strength of liner and fluting according to the SCT method. Compressive strength determines the stacking ability of corrugated boxes. The aim is to produce strong boxes, and use a minimum of raw material.
This tester is used to do short span compression test for paper or paperboard. It is with LCD screen and has data process function and with built-in printer.
Feature:
- Precise Measurement: The Haida HD-A841 Corrugated Boxes Paper And Board Compressive Strength SCT Compression Tester offers a measuring range of 500N, ensuring accurate results for compressive strength testing. This feature allows for precise measurement and evaluation of the compressive strength of various materials.
- Efficient Testing Speed: With a test speed of 3 ± 0.1 mm/min, this tester enables fast and efficient testing processes, reducing the overall testing time and increasing productivity.
- High Accuracy: The device boasts an accuracy of 0.15n and 0.01kn/m, guaranteeing reliable and precise results for compressive strength testing.
- Customization Options: Our SCT Compression Tester offers customized support through OEM and ODM services, allowing for tailored solutions to meet the specific needs of our valued customers.
- Warranty and Quality Assurance: The product comes with a 1-year warranty, providing peace of mind and assurance of the product's quality and performance.
Specifications:
Item | Description |
Measuring Range | 500N |
Test Speed | 3±0.1 mm/min |
Accuracy | 0.15N, 0.01kN/m |
Sample Width | 15±0.1 mm |
Compression Distance | (0.70±0.05)mm |
Clamping Length | 30±0.5 mm |
Power | Single phase, AC 220V, 50HZ (can be appointed) |
Dimension (L*H*W) | 530*560*330mm; 51kg (approx.) |
Air Source Supply | 0.5MPa |
SCT Sample Cutter | |
Specimen Size(LxW) | 150X15mm |
Cutting Thickness | < 0.1 mm |
