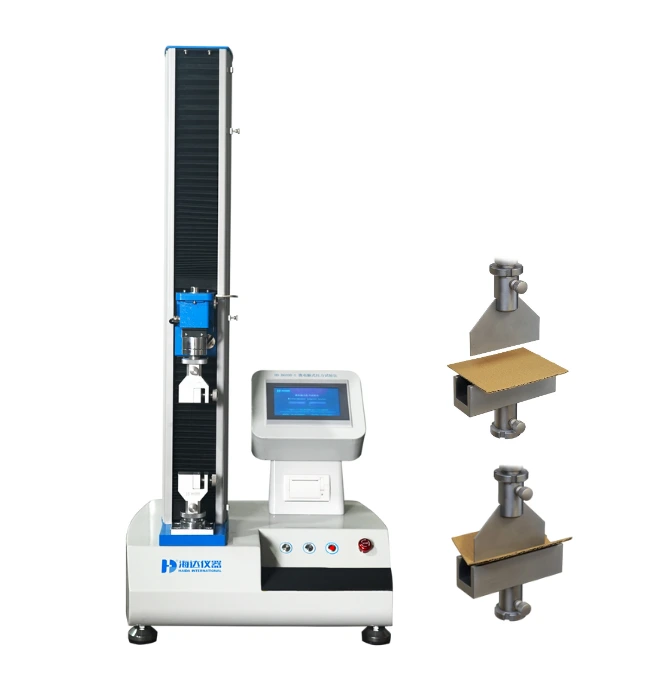

Score quality test machine
1. Application:
This machine is used to evaluate the quality of scores in corrugated shippers, by measuring the force required to bend a scored panel 90°and comparing the results to the force required to bend a non-scored section of same materials. This test can help determine the suitability of paper or board for packaging and other applications where flexibility is important.
2. Design criteria: This test instrument conforms to the standard: TAPPI T829
3. Technical parameters:
Test items | Indentation performance test |
Motor | 400w servo motor |
Control method | Touch screen control |
Display method | Touch screen display |
Data output | Thermal printer output |
Screw | Ball screw rod |
Adjustable speed | 1~500mm/min |
Maximum stroke | 900mm (excluding clamp) |
Load resolution | 1/250,000 |
Load accuracy | ≤±1% |
Effective depth | The distance from the center of the connector to the dust cover is 60mm |
Effective test force value range | 0.5N~2kN |
Unit switching | gf/kgf/N/kN/LBf/T |
Dimensions | Appox. 580mm*550mm*1250mm(L×W×H) |
Weight | Appox. 70kg |
Power | 1∮ AC 220V |
Overall machine power | Appox. 500W |
Fixture | Score quality test fixture |
