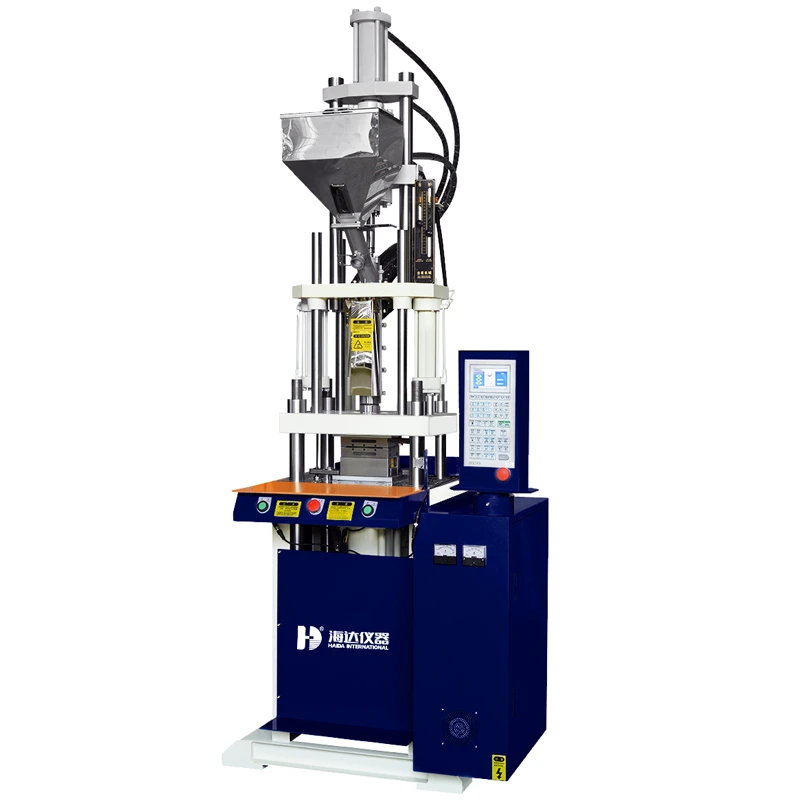

Sampling Injection Molding Machine 1
Sampling Injection Molding Machine 1

Sampling Injection Molding Machine

Vertical injection molding machine is the right machine for pressing, molding and encapsulation injection in one process.

    oops...!

    no product data.

    Go to homepage

    Product Description

    Vertical injection molding machine is the right machine for pressing, molding and encapsulation injection in one process. Its precise closed side with high template parallelism ensures accurate results. With this injection molding unit, you can functionalize molded components in the same process.

    Sampling Injection Molding Machine

    Product Specifications

    Model HD-R917
     Injection Unit Screw Diameter mm 22 28
    Injection Pressure kgf/cm² 1625 1004
    Injection Capacity cm³ 40 65
    Injection Weight(P.S) gr 39 63
    Injection Rate oz 1.4 2.2
    Injection Rate cc/s 28 45
    Screw Speed r.p.m 0~150
    Screw Stroke mm 90
    Nozzle Stroke mm 120
    Nozzle Contact Force tf 2.4
     Clamping Unit Clamping System ...... Hydraulic
    Clamping Force tf 18
    Clamping Stroke mm 200
    Max.Mould Space mm 240
    Min.Mould Height mm 40
    Overall Size Of Platens(HXV) mm 420*250
    Space Between Columns(HXV) mm 310*130
    Space Between Columns (HXV) tf 0.7
    Hydraulic Ejector Force mm 28
     Electrical Equipment & General Drive Motor kw 3.7(5HP)
    Heater kw 2.0
    Dimension of Machine(LXWXH) m 1.2*0.9*2.5
    Weight Of Machine t 0.65
    Shipping Size(LXWXH) m 1.4*1.1*2.25
    Shipping Weight t 0.8
    Oil Tank Capacity L 90
    Cooling Water l/hr 400~600

    Products Advantages

    Sampling Injection Molding Machine 3
    Best Quality
    We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.
    Sampling Injection Molding Machine 4
    Reasonable Prices
    We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.
    Sampling Injection Molding Machine 5
    QC Team
    We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.
    book
    High-End Look
    When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

    Product Characteristics

    Sample range: PP, PC, ABS, polyethylene terephthalate (plastic), PVC, FRPP/PVC, random polypropylene, EVA, HDPE, MLLDPE, EPS, PA, polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, polylactic acid.

    Fast and accurate: test can be completed in 10-160S
    Ergonomic operation thanks to a variety of different clamping systems
    radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)
    Short cycle times and high productivity due to various machine versions with rotary and slide tables
    radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)
    Servo-electric rotary table for precise and reliable machining of precision inserts
    yuandian
    Simple integration into automated production lines
    yuandian
    Particularly space-saving thanks to compact design
