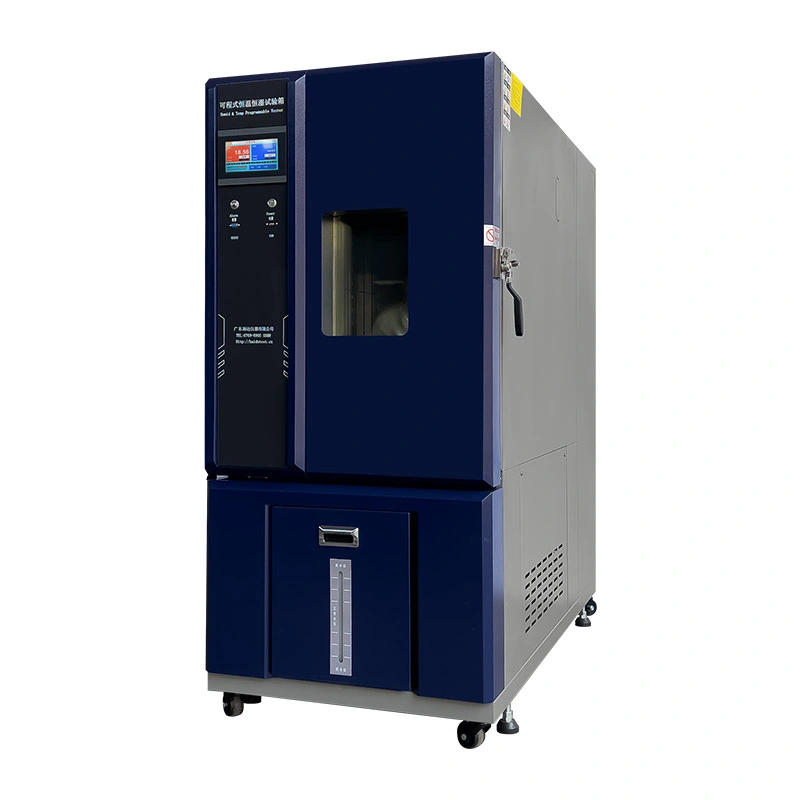

Rubber Temperature Humidity Test Chamber 1

Rubber Temperature Humidity Test Chamber 2

Rubber Temperature Humidity Test Chamber

Model:

HD-E702-100-4

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Delivery:

15 days after order.

Inquiry

Write a Review

Rubber Temperature Humidity Test Chamber

Applications

Rubber Temperature Humidity Test Chamber main to simulate test environment with different temperature and humidity for the plastic and rubber materials. And temperature & Humidity Test chamber do the Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

The Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation.Uncover test unit weakness in a short-term test with accelerated time effect.

Standard Features

Item	Specification
Internal dimension(WDH)	400500500mm
External dimension(WDH)	60010801380mm
Temperature range	-40~+150℃
Temperature Accuracy	±1℃
Humidity range	20~98%R.H. (Refer Image below)
Humidity accuracy	±3%R.H
Cooling speed	1℃/min in average (without loading)
Heating speed	3℃/min in average (without loading)
Internal chamber material	SUS#304 stainless steel, mirror finished
External chamber material	Stainless steel with paint spray
Cooling method	Air cooling
Controller	LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test
Insulation material	50mm high density rigid Polyurethane foam
Heater	Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor	France Tecumseh compressor
Lighting	Heat resistance
Temperature sensor	PT-100 dry and wet bulb sensor
Observation window	Tempered glass
Testing hole	Diameter 50mm, for cable routing
Sample tray	SUS#304 stainless steel, 2pcs
Safety protection device	Protection for leakage/Over-temperature/Compressor overvoltage and overload/Heater short circuit/Water shortage

Rubber and Plastic Temperature Humidity Test Chamber

Chamber Features

Chamber Design Features

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain

Programmable Controller

1. PIC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output

Temp.& Humidity Range:

Rubber Temperature Humidity Test Chamber 4
