PX9K High Pressure Water Spray Test Chamber

EQUIPMENT STRUCTURE

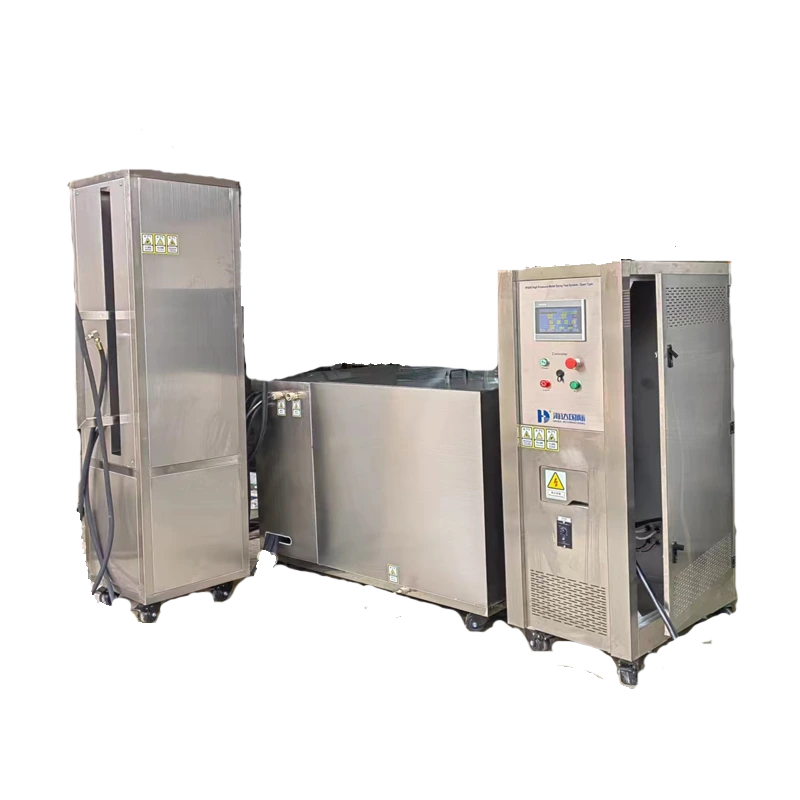

1.This equipment is divided into upper, lower, right three parts, the upper part of the work area (spray area and turntable), the right side is the electrical control cabinet, water supply tank. Selection of high-quality materials, accessories are stainless steel material production, reasonable design, durable. High-pressure water spray components / work rotary table / electrical controller part of the composition.

2.The sample rack is designed to load 20 kg, 360 degrees rotation in the horizontal direction. Transmission device can be set directly in the touch screen instrumentation speed, controlled by the PLC controller, easy to operate, to avoid the past similar equipment manually adjusted by feel the inaccuracy and cumbersome. The lower part of the turntable is equipped with a conductive slip ring, the sample can be energized during the test: the specimen can be connected to an external DC 10A, 10~24V energized power supply without affecting the turntable rotation, the voltage drop <2V.

3.The equipment is equipped with a large enough water tank for water spraying. The suction motor pressurizes the water in the water tank into the pipeline, and through the adjustment of the pressure relief valve, the specified flow rate and pressure are maintained and sprayed out from the nozzle. Water pump for high-pressure piston pumps, nozzles for the import of atomized fan nozzles.

4.Flow meter: electromagnetic flow meter, electromagnetic flow sensor and electromagnetic flow converter, which is based on Faraday electromagnetic flow induction principle, can be used to measure the flow of the test water flow, can be realized on the flow of control, regulation, display and accumulation. Through the converter output 4 ~ 20mADC signal, connected with the central controller, subject to its control, and display.

TECHNICAL PARAMETER

Items	Specification
Dimension（WHD）	165016501400mm
Nozzle Angle	0°;30°;60°;90°
Distance	100-150mm
Number of spray holes	4
Spray time	30 seconds/Each position; 4 angles total 120s (adjustable)
Flow rate	14~16 L / min
Spray pressure	8000-10000kpa（81.5-101.9kg/cm2）
Water temperature	RT~85°/± 5°C
Ambient temperature	5℃~＋30℃ ≤85％RH
Test stand dimension	Φ400mm（height adjustable）
Rotating speed of test bench	5±1 r/min （Adjustable）
Test bench load	≤20kg
Running time control	1min~9999min(Adjustable)
Controller	7 "Kunlun Tongtai man-machine and PLC or higher industrial control element touch screen
Nozzle material	Stainless Steel 304
Sprinkler unit	Italian high-pressure pump;solenoid valve ;4 nozzles
Water tank	For high-pressure water flushing 100L can be heated to 90°C; with Automatic water refill function.
Electronic flow meter	Real-time display of water spray flow (controller direct display), cleaning-free; high temperature and high pressure resistant
Protection function	short circuit, over temperature, water shortage, motor overheating, over current protection
Power supply	AC380V 50Hz
Test standard	IEC60529; ISO16750-1; ISO20653; DIN40050-9
