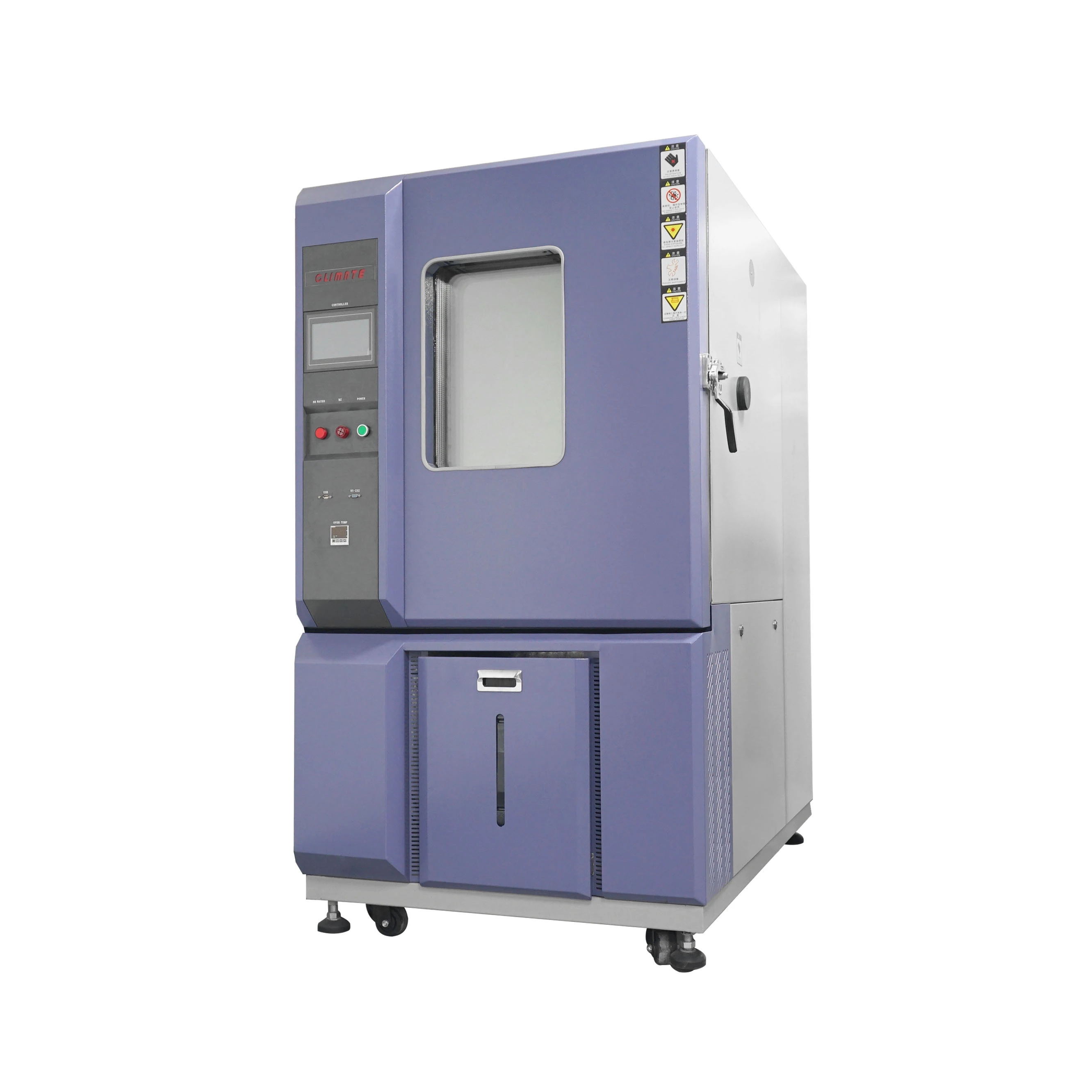

408L Climate Chamber

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-E702-408

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

Programmable Climate Chamber

408L Climate Chamber 2 Climate Chamber Video 408L Climate Chamber 3 Climate Chamber Brochure

Climate Chamber Description

Quiet operations type climate chamber is a high performance and quiet operations (68dba) ability for the products to do the climate test--constant temperature and humidity test ,moisture test,dry test,cold test ,hot resistance....the latest the programmable control temperature and humidity systems made the cyclic test by set difference parameter.France Tecumseh compressor,50mm high density rigid Polyurethane foam and humanized Industrial Design reduces work noise.

Advantage

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall
3. Tempered glass observation window

4.Temperature range： -70~+150℃

5.Humidity range ：20~98%RH (Refer Image below)

6.Internal dimension (W*D*H) 600*800*850mm

7.External dimension (W*D*H) 800*1380*1730mm

Applications

1. Climate chamber simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: temperature test ,humidity test, holding test, cooling-off test, heating-up test, moistening test and drying test…

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect

The Space

The space of the climate chamber can be customized.we can supply the inner box size:100L/150L/225L/408L/800L/1000L .Actually the climate chamber inner has the function of adjustment,The specimen holder can be fixed with different height positions.so difference size sample can be fit.

Application industry (not limited to the following)

1. electronic, electrical, mobile, data
2. communication, instrumentation, vehicle parts
3. Plastic products, metal, food
4. Chemistry, building materials, medical treatment
5. Space and other products to detect the quality of use

Standard Features

Internal dimension (W*D*H) : 600*800*850mm
External dimension (W*D*H) : 800*1380*1730mm
Temperature range: -70~+150℃
Temperature fluctuation: ±0.5℃
Temperature uniformity:2℃
Humidity range: 20~98%RH (Refer Image below)
Humidity fluctuation: ±2.5%RH
Humidity uniformity: 3%RH
Cooling speed:1℃/min in average (without loading)
Heating speed: 3℃/min in average (without loading)
Internal chamber material: SUS#304 stainless steel, mirror finished
External chamber: material Stainless steel
Cooling method :Air cooling
Controller: LCD touch screen, programmable control temperature and
humidity,Can set different parameter for cyclic test
Insulation material: 50mm high density rigid Polyurethane foam
Heater Explosion-proof type :SUS#304 stainless steel fins radiator pipe
heater
Compressor: France Tecumseh compressor
Temperature sensor :PT-100 dry and wet bulb sensor
Observation window: Tempered glass
Testing hole Diameter: 50mm, for cable routing
Sample tray: SUS#304 stainless steel, 2pcs

Safety Protection Device:

1.Protection for leakage
2.Over-temperature
3.Compressor overvoltage and overload
4.Heater short circuit
5.Water shortage

Chamber Design Features:

1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain

Programmable Controller

1. PLC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output
