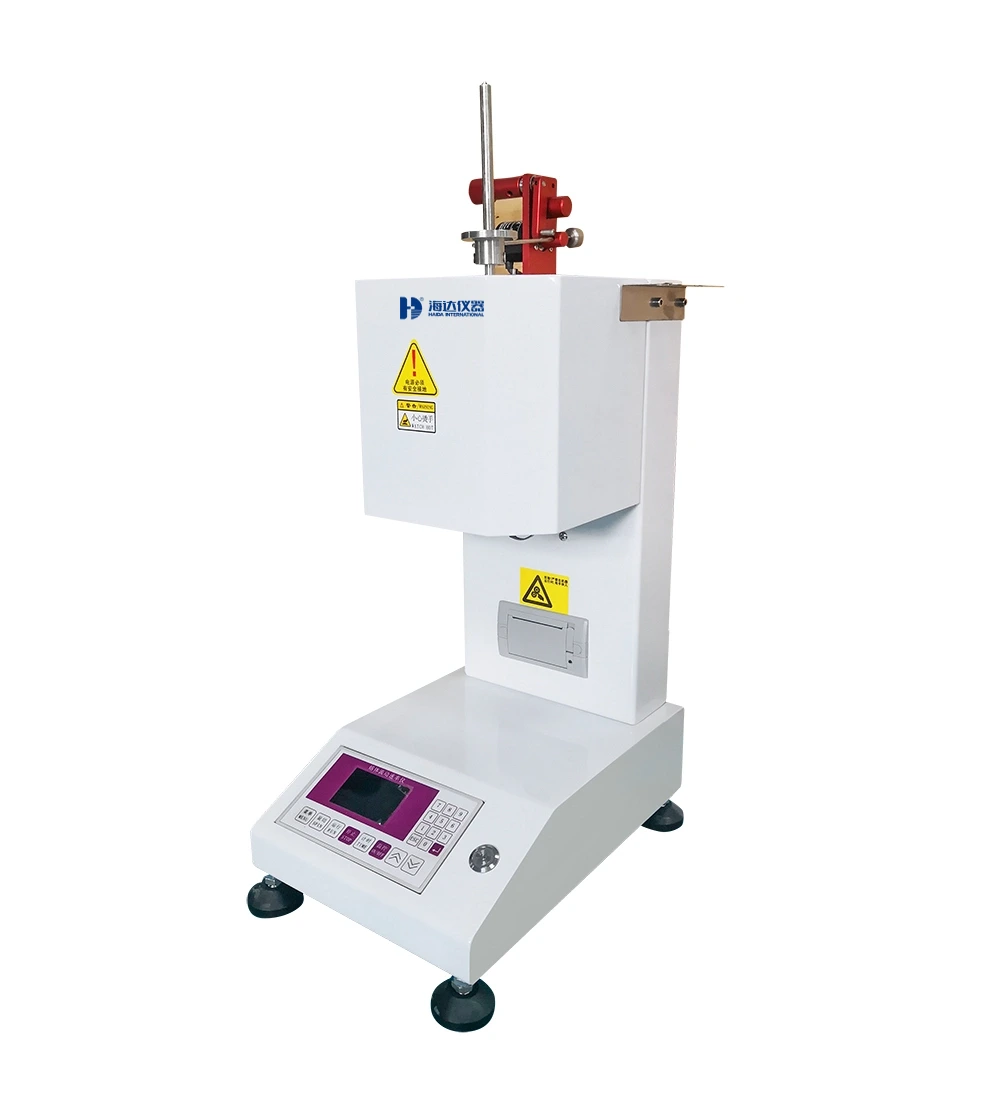

Melt Flow Index Tester
Melt Flow Index Tester
Product description:
Melt Flow Index Tester is used to test the flowability of thermoplastic polymer under high temperature, such as polyethylene, polypropylene, pom, ABS resin, polycarbonate, nylon fluorine and other plastic polymers. The automatic temperature control methods of the machine three kinds of blanking ways, manual, timing and automatic control according to operation method, which can realize melt-mass flow rate (MFR) and melt-volume flow rate (MVR) two test methods.
Application materials:
Melt Flow Index tester is used to determine the MFR value of melt flow rate in the viscous flow state of various polymers, it is applicable to the high melting temperature of polycarbonate, poly-aryl sulfone, fluorine plastic, nylon and other engineering plastics, also applicable to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, poly (POM), polycarbonate (PC) Resin, such as low melting temperature of plastic testing, widely used in plastic production, plastic products, petrochemical and other industries.
Application test standard:
ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)...
Standard features:
Testing range | 0.1-800.00g/10min (MFR); 0.1-800.00 cm3/10min(MVR) |
Temperature range | 0°C-450°C |
Controlling Accuracy | ±0.2°C |
Timing accuracy | 0.1s |
Displacement accuracy | 0.01mm |
Standard loads | 325g, 875g, 960g, 1200g, 1640g, 2500g, 4100, 5000g & 5000g |
Combination load | 325g, 1200g, 2160g, 3800g, 5000g, 7160g, 10000g, 21600g |
Material cutting method | Manual, timing and automatic cutting |
Barrel diameter | Φ2.095±0.005mm |
Outlet length | 8.000±0.025mm |
Charging barrel diameter | Φ9.550±0.025mm |
Weight accuracy | ±0.5% |
Power supply voltage | AC220V±10% 50HZ |
Accessory | One set computer& software, one tool box, one piece operation video CD and one piece English manual |
Design standard | GB/T3682-2000；ISO1133-97、ASTM1238 |
Machine structure
Test Condition
Related standards
About Film/Plastic Film Materials:
ASTM D882: Tensile Test
ASTM F1306: Puncture Test
ASTM D1938: Trouser Tear Test
ASTM D2732: Thermal Shrinkage Test
ASTM D1709, ISO 7765-1: Free-Falling Dart Method
ASTM D1894: Static and Kinetic Coefficients of Friction
ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test
About Plastic& Plastic Pipe Materials:
ISO 180: Izod Impact Test
ISO 9966: Ring Stiffness Test
ISO 179: Charpy Impact Test
ISO 4892: Weathering Aging Test
ASTM D3163: Plastic Lap-Shear Test
ISO 4422, ISO 3127: Pipe Impact Test
ASTM D4565, ISO 11357, EN 728: DSC/OIT
ISO 75: Heat Deflection Temperature (HDT)
ASTM D1598: Hydrostatic Pressure and Burst Test
ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
ISO 306, ASTM D1525: Vicat Softening Temperature (VST)
ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test
About Rubber Materials:
ASTM D412, ISO 37-2005, JIS K6251,DIN 53504-2009: Tensile Strength & Elongation Test
ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
ASTM D624-00, ISO 34-1: Tearing strength Test
ASTM D395-03, ISO 815-1: Compression Set Test
ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test
ISO 2781(Method A): Density Test
ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
ASTM D1646: Mooney Viscometer
